Toyota RAV4 J/L
2000-05 → 2005-11 · chassis ACA2#,ZCA2# · catalogue 662120 · Japan
Discontinued model
Data version 2006-07

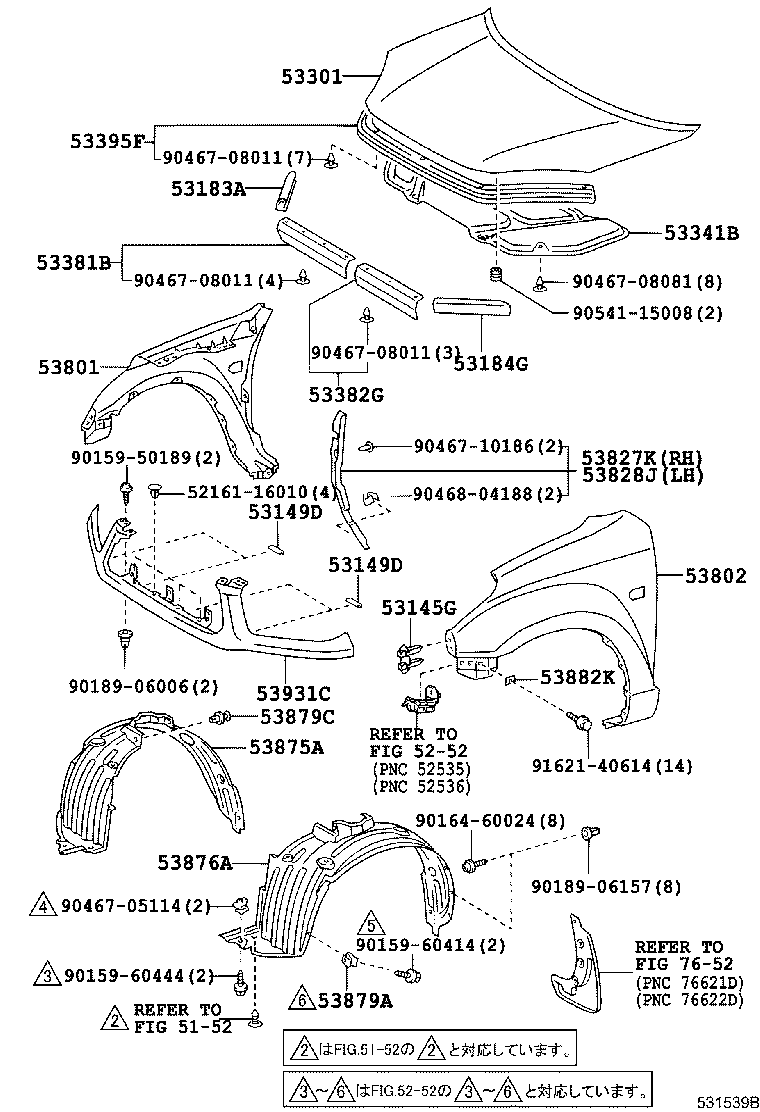

Hood & Front Fender
19 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 53145G | Clip, Radiator Grille |
| 53149D | Protector, Radiator Grille, NO.2 |
| 53183A | Seal, Headlamp Cover, RH |
| 53184G | Seal, Headlamp Cover, LH |
| 53301 | Hood Sub-assy |
| 53341B | Insulator, Hood |
| 53381B | Seal, Hood TO Radiator Support, RH |
| 53382G | Seal, Hood TO Radiator Support, LH |
| 53395F | Seal, Hood TO Radiator Grille |
| 53801 | Fender Sub-assy, Front RH |
| 53802 | Fender Sub-assy, Front LH |
| 53827K | Protector, Front Fender Side Panel, RH |
| 53828J | Protector, Front Fender Side Panel, LH |
| 53875A | Liner, Front Fender, RH |
| 53876A | Liner, Front Fender, LH |
| 53879A | Retainer, Front Fender Liner |
| 53879C | Retainer, Front Fender Liner |
| 53882K | Seal, Front Fender |
| 53931C | Panel, Front End |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
