Side Member

83 part groups · 4 illustrations

Illustrations

611199I 2000-05 → 2003-07

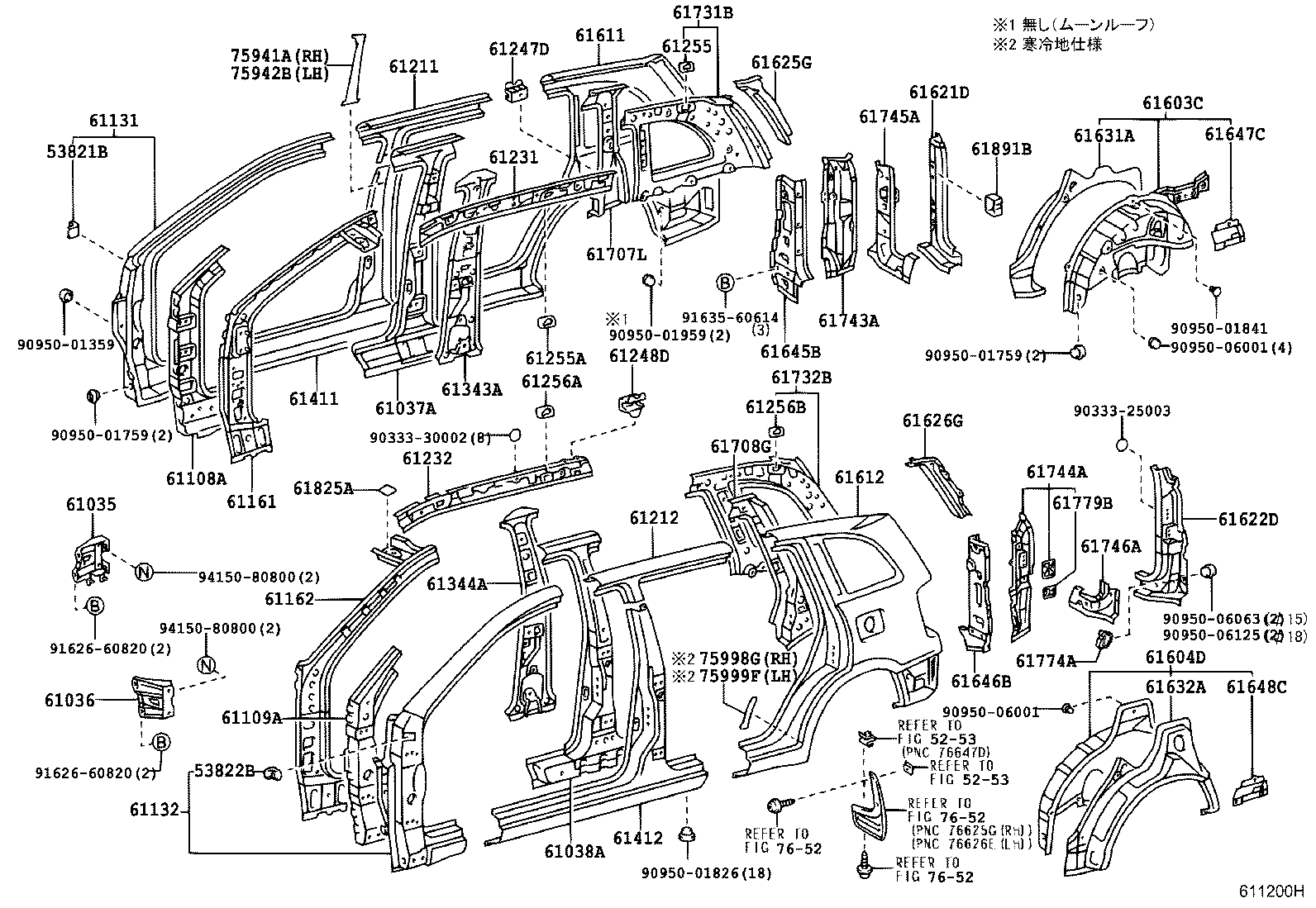

611200H 2000-05 → 2003-07

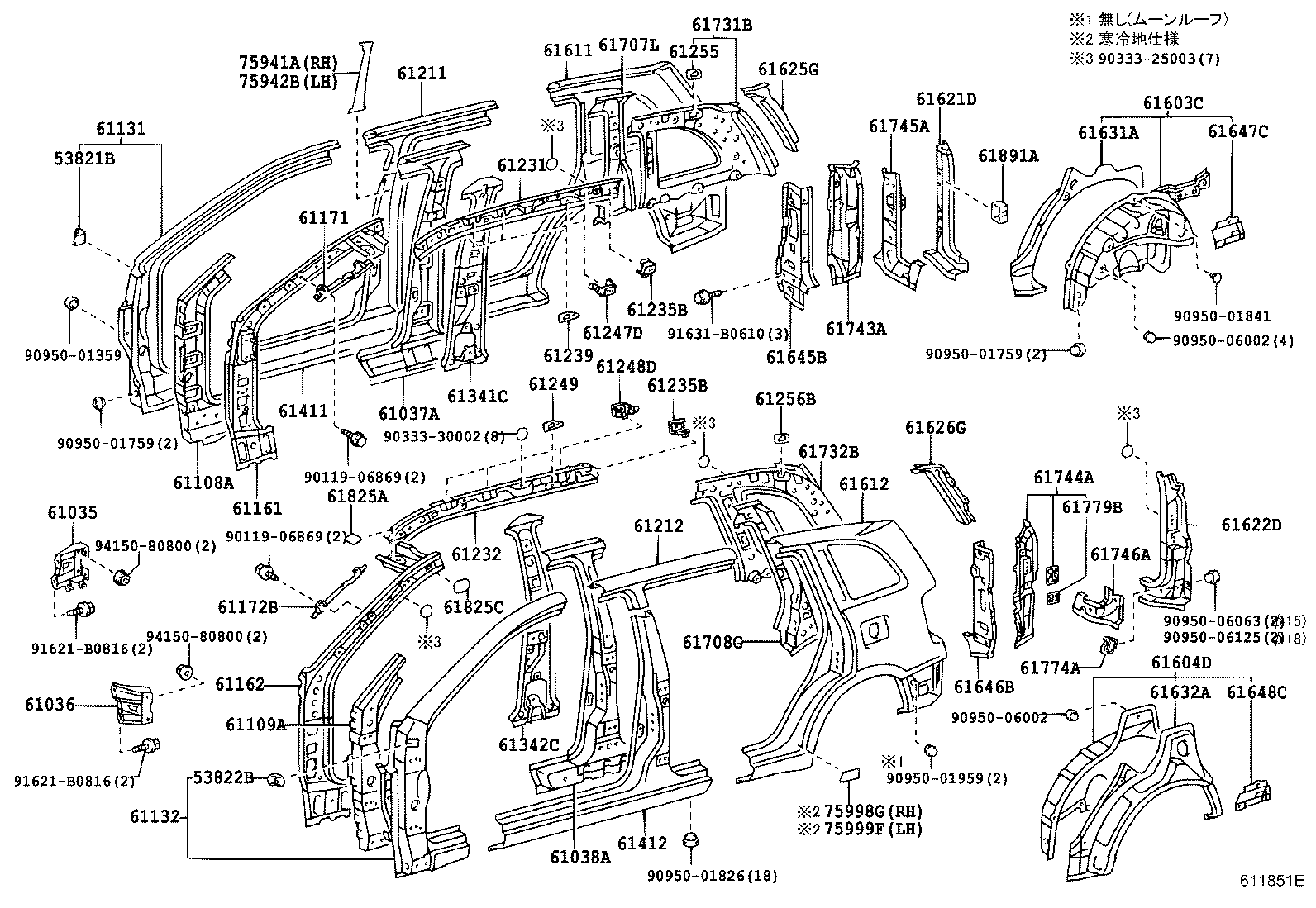

611853E 2003-07 → —

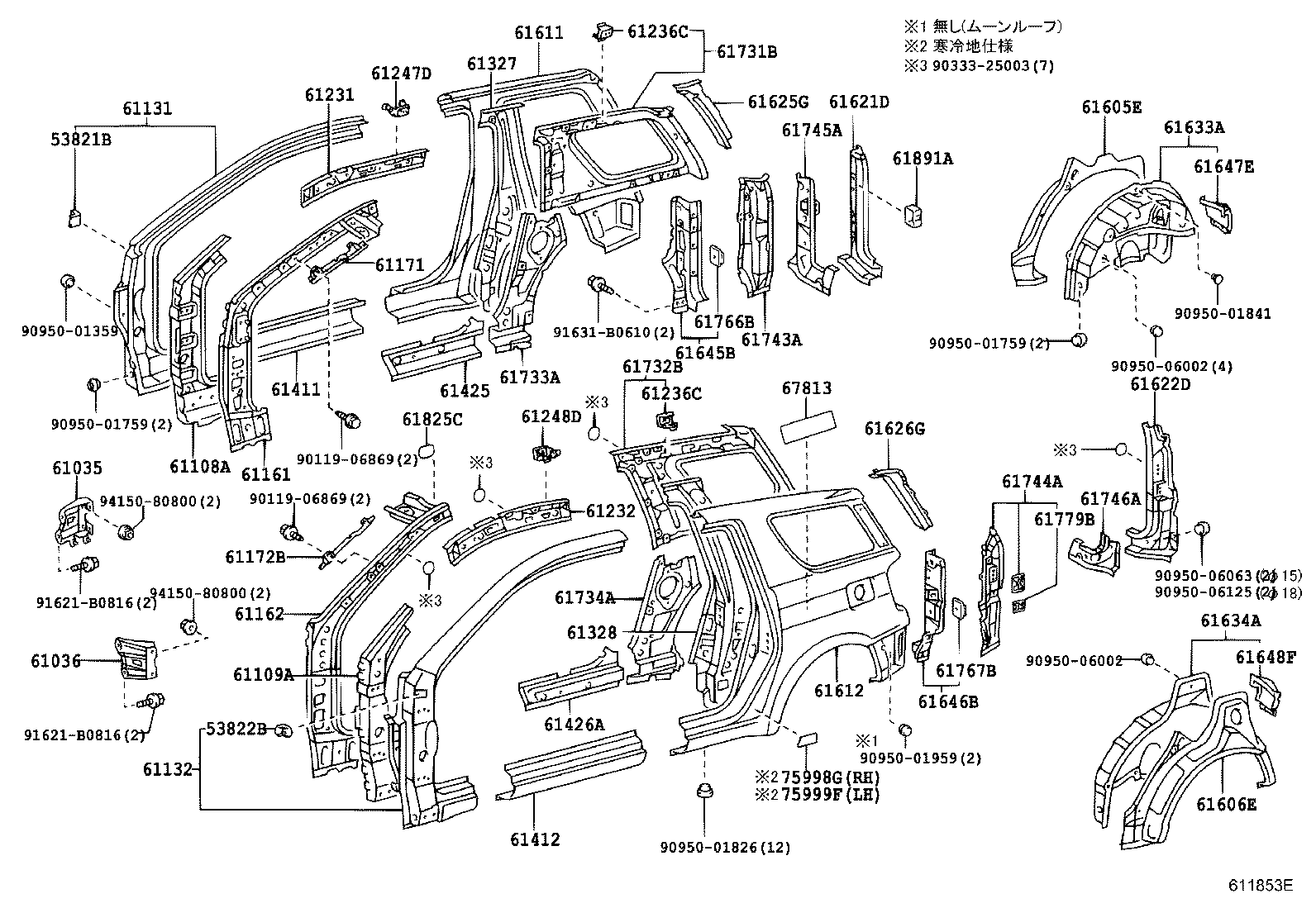

611851E 2003-07 → —

Part groups

PNC	Description
53821B	Bracket, Front Fender, Rear RH
53822B	Bracket, Front Fender, Rear LH
61035	Bracket Sub-assy, Instrument Panel TO Cowl Side, RH
61036	Bracket Sub-assy, Instrument Panel TO Cowl Side, LH
61037A	Reinforcement Sub-assy, Center Body Pillar, RH
61038A	Reinforcement Sub-assy, Center Body Pillar, LH
61108A	Reinforce Sub-assy, Front Body Pillar, Lower RH
61109A	Reinforce Sub-assy, Front Body Pillar, Lower LH
61131	Pillar, Front Body, Upper Outer RH
61132	Pillar, Front Body, Upper Outer LH
61161	Pillar, Front Body, Upper Inner RH
61162	Pillar, Front Body, Upper Inner LH
61171	Retainer, Front Pillar, Lower Inner RH
61172B	Retainer, Front Pillar, Lower Inner LH
61211	Rail, Roof Side, Outer RH
61212	Rail, Roof Side, Outer LH
61231	Rail, Roof Side, Inner RH
61232	Rail, Roof Side, Inner LH
61235B	Bracket, Assist Grip
61236C	Bracket, Assist Grip
61239	Retainer, Roof Side Rail Outer, RH
61247D	Bracket, Assist Grip, RH
61247E	Bracket, Assist Grip, NO.4 RH
61248D	Bracket, Assist Grip, LH
61248E	Bracket, Assist Grip, NO.4 RH
61249	Retainer, Roof Side Rail, Outer LH
61255	Plate, Roof Side Rail, Outer RH
61255A	Plate, Roof Side Rail, Outer RH
61256A	Plate, Roof Side Rail, Outer LH
61256B	Plate, Roof Side Rail, Outer LH
61327	Reinforcement, Center Body Pillar, Outer RH
61328	Reinforcement, Center Body Pillar, Outer LH
61341C	Pillar, Center Body, Inner Upper RH
61342C	Pillar, Center Body, Inner Upper LH
61343A	Pillar, Center Body, Inner RH
61344A	Pillar, Center Body, Inner LH
61411	Panel, Rocker, Outer RH
61412	Panel, Rocker, Outer LH
61425	Reinforcement, Rocker Panel, NO.4 RH
61426A	Reinforcement, Rocker Panel, NO.4 LH
61603C	Panel Sub-assy, Quarter Wheel House, RH
61604D	Panel Sub-assy, Quarter Wheel House, LH
61605E	Panel, Quarter, RH
61606E	Panel, Quarter, LH
61611	Panel, Quarter, RH
61612	Panel, Quarter, LH
61621D	Trough, Back Door Opening, RH
61622D	Trough, Back Door Opening, LH
61625G	Extension, Quarter Panel, Rear RH
61626G	Extension, Quarter Panel, Rear LH
61631A	Panel, Quarter Wheel House, Outer RH
61632A	Panel, Quarter Wheel House, Outer LH
61633A	Panel, Quarter Wheel House, Inner RH
61634A	Panel, Quarter Wheel House, Inner LH
61645B	Gusset, Quarter Wheel House, Rear RH
61646B	Gusset, Quarter Wheel House, Rear LH
61647C	Reinforcement, Wheel House, RH
61647E	Reinforcement, Quarter Panel, Lower RH
61648C	Reinforcement, Wheel House, LH
61648F	Reinforcement, Quarter Panel, Lower LH
61707L	Panel Sub-assy, Roof Side, Inner Front RH
61708G	Panel Sub-assy, Roof Side, Inner Front LH
61731B	Panel, Roof Side, Inner RH
61732B	Panel, Roof Side, Inner LH
61733A	Panel, Roof Side, Inner Front RH
61734A	Panel, Roof Side, Inner Front LH
61743A	Reinforcement, Back Door Opening Side, RH
61744A	Reinforcement, Back Door Opening Side, LH
61745A	Reinforcement, Back Door Opening, Lower RH
61746A	Reinforcement, Back Door Opening, Lower LH
61766B	Reinforcement, Belt Anchor TO Roof Side, Inner RH
61767B	Reinforcement, Belt Anchor TO Roof Side, Inner LH
61774A	Patch, Back Door Opening, Lower LH
61779B	Plate, Back Door Opening, Lower LH
61825A	Plate, Noise Control, NO.2
61825C	Pad, Noise Shutter, NO.2
61891A	Retainer, Back Door Upper Hinge, RH
61891B	Retainer, Back Door Upper Hinge, RH
67813	Pad, Quarter Panel Silencer
75941A	Stripe, Center Pillar, RH
75942B	Stripe, Center Pillar, LH
75998G	Stripe, Quarter, Lower RH
75999F	Stripe, Quarter, Lower LH

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
