Toyota RAV4 J/L
2000-05 → 2005-11 · chassis ACA2#,ZCA2# · catalogue 662120 · Japan
Discontinued model
Data version 2006-07

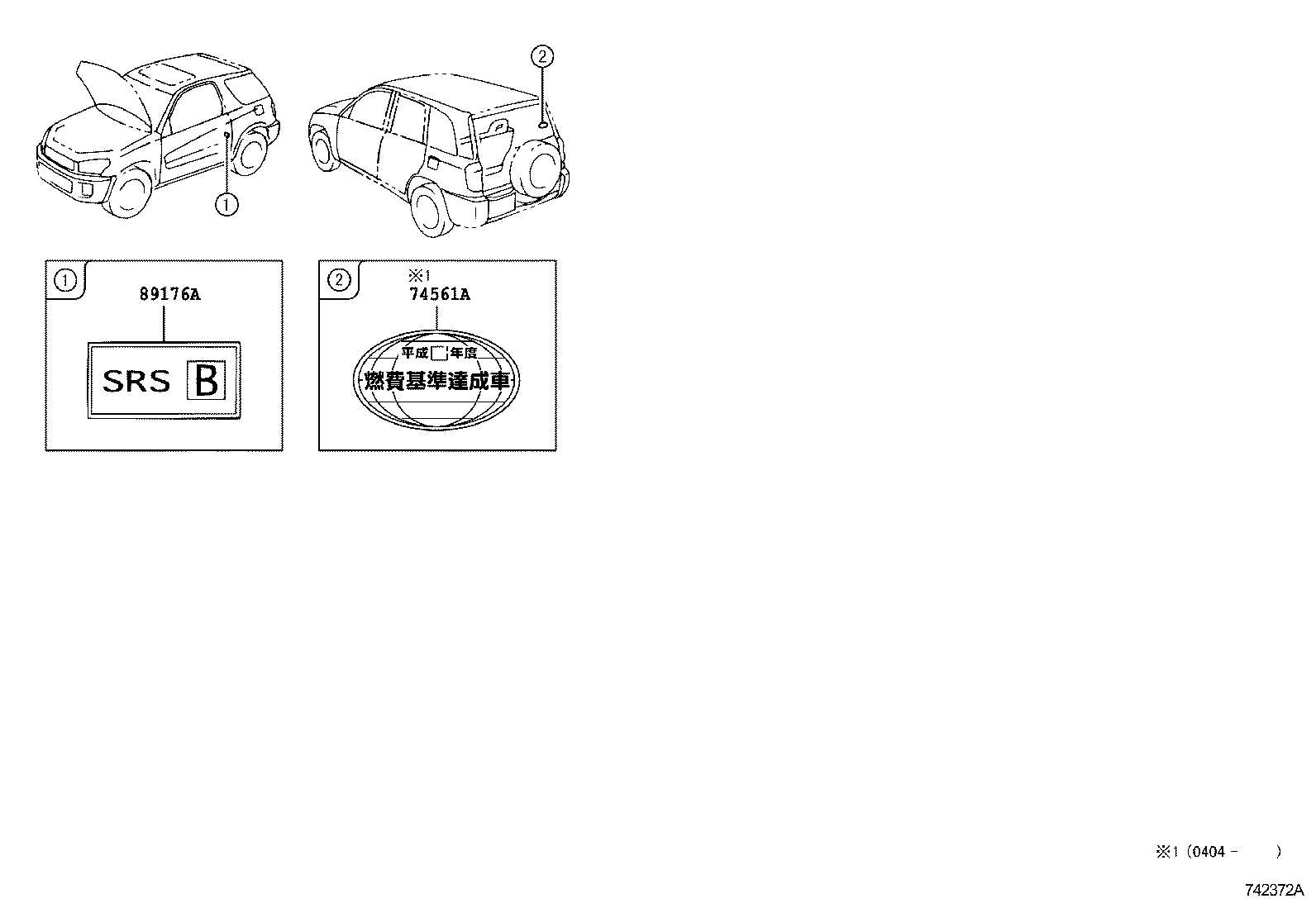

Caution Plate
12 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 41992 | Label, Differential Notice |
| 74511F | Label, Name (IDENTIFICATION LASER LABEL) |
| 74529 | Plate, Child Proof OR Child Protector Lock Caution |
| 74544E | Label, Rear NO.2 Seat Information |
| 74548C | Label, Battery Cover Caution |
| 74561A | Label, Fuel Consumption Information |
| 74562B | Label, Emission Information |
| 74593C | Label, Trim Pocket Notice |
| 74751 | Label, Tire Pressure Information |
| 87529B | Label, A/C Filter Information |
| 88723E | Label, Cooler Service Caution |
| 89176A | Label, Airbag Deployment Information |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
