Toyota RAV4 J/L
2000-05 → 2005-11 · chassis ACA2#,ZCA2# · catalogue 662120 · Japan
Discontinued model
Data version 2006-07

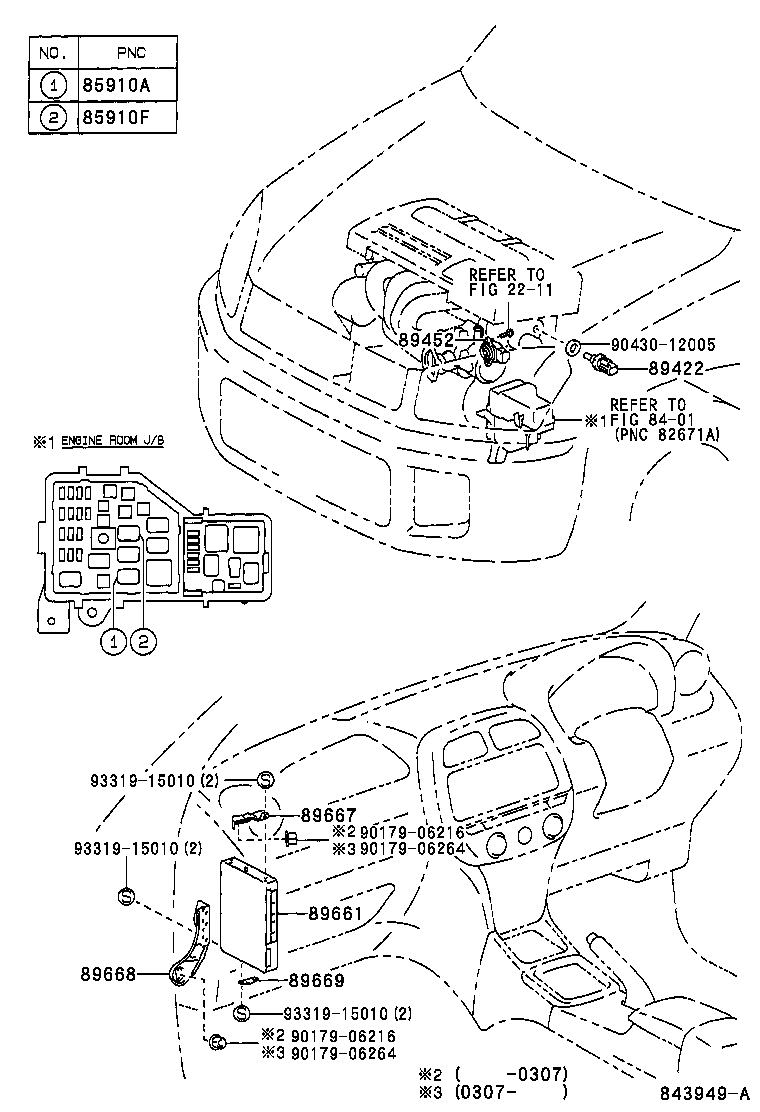

Electronic Fuel Injection System
14 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 85910A | Relay Assy, Circuit Opening (FOR EFI) |
| 85910F | Relay, Computer (FOR EFI) |
| 85910Z | Relay, Injection (FOR EFI) |
| 85911C | Relay, Efi 2 |
| 89421 | Sensor Assy, Vacuum (FOR E.F.I.) |
| 89422 | Sensor, Water Temperature (FOR E.F.I.) |
| 89424 | Sensor, Inlet Air Temperature (FOR E.F.I.) |
| 89452 | Sensor, Throttle Position (FOR E.F.I.) |
| 89661 | Computer, Engine Control |
| 89667 | Bracket, Engine Control Computer |
| 89668 | Bracket, Engine Control Computer, NO.2 |
| 89669 | Bracket, Engine Control Computer, NO.3 |
| 89871 | Driver, Injector |
| 89879 | Bracket, Injector Driver |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
