Toyota RAV4 J/L
2000-05 → 2005-11 · chassis ACA2#,ZCA2# · catalogue 662120 · Japan
Discontinued model
Data version 2006-07
Abs & Vsc

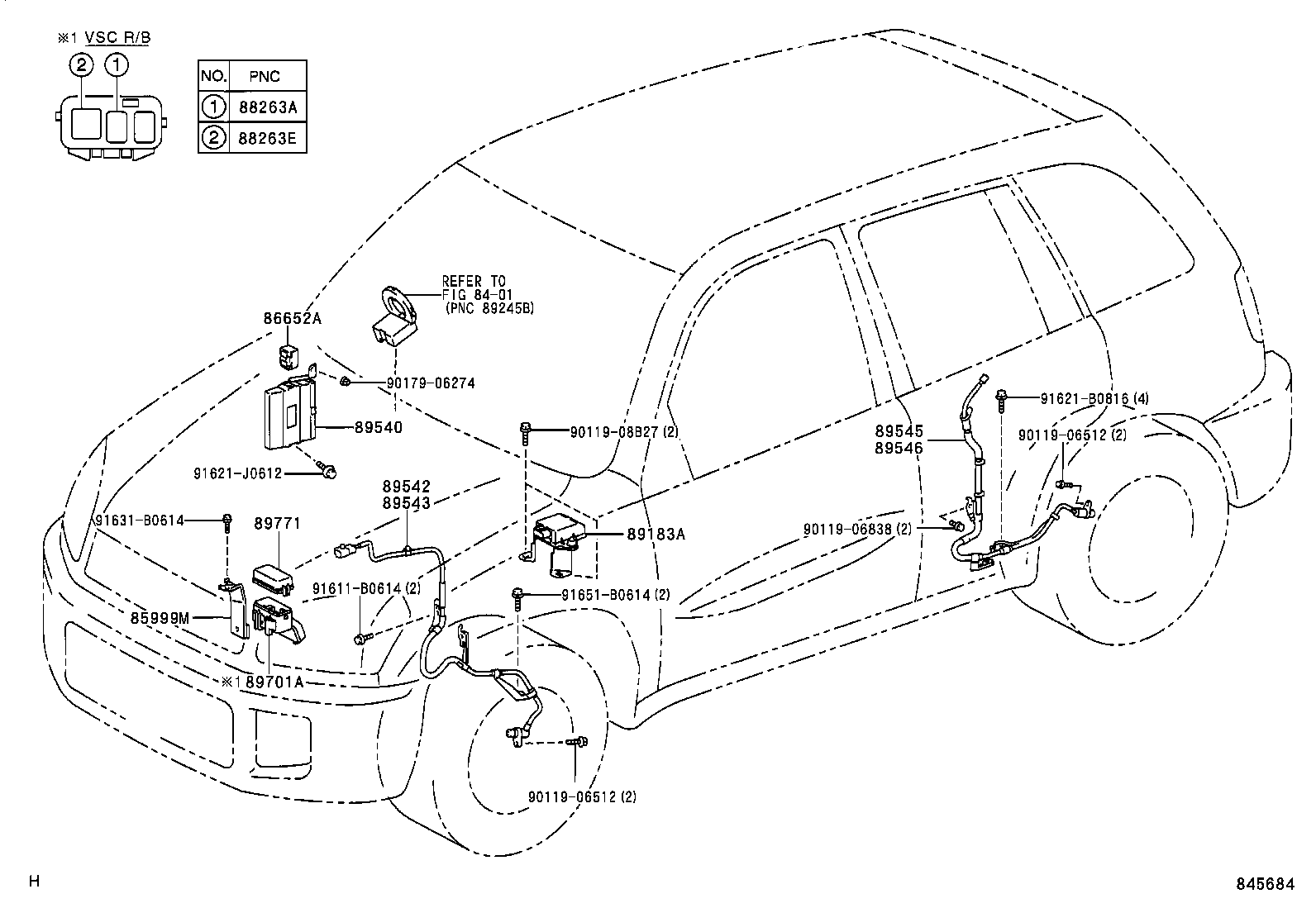

16 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 85999M | Bracket, Relay |
| 86652A | Buzzer Assy, Skid Control |
| 88263A | Relay, Skid Control |
| 88263E | Relay, Skid Control NO.2 |
| 89183A | Sensor, Yawrate |
| 89441A | Sensor, Deceleration |
| 89516 | Wire, Skid Control Sensor |
| 89540 | Computer Assy, Skid Control |
| 89542 | Sensor, Speed, Front RH |
| 89543 | Sensor, Speed, Front LH |
| 89544 | Sensor, Skid Control |
| 89545 | Sensor, Speed, Rear RH |
| 89546 | Sensor, Speed, Rear LH |
| 89701A | Block Sub-assy, Abs Relay |
| 89771 | Cover, Abs Relay Block, Upper |
| 89773 | Case, Abs Relay Block |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
