Toyota RAV4 J/L
2000-05 → 2005-11 · chassis ACA2#,ZCA2# · catalogue 662120 · Japan
Discontinued model
Data version 2006-07

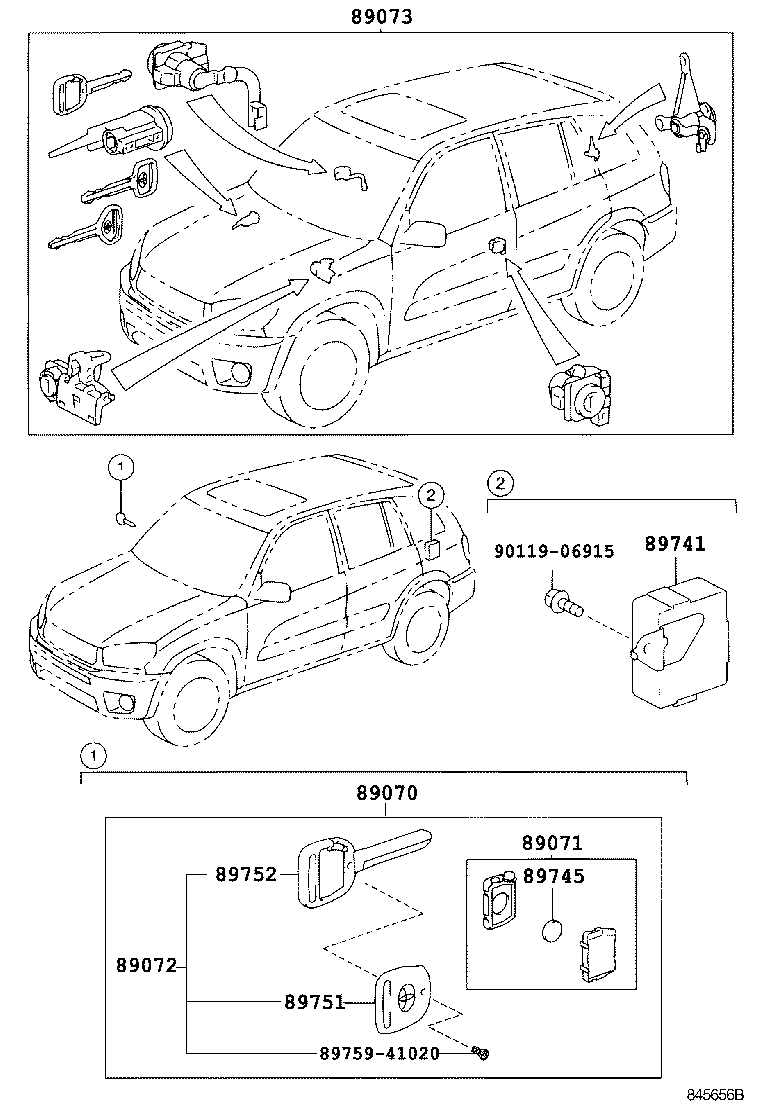

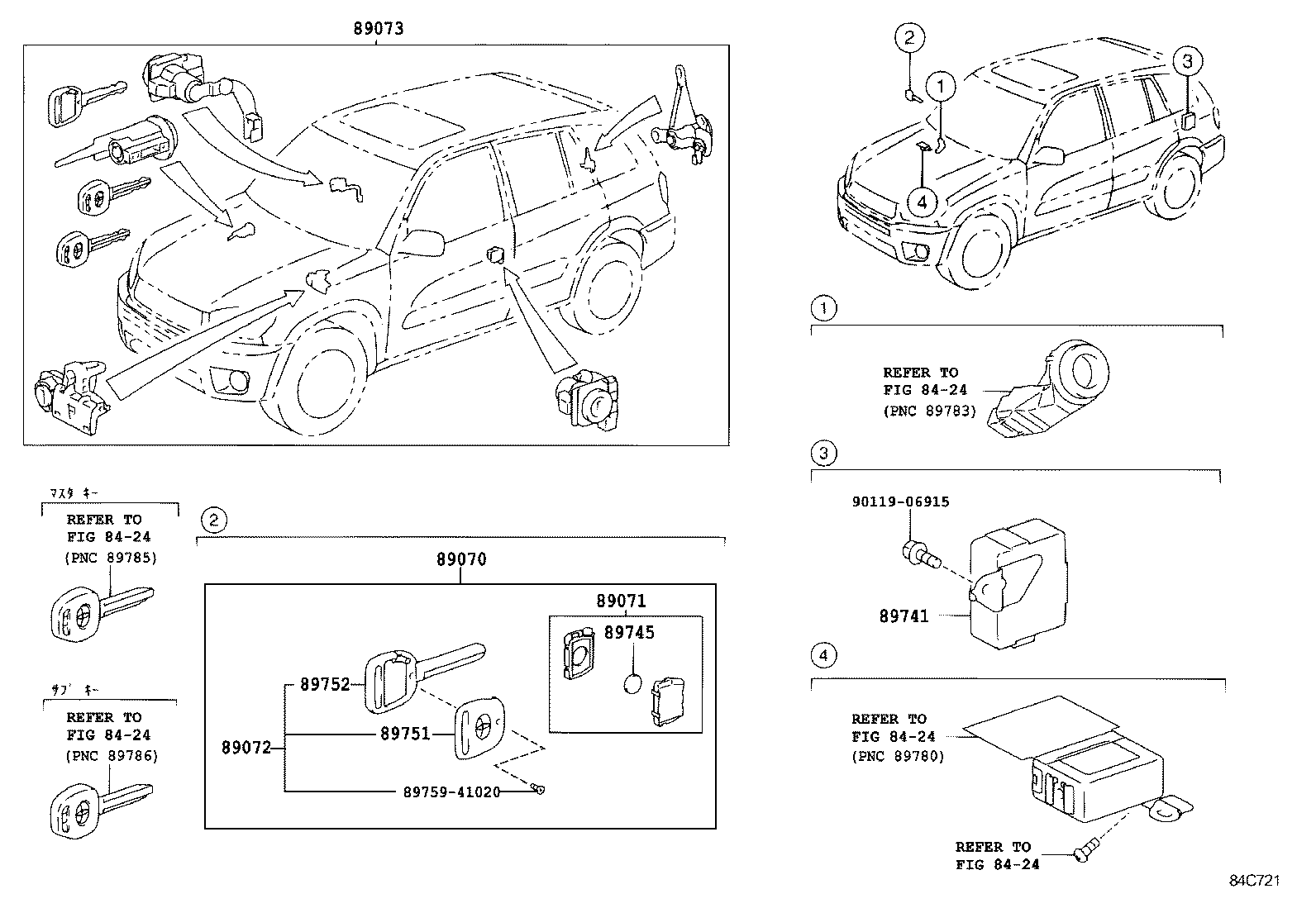

Wireless Door Lock
8 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 89070 | Transmitter Assy, Door Control |
| 89071 | Module Set, Transmitter Sub-assy, Door Control |
| 89072 | Housing Set, Door Control Transmitter |
| 89073 | Cylinder Set, Lock W/Transmitter Housing(LESS MODULE) |
| 89741 | Receiver, Door Control |
| 89745 | Battery, Transmitter |
| 89751 | Cover, Transmitter Housing |
| 89752 | Case, Transmitter Housing |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
