Factory parts data · Europe

Toyota RAV4 J/L

2000-05 → 2005-11 · chassis ACA2#,ZCA2# · catalogue 662120 · Japan

Discontinued model Data version 2006-07

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Radio Receiver & Amplifier & Condenser

3 part groups · 2 illustrations

Illustrations

Figure 861169B

861169B 2000-05 → —

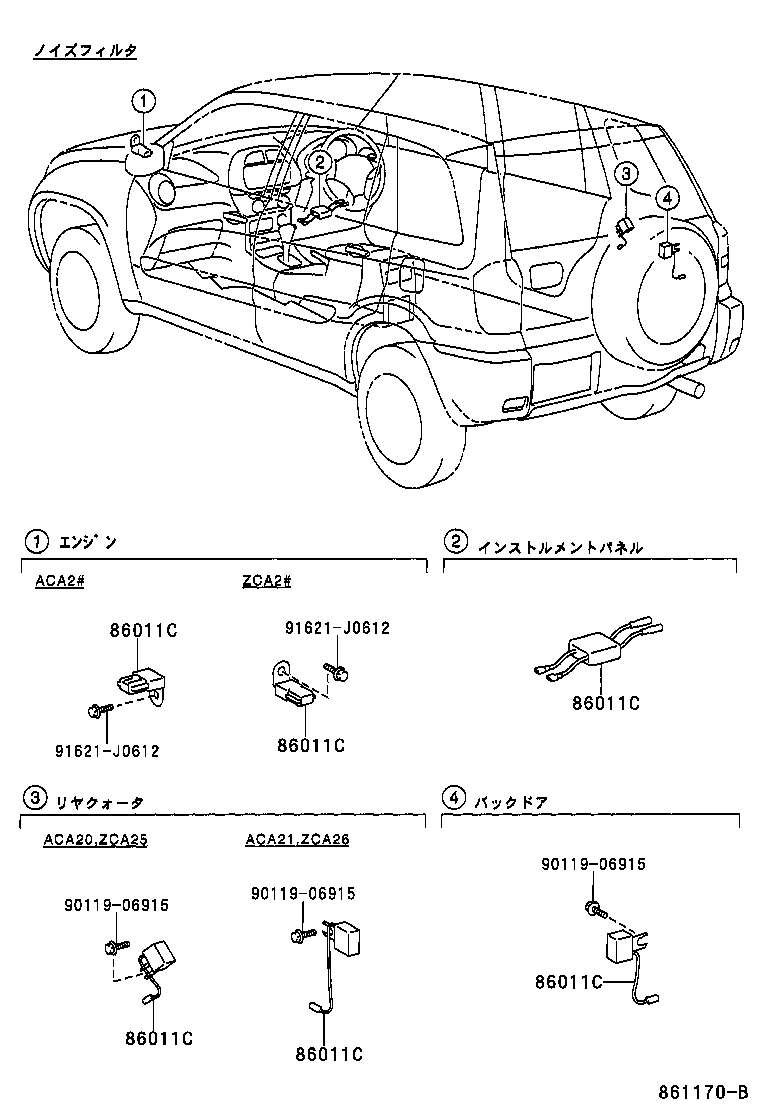

Figure 861170B

861170B 2000-05 → —

Part groups

PNC	Description
86011C	Filter, Noise
86211	Bracket, Radio, NO.1
86212	Bracket, Radio, NO.2

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
