Toyota RAV4 J/L

2000-05 → 2005-11 · chassis ACA2#,ZCA2# · catalogue 662120 · Japan

Discontinued model Data version 2006-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Mirror

10 part groups · 2 illustrations

Illustrations

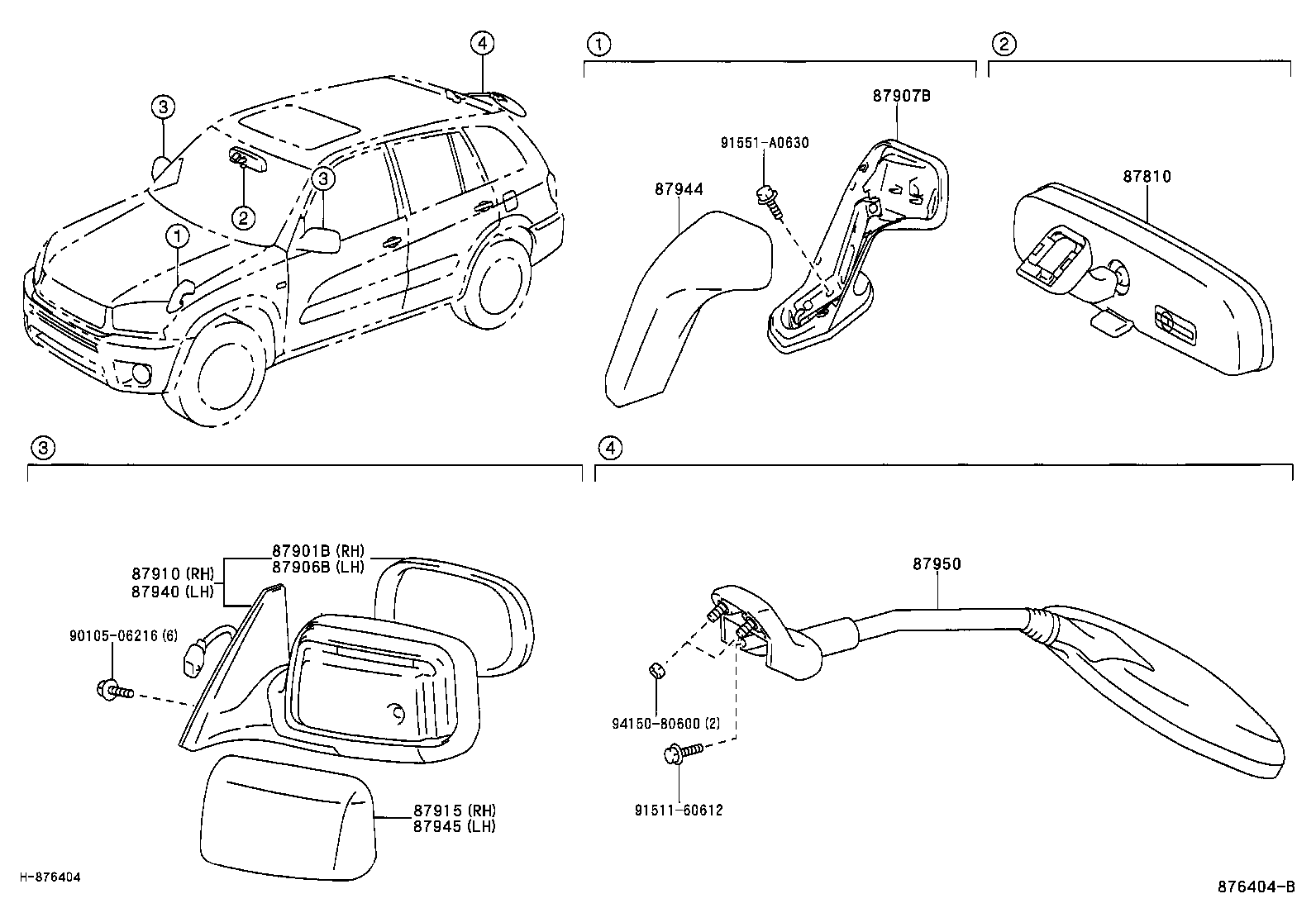

Figure 874147C 874147C 2000-05 → 2003-07 Figure 876404B 876404B 2003-07 → —

Part groups

PNCDescription
87810 Mirror Assy, Inner Rear View
87901B Mirror Sub-assy, Outer Rear View, RH
87906B Mirror Sub-assy, Outer Rear View, LH
87907B Device Sub-assy,Front Fender Side View,LH
87910 Mirror Assy, Outer Rear View, RH
87915 Cover, Outer Mirror, RH
87940 Mirror Assy, Outer Rear View, LH
87944 Cover, Front Fender Side View Device, LH
87945 Cover, Outer Mirror, LH
87950 Mirror Assy, Outer Under Rear View
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
