Toyota RAV4/Vanguard

2005-11 → 2016-06 · chassis ACA3#,GSA33 · catalogue 662130 · Japan

Supported model Data version 2016-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Water Pump

9 part groups · 8 illustrations

Illustrations

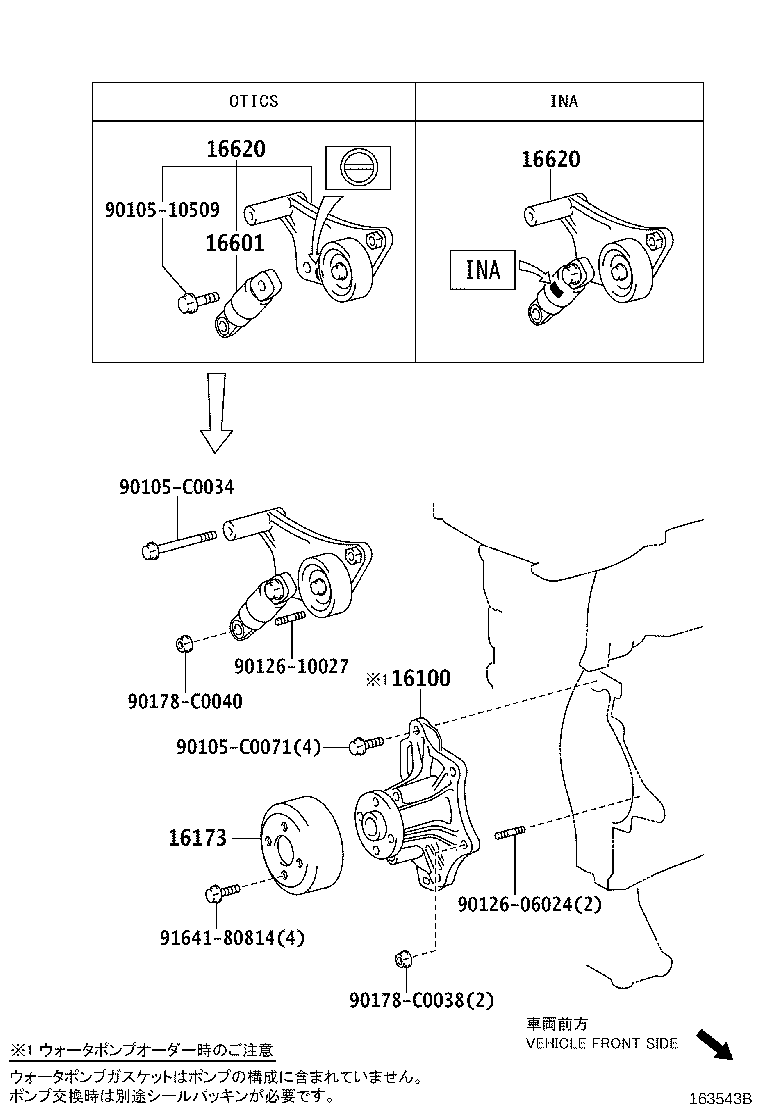

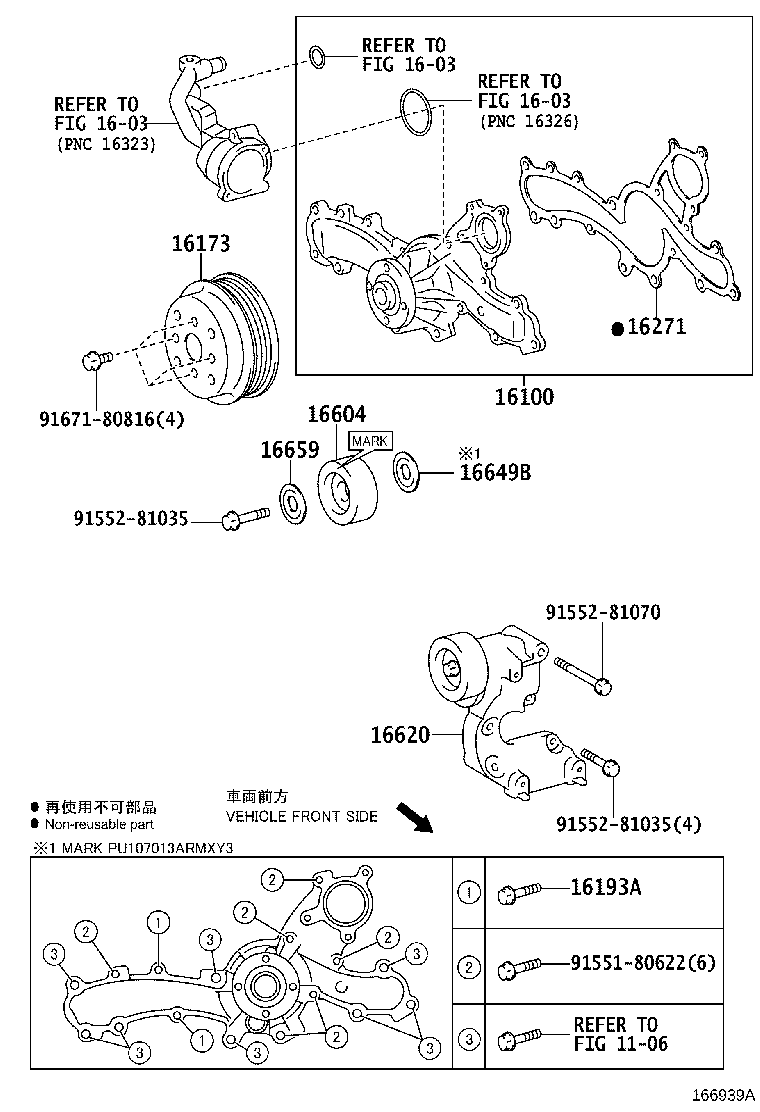

Figure 162516H 162516H 2005-11 → 2008-04 Figure 163467C 163467C 2008-04 → 2008-08 Figure 163467C 163467C 2008-08 → — Figure 163543B 163543B 2005-11 → 2008-05 Figure 163544B 163544B 2008-05 → 2008-08 Figure 163544B 163544B 2008-08 → — Figure 163597B 163597B 2008-08 → — Figure 166939A 166939A 2007-08 → —

Part groups

PNCDescription
16100 Pump Assy, Engine Water
16173 Pulley, Water Pump
16193A Bolt(FOR WATER PUMP COVER)
16271 Gasket, Water Pump
16601 Tensioner Sub-assy, V-ribbed Belt
16604 Pulley Sub-assy, Idler, NO.2
16620 Tensioner Assy, V-ribbed Belt
16649B Plate, Idler Pulley Cover
16659 Plate, Idler Pulley Cover, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
