Toyota RAV4/Vanguard

2005-11 → 2016-06 · chassis ACA3#,GSA33 · catalogue 662130 · Japan

Supported model Data version 2016-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Steering Wheel

9 part groups · 4 illustrations

Illustrations

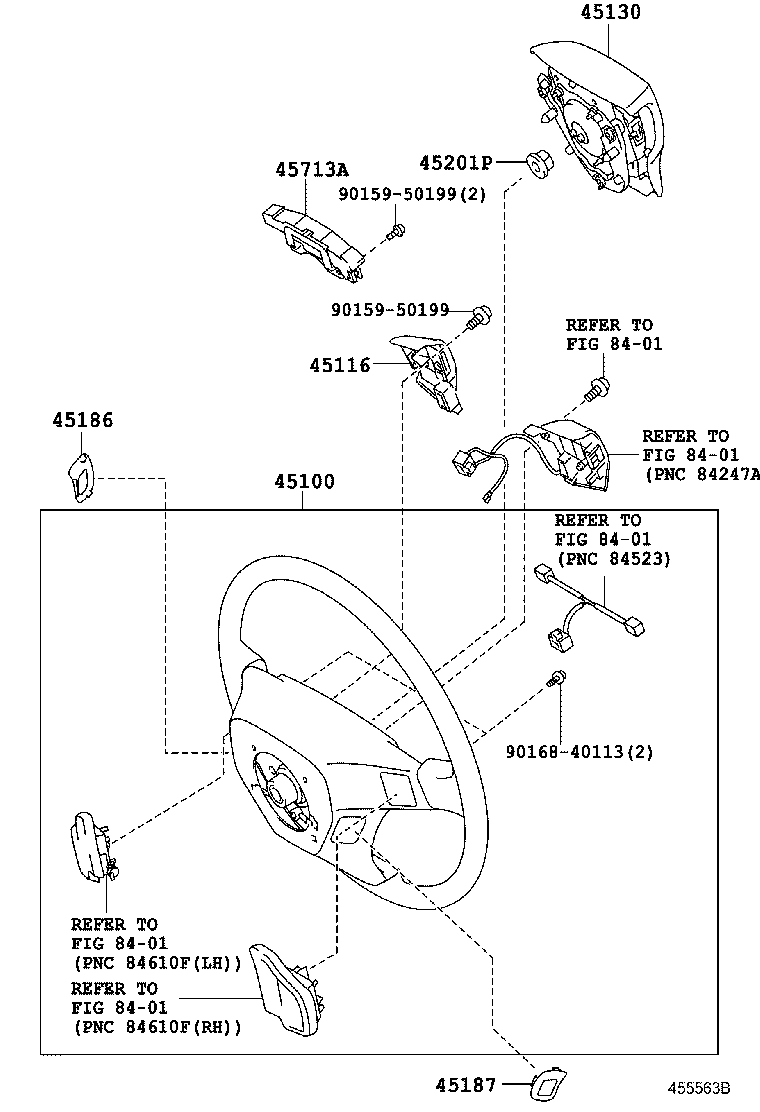

Figure 454363E 454363E 2005-11 → — Figure 454363E 454363E 2007-08 → 2010-02 Figure 455563B 455563B 2010-02 → — Figure 455562B 455562B 2010-02 → —

Part groups

PNCDescription
45100 Wheel Assy, Steering
45107 Wire Sub-assy, Horn Button
45116 Ornament, Steering Wheel, NO.1
45117 Ornament, Steering Wheel, NO.2
45130 Button Assy, Horn
45186 Cover, Steering Wheel, Lower NO.2
45187 Cover, Steering Wheel, Lower NO.3
45201P Nut, Steering Wheel Set
45713A Damper, Steering Shake
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
