Toyota RAV4/Vanguard

2005-11 → 2016-06 · chassis ACA3#,GSA33 · catalogue 662130 · Japan

Supported model Data version 2016-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Radiator Grille

10 part groups · 6 illustrations

Illustrations

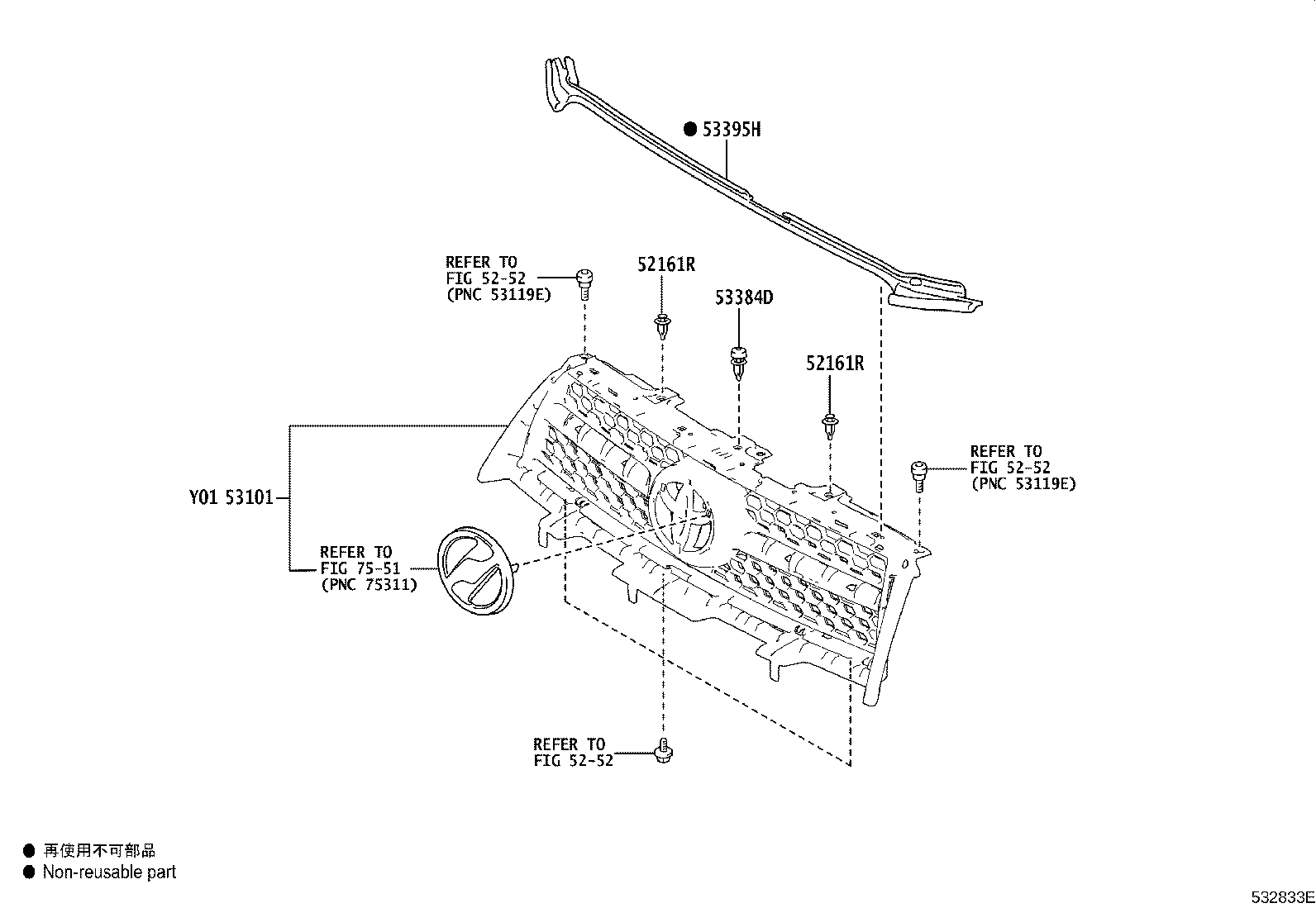

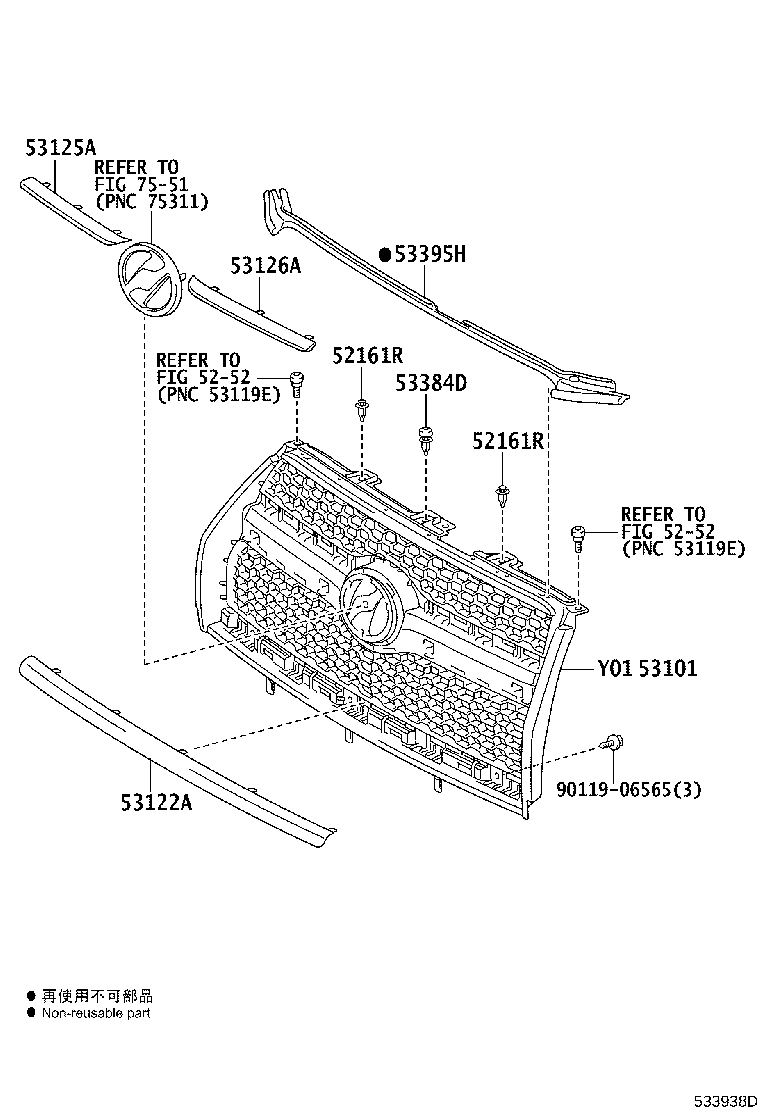

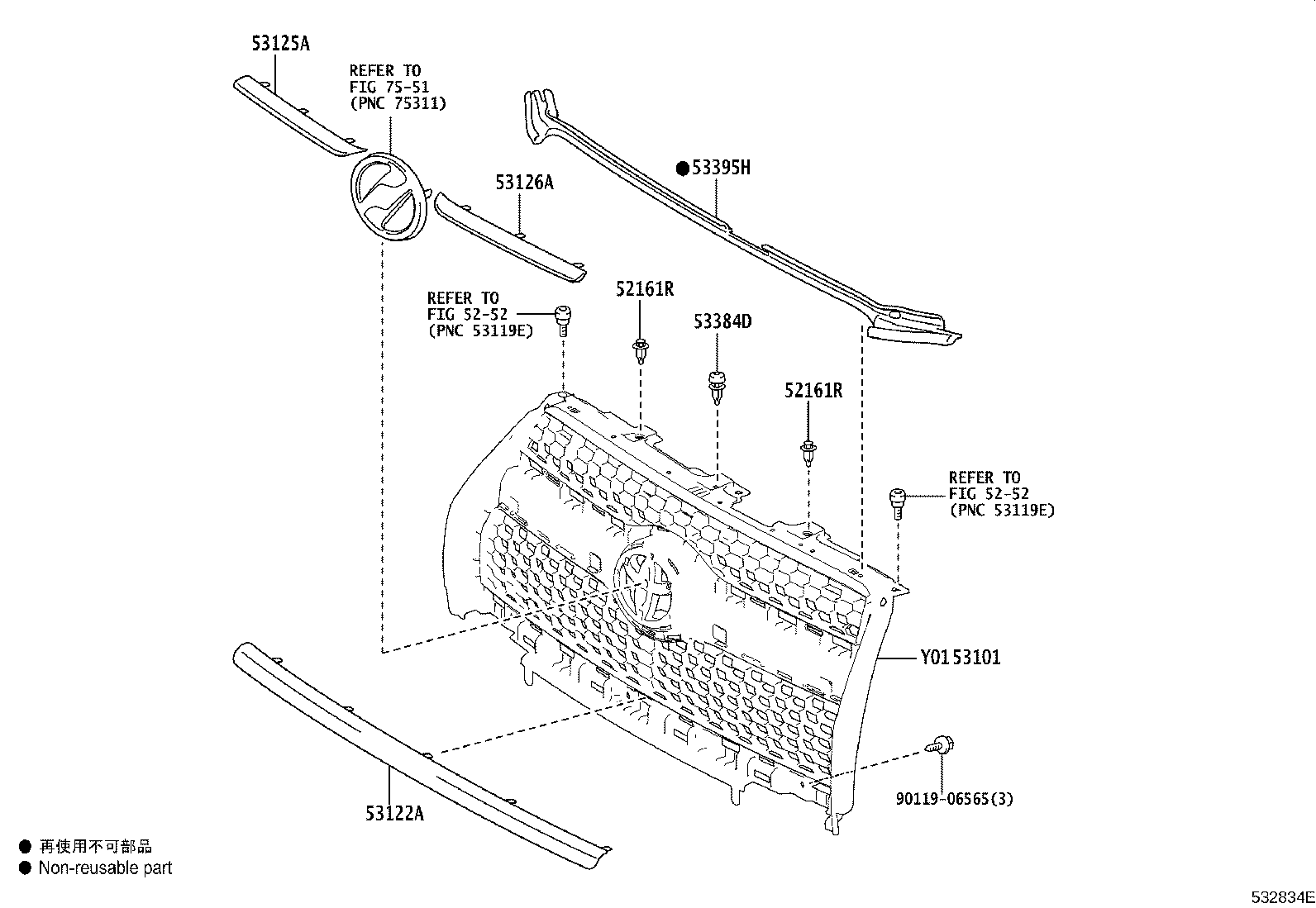

Figure 532061M 532061M 2005-11 → 2008-08 Figure 532649F 532649F 2007-08 → 2010-02 Figure 532833E 532833E 2008-08 → — Figure 532834E 532834E 2008-08 → — Figure 533213C 533213C 2010-02 → — Figure 533938D 533938D 2012-12 → —

Part groups

PNCDescription
52161R Piece, Front Bumper
53101 Grille Sub-assy, Radiator
53119B Protector, Radiator Grille
53122A Moulding, Radiator Grille, Lower
53125A Moulding, Radiator Grille, Center RH
53126A Moulding, Radiator Grille, Center LH
53384D Cushion, Hood, Center
53395H Seal, Hood TO Radiator Grille
53396H Seal, Hood TO Front End Panel, NO.2
75317A Plate, Radiator Grille Ornament
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
