Toyota RAV4/Vanguard

2005-11 → 2016-06 · chassis ACA3#,GSA33 · catalogue 662130 · Japan

Supported model Data version 2016-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Hood Lock & Hinge

15 part groups · 2 illustrations

Illustrations

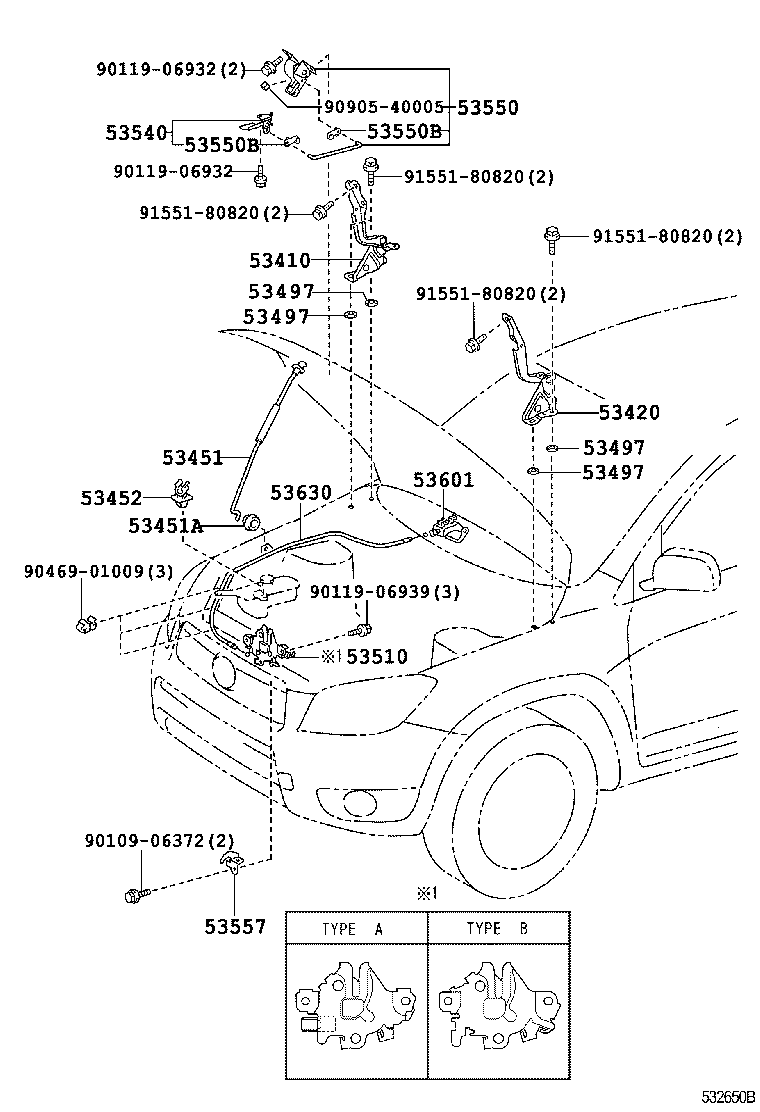

Figure 532064M 532064M 2005-11 → — Figure 532650B 532650B 2007-08 → —

Part groups

PNCDescription
53410 Hinge Assy, Hood, RH
53420 Hinge Assy, Hood, LH
53451 Rod, Hood Support
53451A Grommet(FOR HOOD SUPPORT ROD)
53452 Holder, Hood Stay
53497 Pad, Hood Hinge, NO.1
53510 Lock Assy, Hood
53540 Lever Assy, Auxiliary Catch Release
53550 Hook Assy, Hood Auxiliary Catch
53550A Spring, Torsion(FOR HOOD LOCK HOOK)
53550B Snap, Hood Auxiliary Catch Hook Control Link
53557 Catch, Hood Auxiliary Hook
53601 Lever Sub-assy, Hood Lock Control
53630 Cable Assy, Hood Lock Control
64480A Striker Assy, Engine Hood Lock
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
