Toyota RAV4/Vanguard
2005-11 → 2016-06 · chassis ACA3#,GSA33 · catalogue 662130 · Japan
Supported model
Data version 2016-12
Instrument Panel & Glove Compartment
43 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|

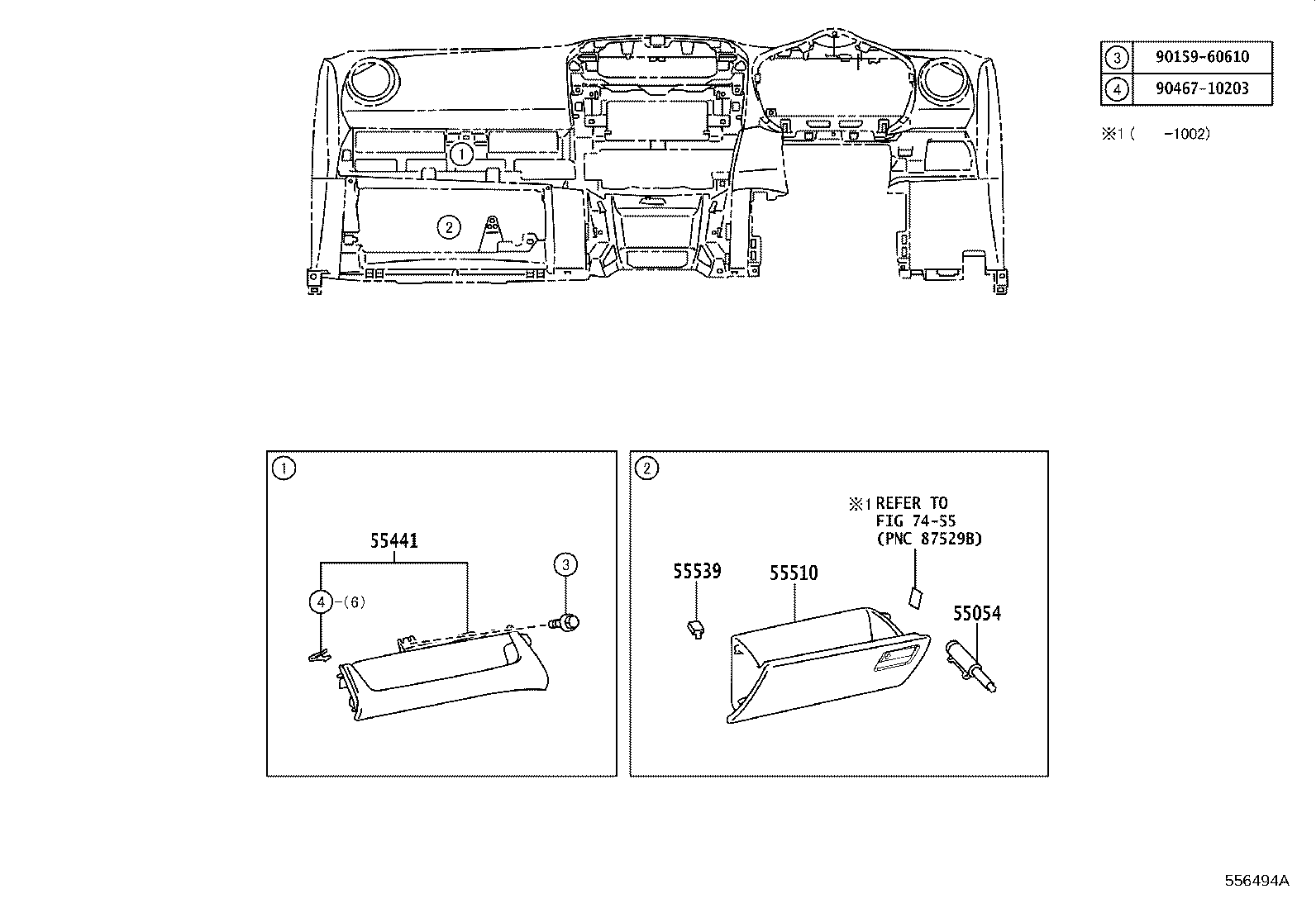

| 55054 | Stopper Sub-assy, Glove Compartment Door |
| 55302A | Panel Sub-assy, Instrument, Upper |
| 55306A | Brace Sub-assy, Instrument Panel, NO.1 |
| 55312 | Panel, Instrument, Lower |
| 55312A | Clip, Instrument Panel |
| 55331 | Reinforcement, Instrument Panel |
| 55355 | Cushion, Instrument Panel, NO.1 |
| 55358K | Cushion, Instrument Panel, NO.4 |
| 55368C | Bracket, Meter Mounting |
| 55388A | Bracket, Console Mounting, RH |
| 55389 | Bracket, Console Mounting, LH |
| 55391 | Cushion, Instrument Panel, Lower NO.1 |
| 55394D | Cover, Instrument Panel Bracket, Inner NO.1 RH |
| 55395C | Cover, Instrument Panel Bracket, Inner NO.1 LH |
| 55410C | Panel Assy, Instrument Cluster Finish |

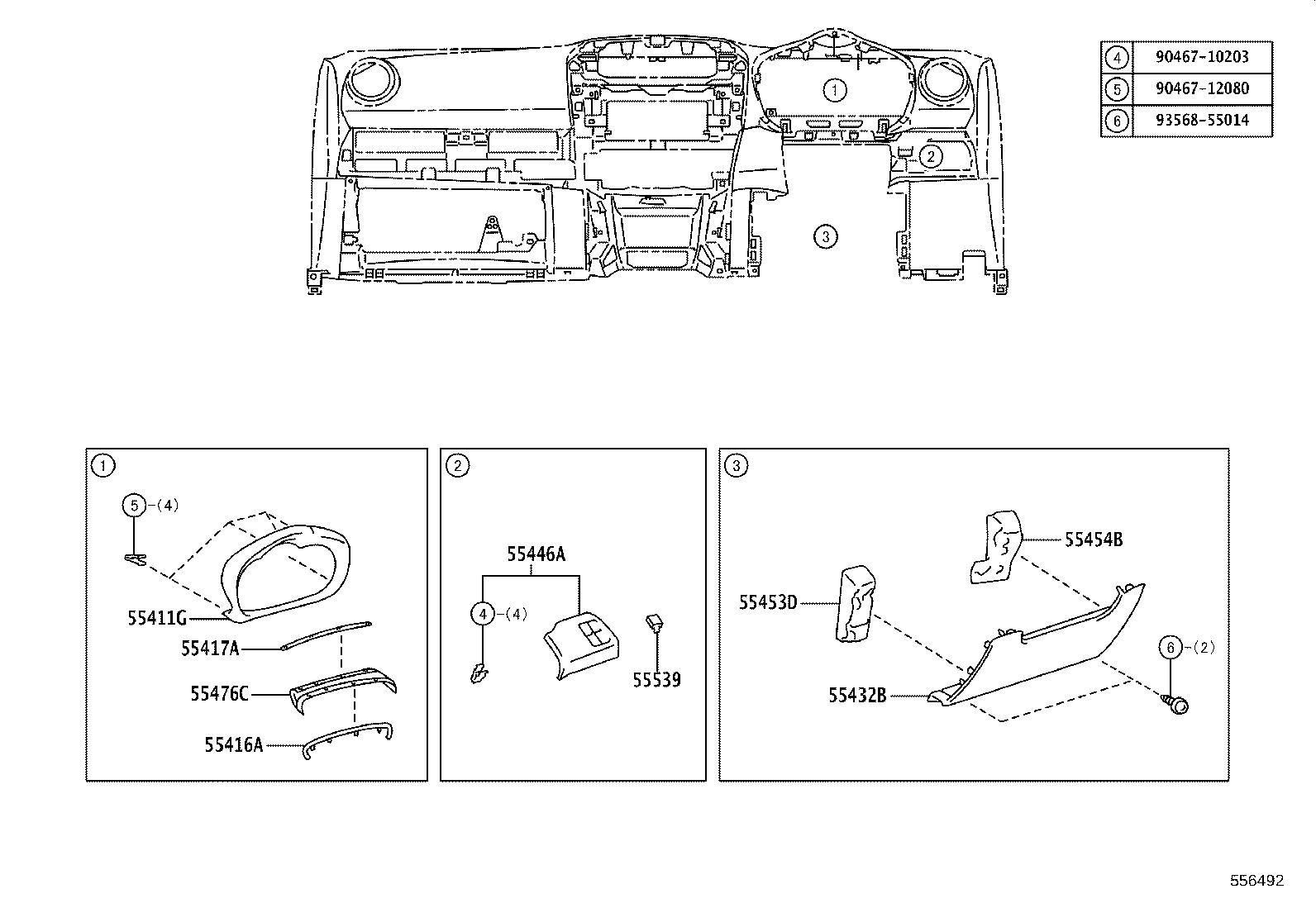

| 55411G | Panel, Instrument Cluster Finish, NO.1 |

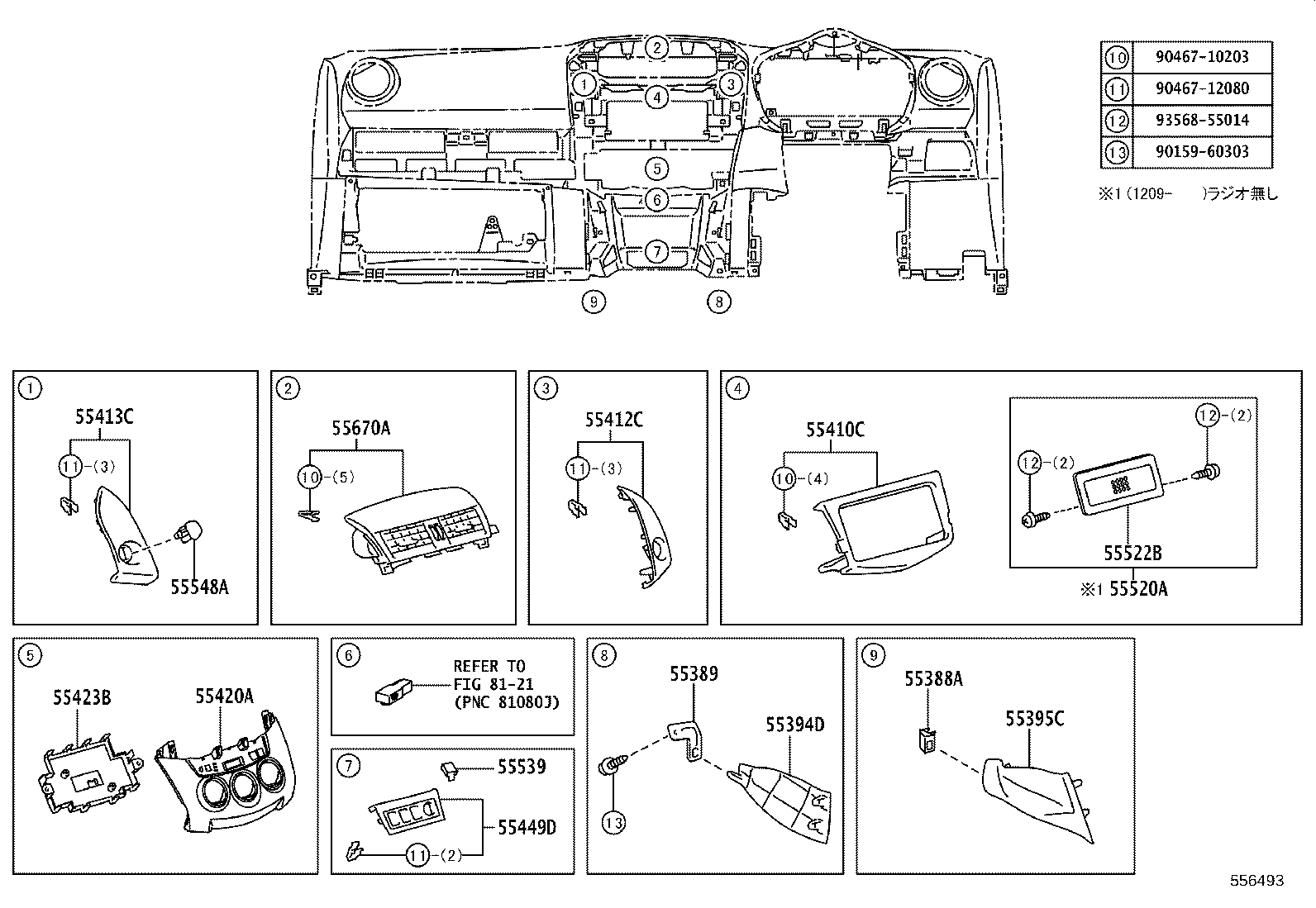

| 55412C | Panel, Instrument Cluster Finish, Center NO.1 |
| 55413C | Panel, Instrument Cluster Finish, Center NO.2 |
| 55416A | Retainer, Meter Hood, NO.1 |
| 55417A | Retainer, Meter Hood, NO.2 |
| 55420A | Panel Assy, Instrument Cluster Finish, Center |
| 55423B | Cover, Instrument Cluster Finish Panel |
| 55432B | Panel, Instrument Panel Finish, Lower |
| 55441 | Box, Instrument Panel |
| 55446A | Base, Switch Hole, NO.1 |
| 55448A | Cushion, Instrument Panel Finish, NO.1 |
| 55449D | Base, Switch |
| 55453D | Pad, Instrument Panel Safety, NO.1 |
| 55454B | Pad, Instrument Panel Safety, NO.2 |
| 55476C | Garnish, Instrument Panel Finish Plate |
| 55510 | Door Assy, Glove Compartment |
| 55520A | Cover Assy, Stereo Opening |
| 55522B | Cover, Radio Tuner Opening |
| 55539 | Cover, Spare Switch Hole |
| 55548A | Cover, Instrument Panel Hole |
| 55549B | Cover, Instrument Panel Hole, NO.2 |
| 55650 | Register Assy, Instrument Panel, NO.1 |
| 55660 | Register Assy, Instrument Panel, NO.2 |
| 55670A | Register Assy, Instrument Panel, Center |
| 55971A | Duct, Side Defroster Nozzle, NO.1 |
| 55972 | Duct, Side Defroster Nozzle, NO.2 |
| 73960A | Airbag Assy, Instrument Panel Passenger W/O Door |
| 82140 | Wire Assy, Instrument Panel |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
