Toyota RAV4/Vanguard

2005-11 → 2016-06 · chassis ACA3#,GSA33 · catalogue 662130 · Japan

Supported model Data version 2016-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Emblem & Name Plate

6 part groups · 2 illustrations

Illustrations

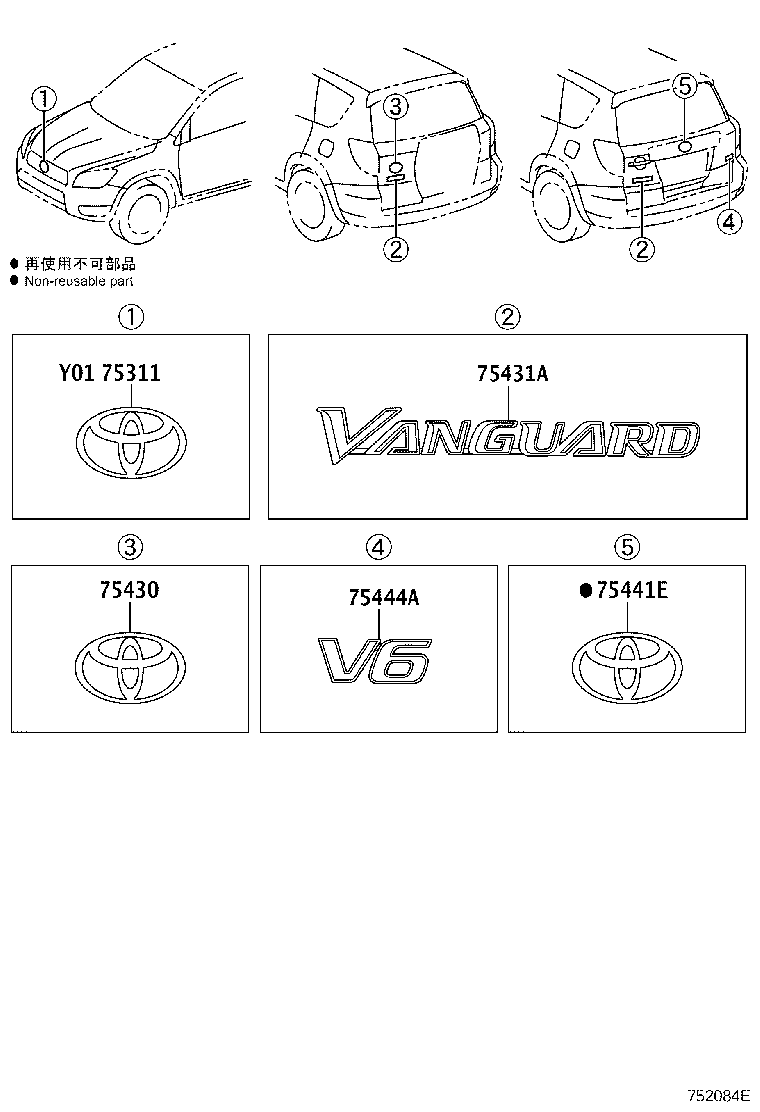

Figure 751597G 751597G 2005-11 → — Figure 752084E 752084E 2007-08 → —

Part groups

PNCDescription
75311 Emblem, Radiator Grille (OR FRONT PANEL)
75430 Emblem Assy, Back Door, NO.1
75431A Emblem, Back Door, NO.1
75432 Emblem, Back Door, NO.2
75441E Plate, Back Door Name, NO.1
75444A Plate, Back Door Name, NO.4
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
