Fog Lamp

5 part groups · 5 illustrations

Illustrations

Figure 813448D

813448D 2005-11 → 2008-08

Figure 813448D

813448D 2007-08 → 2008-08

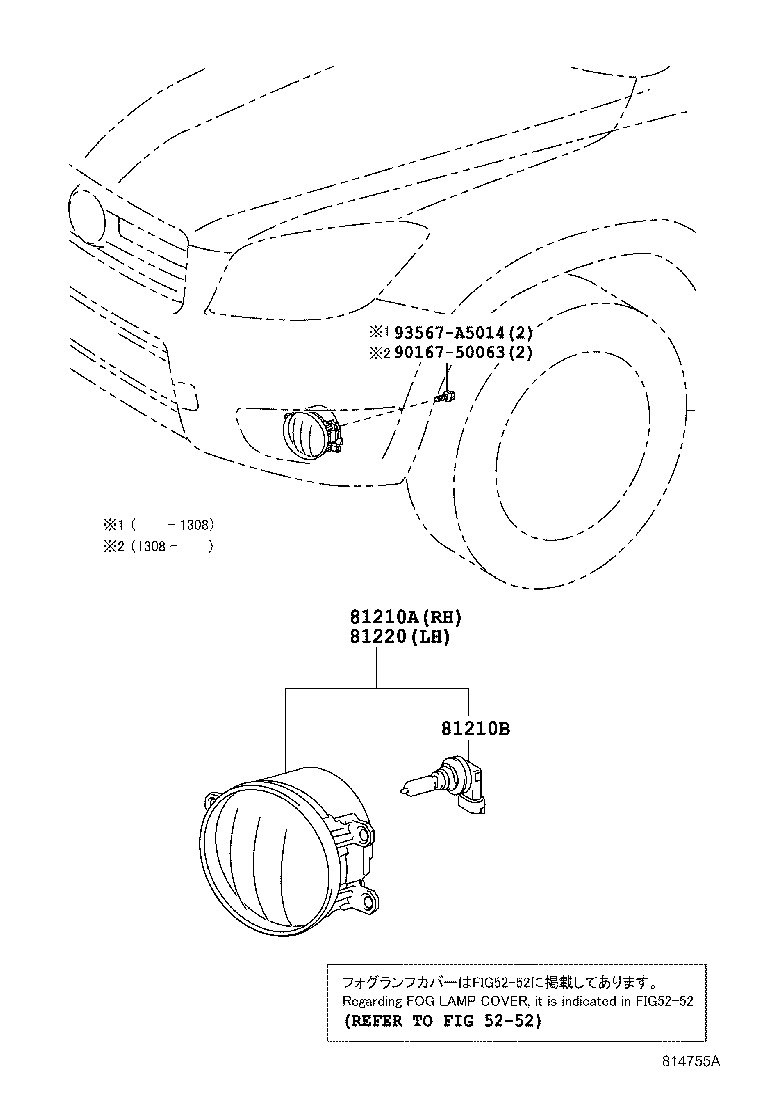

Figure 814755A

814755A 2008-08 → —

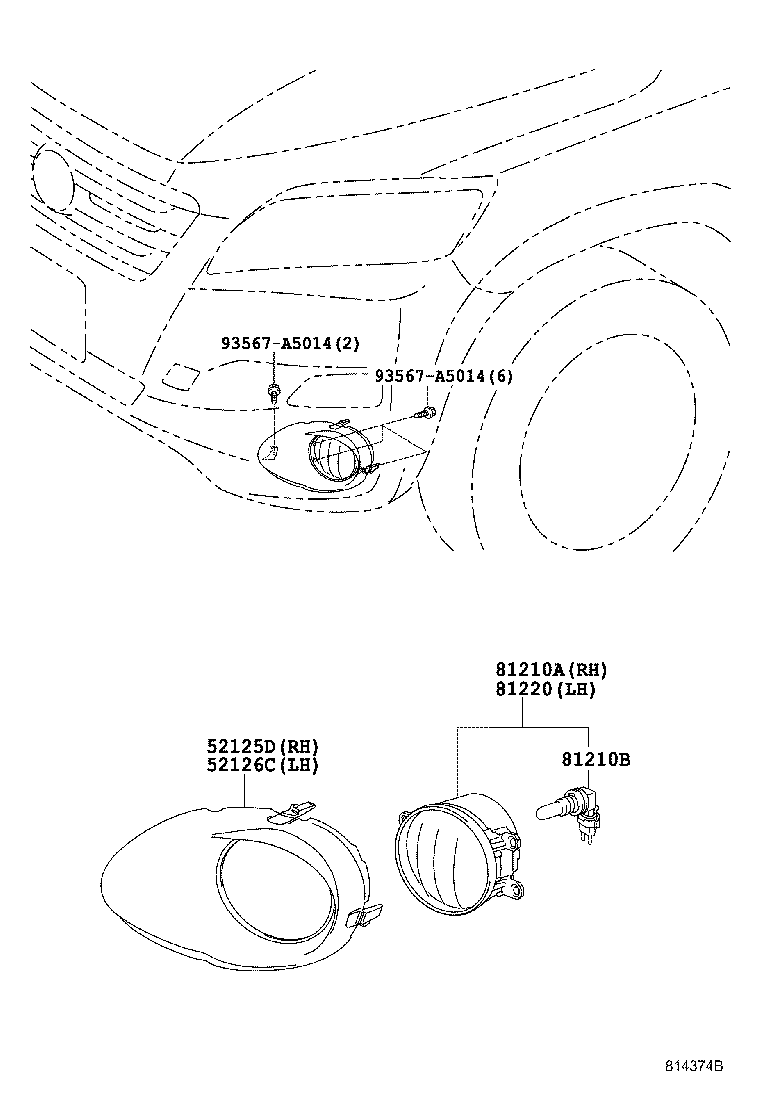

Figure 814374B

814374B 2007-08 → 2010-02

Figure 815331B

815331B 2010-02 → —

Part groups

PNC	Description
52125D	Bracket, Fog Lamp Mounting, RH
52126C	Bracket, Fog Lamp Mounting, LH
81210A	Lamp Assy, Fog, RH
81210B	Bulb, Fog Lamp
81220	Lamp Assy, Fog, LH

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
