Toyota RAV4/Vanguard

2005-11 → 2016-06 · chassis ACA3#,GSA33 · catalogue 662130 · Japan

Supported model Data version 2016-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Combination Lamp

7 part groups · 4 illustrations

Illustrations

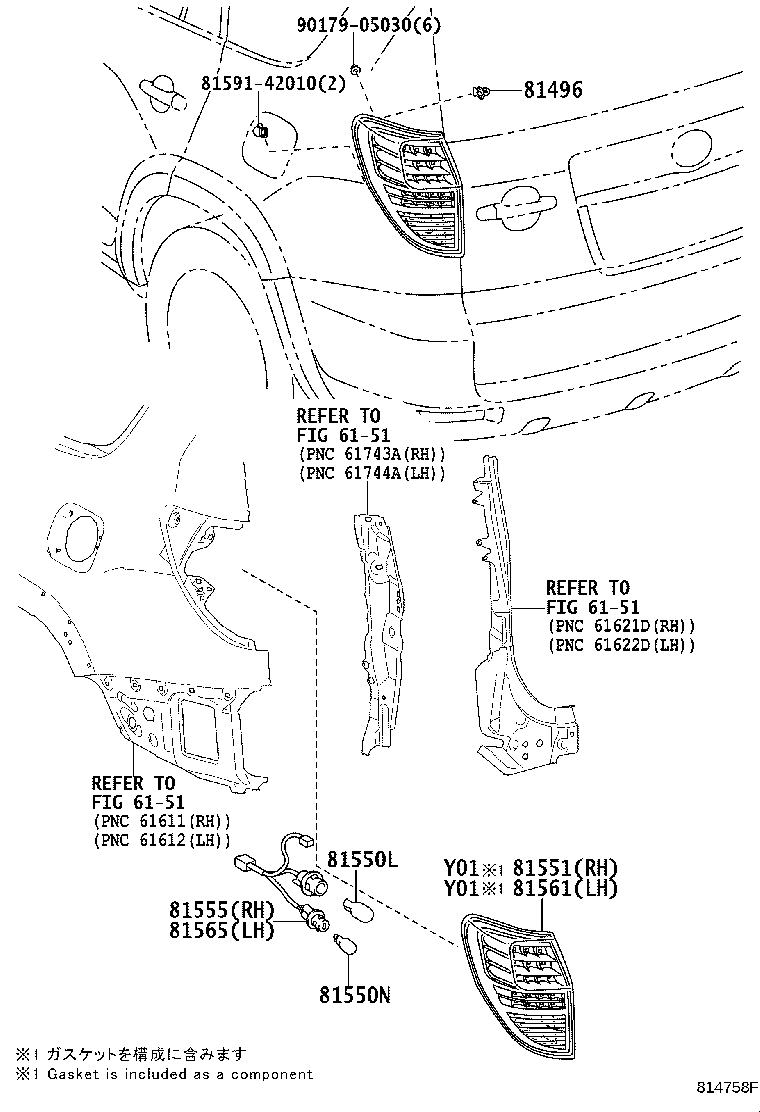

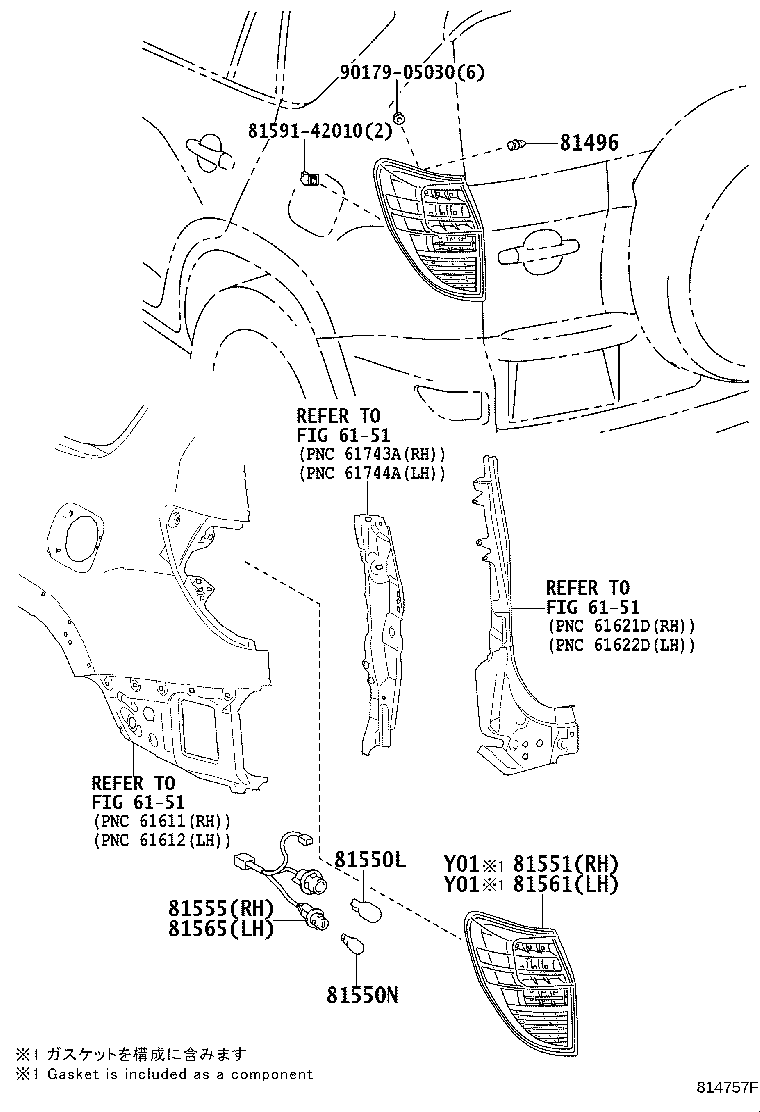

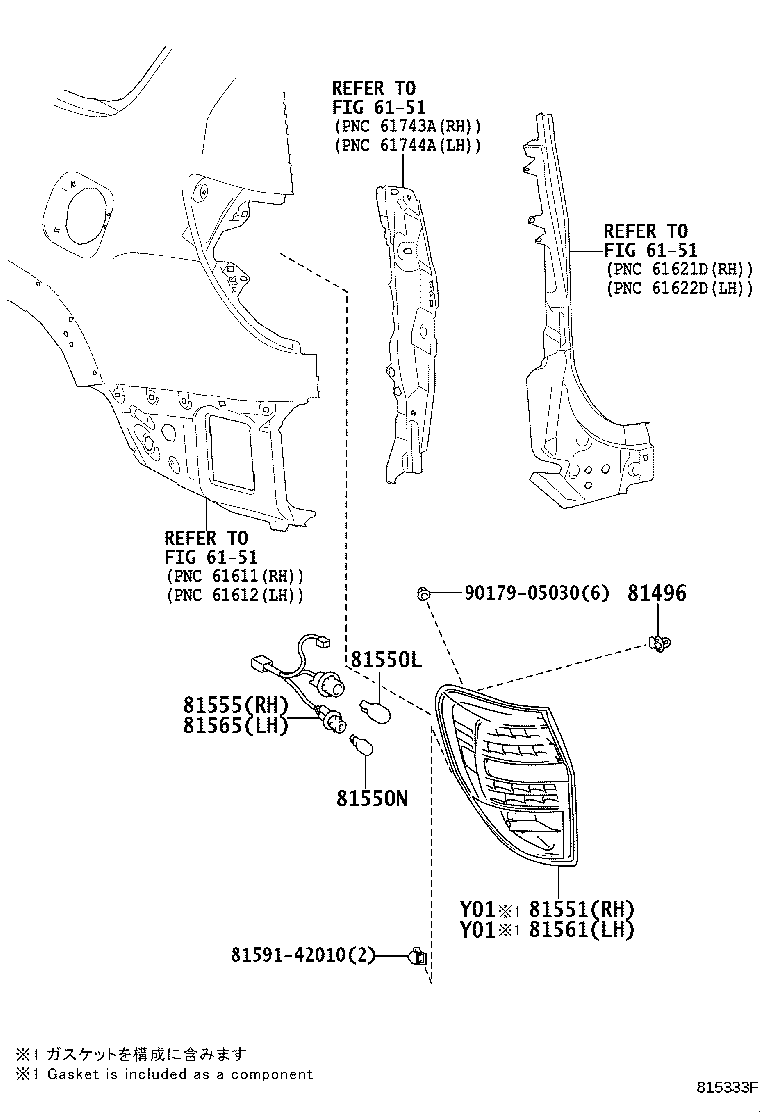

Figure 813451F 813451F 2005-11 → 2008-08 Figure 814757F 814757F 2008-08 → — Figure 814758F 814758F 2007-08 → 2010-02 Figure 815333F 815333F 2010-02 → —

Part groups

PNCDescription
81496 Guide, Rear Combination Lamp
81550L Bulb, Rear Turn Signal Lamp
81550N Bulb, Back UP Lamp
81551 Lens, Rear Combination Lamp, RH
81555 Socket & Wire Sub-assy, Rear Combination Lamp, RH
81561 Lens, Rear Combination Lamp, LH
81565 Socket & Wire Sub-assy, Rear Combination Lamp, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
