Rear Fog Lamp

9 part groups · 3 illustrations

Illustrations

Figure 813472E

813472E 2005-11 → —

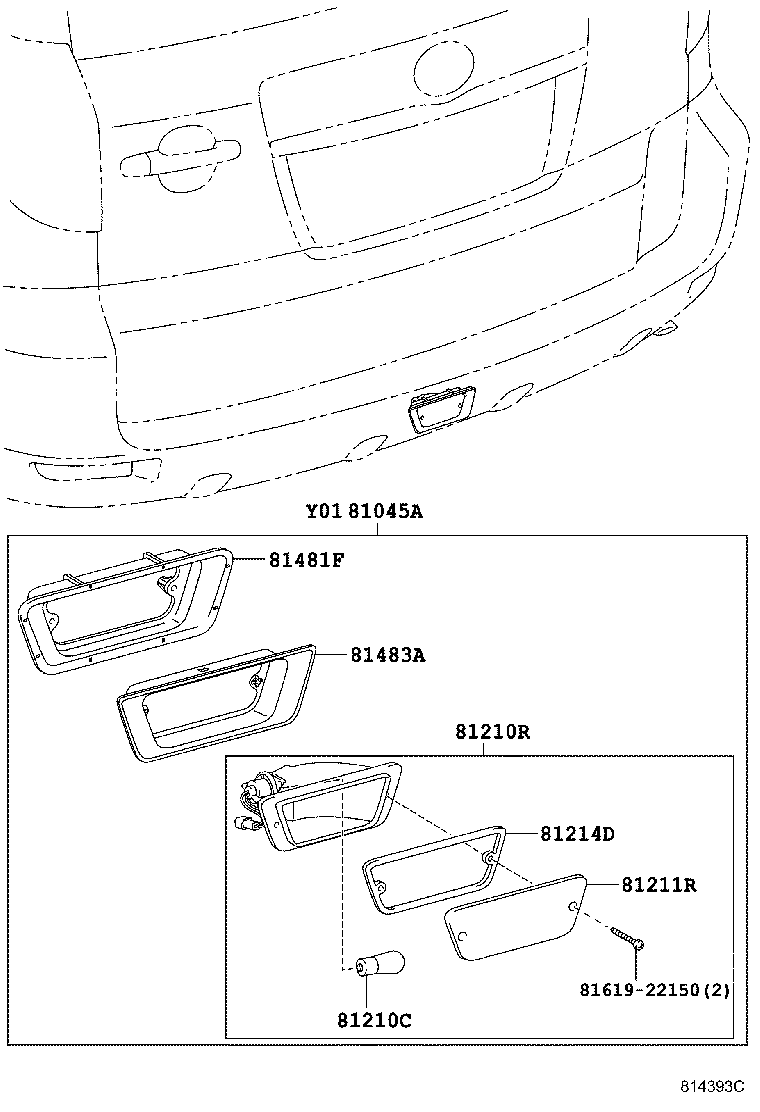

Figure 814393C

814393C 2007-08 → 2010-02

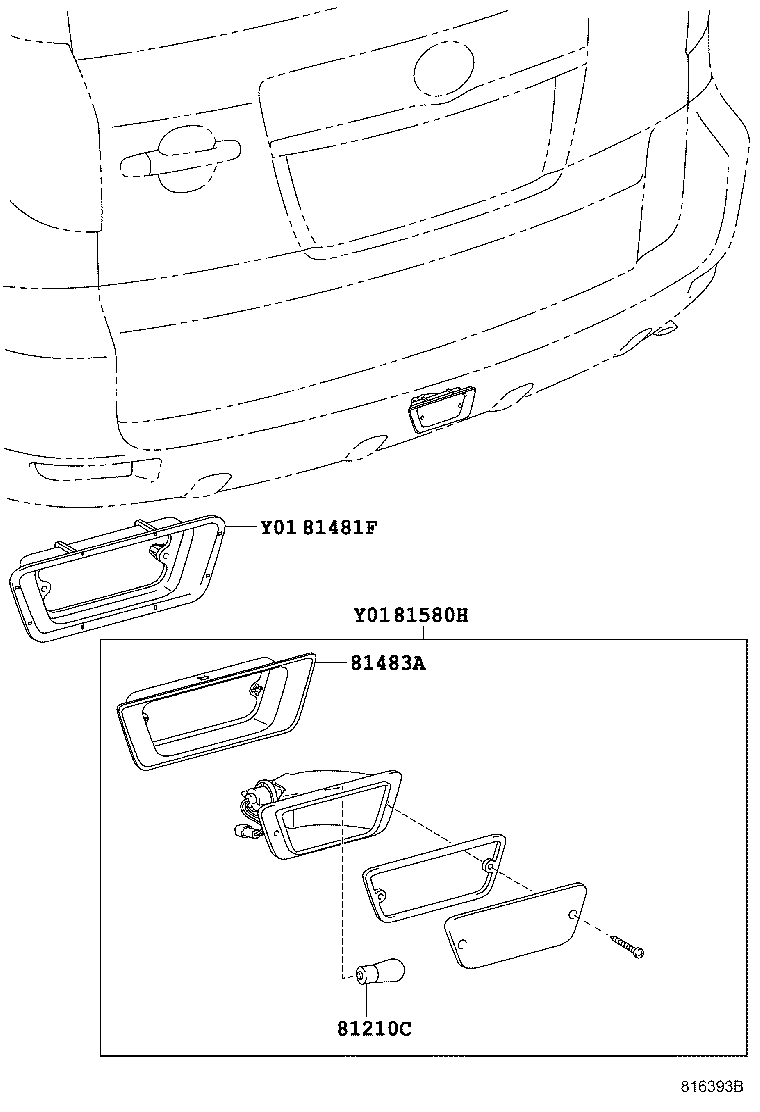

Figure 816393B

816393B 2010-02 → —

Part groups

PNC	Description
81045A	Lamp Set, Rear Fog
81210C	Bulb, Rear Fog Lamp
81210R	Lamp Assy, Rear Fog
81211R	Lens, Rear Fog Lamp
81214D	Gasket, Rear Fog Lamp Body
81215R	Socket & Wire, Rear Fog Lamp
81481F	Bracket, Fog Lamp, RH
81483A	Protector, Fog Lamp
81580H	Lamp Assy, Rear Fog, RH

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
