Toyota RAV4/Vanguard
2005-11 → 2016-06 · chassis ACA3#,GSA33 · catalogue 662130 · Japan
Supported model
Data version 2016-12

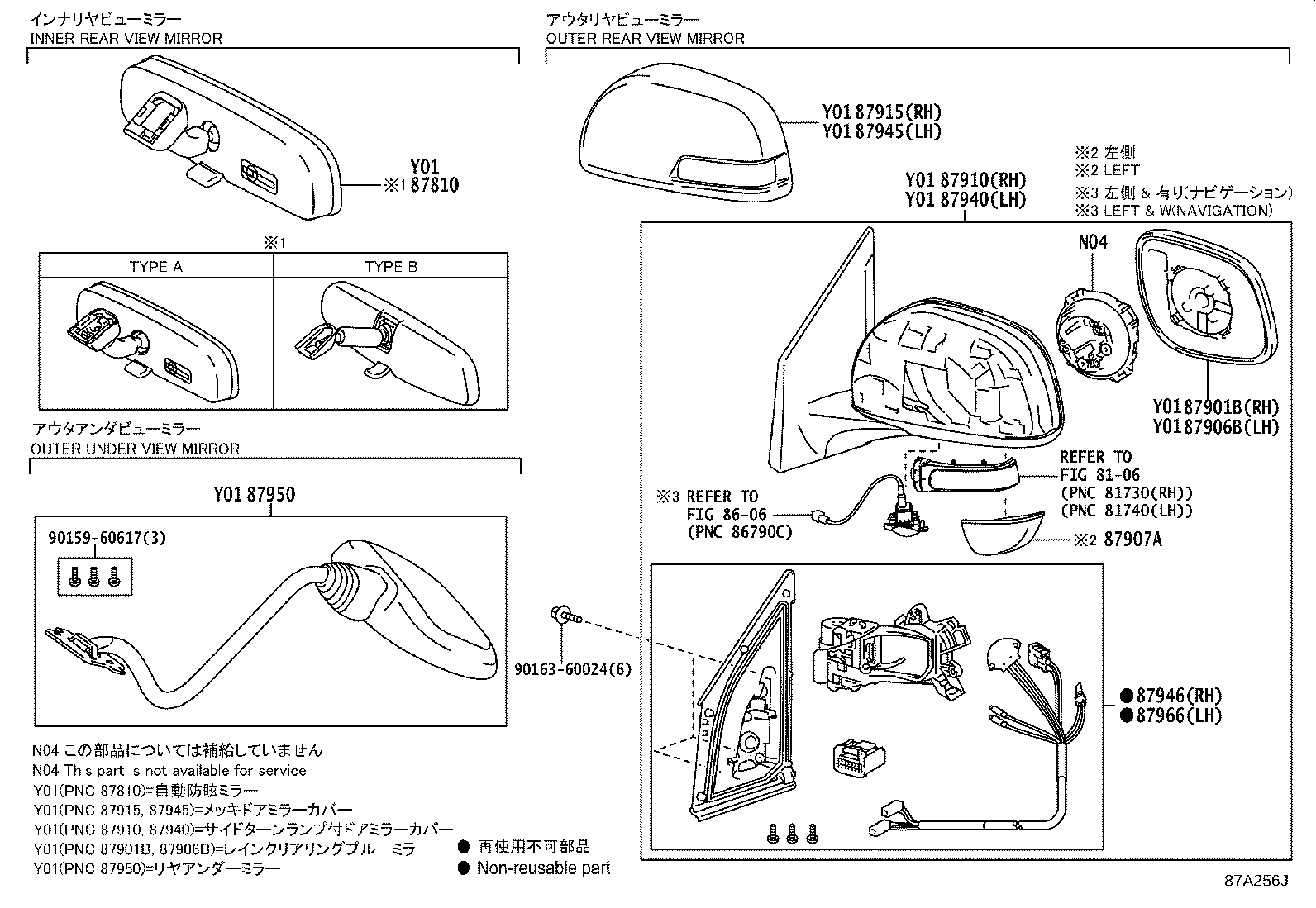

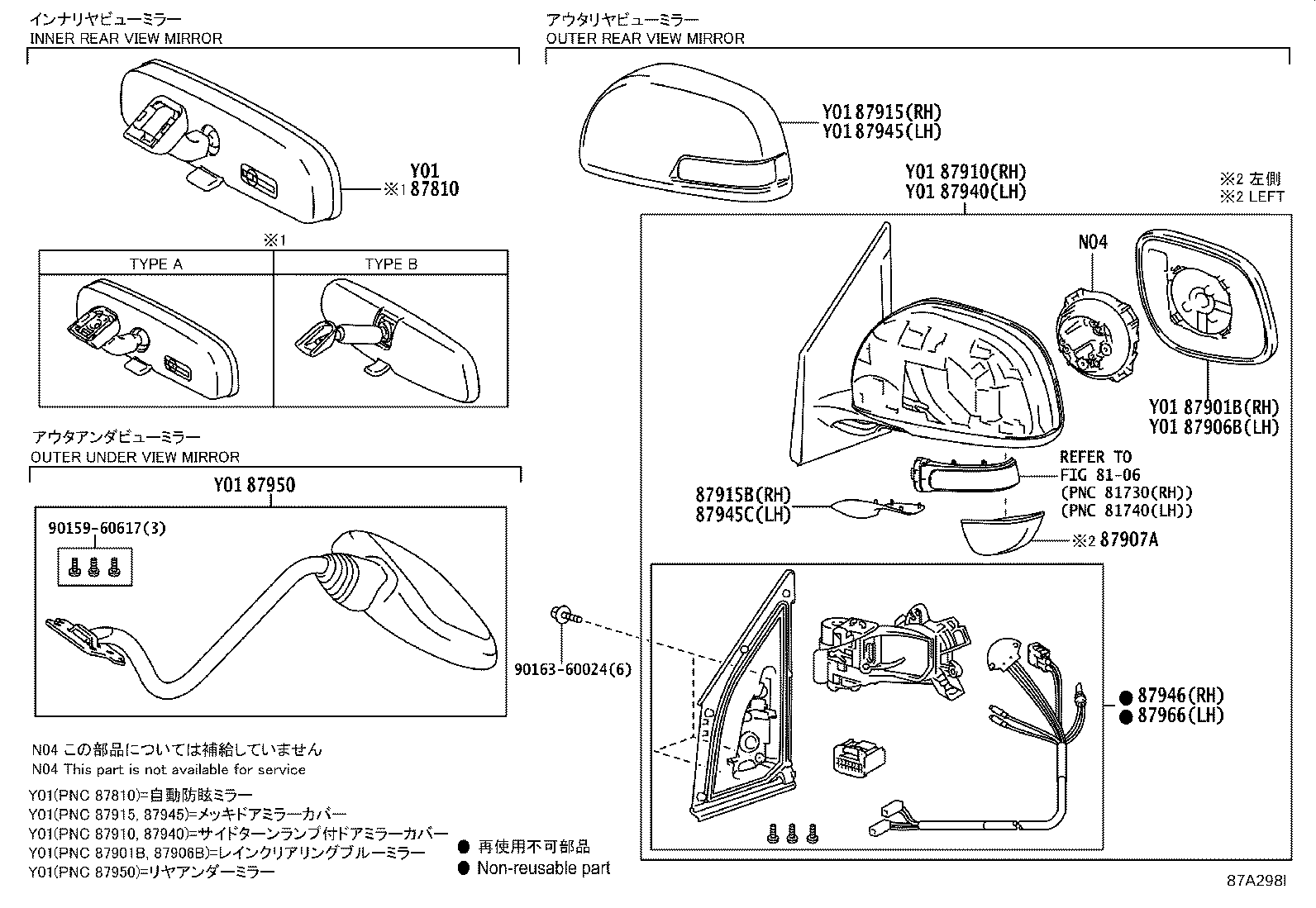

Mirror
15 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 87810 | Mirror Assy, Inner Rear View |
| 87901B | Mirror Sub-assy, Outer Rear View, RH |
| 87906B | Mirror Sub-assy, Outer Rear View, LH |
| 87907A | Mirror Sub-assy, Outer Under Rear View |
| 87910 | Mirror Assy, Outer Rear View, RH |
| 87915 | Cover, Outer Mirror, RH |
| 87915B | Cover, Outer Mirror, Lower RH |
| 87930A | Mirror Assy, Outer Under View |
| 87940 | Mirror Assy, Outer Rear View, LH |
| 87944 | Cover, Front Fender Side View Device, LH |
| 87945 | Cover, Outer Mirror, LH |
| 87945C | Cover, Outer Mirror, Lower LH |
| 87946 | Retractor, Outer Mirror, RH |
| 87950 | Mirror Assy, Outer Under Rear View |
| 87966 | Retractor, Outer Mirror, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
