Toyota RAV4/Vanguard
2005-11 → 2016-06 · chassis ACA3#,GSA33 · catalogue 662130 · Japan
Supported model
Data version 2016-12
Heating & Air Conditioning - Control & Air Duct
21 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 55519 | Plate, Heater Control Name |

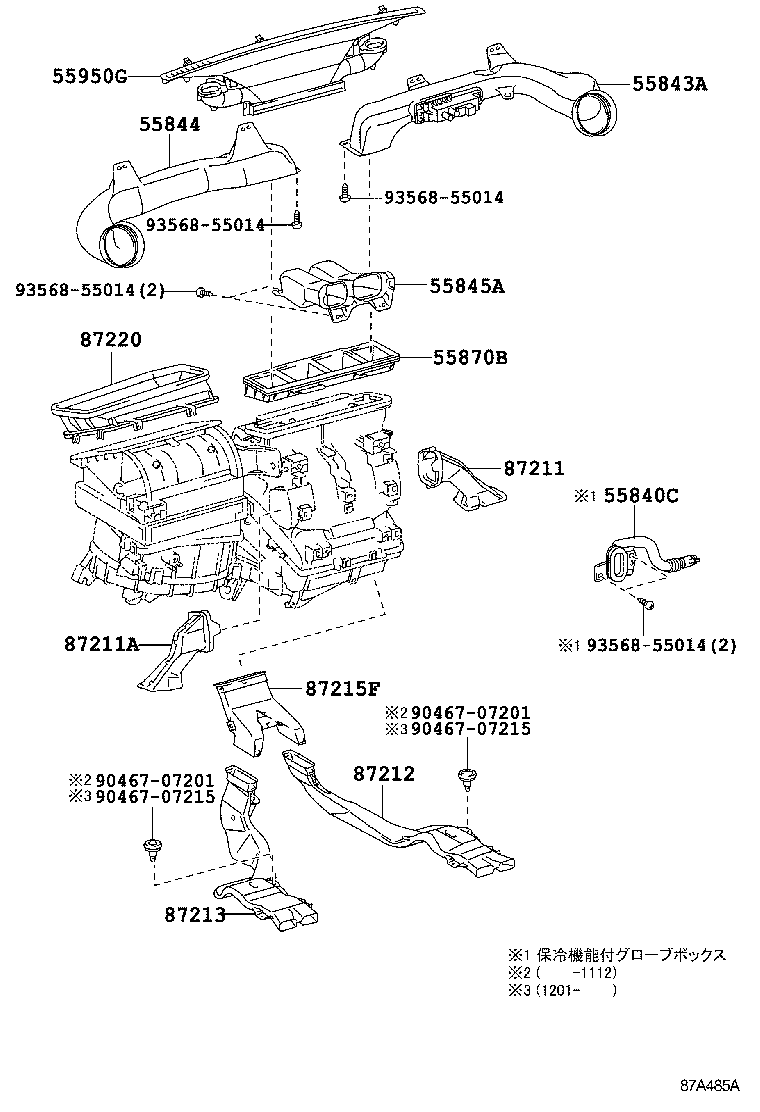

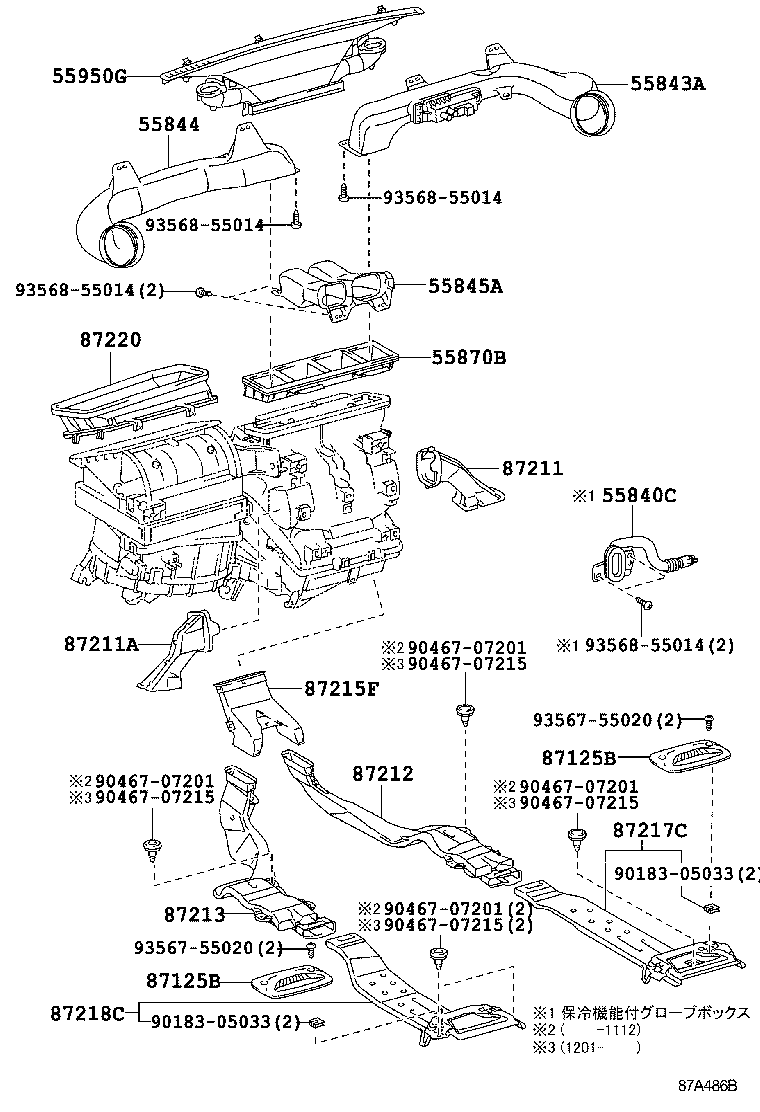

| 55840C | Duct Assy, Heater TO Register, NO.6 |
| 55843A | Duct, Heater TO Register, NO.1 |
| 55844 | Duct, Heater TO Register, NO.2 |
| 55845A | Duct, Heater TO Register, NO.3 |
| 55870B | Duct Assy, Heater TO Register |
| 55900 | Control Assy, Air Conditioner |
| 55950G | Nozzle Assy, Defroster |
| 87125B | Grille, Heater Air Outlet |
| 87211 | Duct, Air, NO.1 |
| 87211A | Duct, Air, NO.2 |
| 87212 | Duct, Air, Rear NO.1 |
| 87213 | Duct, Air, Rear NO.2 |
| 87215F | Duct, Air, Rear NO.3 |
| 87217C | Duct, Air, Rear NO.5 |
| 87218C | Duct, Air, Rear NO.6 |
| 87220 | Duct Assy, Air |

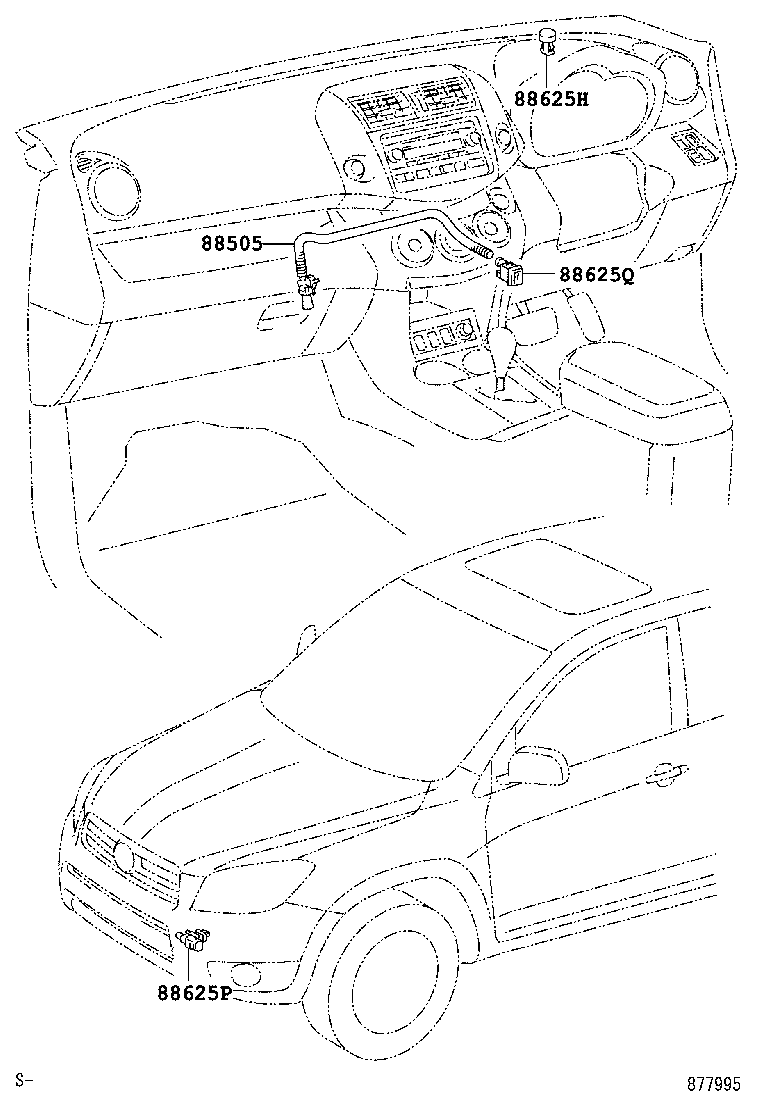

| 88505 | Duct Sub-assy,Air Conditioner |
| 88625H | Thermistor, Cooler (SOLAR SENSOR) |
| 88625P | Thermistor, Cooler (AMBIENT TEMP. SENSOR) |
| 88625Q | Thermistor, Cooler (ROOM TEMP. SENSOR) |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
