Heating & Air Conditioning - Water Piping

4 part groups · 2 illustrations

Illustrations

Figure 877966B

877966B 2005-11 → —

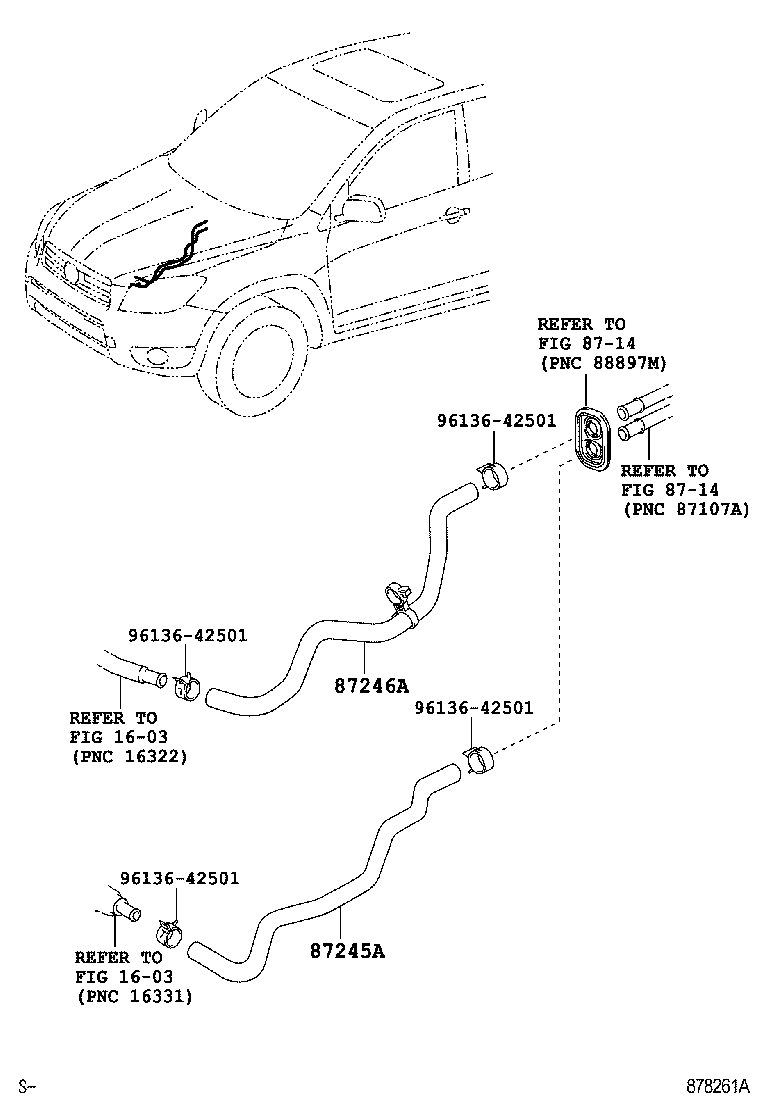

Figure 878261A

878261A 2007-08 → —

Part groups

PNC	Description
87245A	Hose, Heater Water, Inlet A
87246A	Hose, Heater Water, Outlet A
87246B	Hose, Heater Water, Outlet B
87248	Pipe Sub-assy, Water

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
