Toyota RAV4/Vanguard
2005-11 → 2016-06 · chassis ACA3#,GSA33 · catalogue 662130 · Japan
Supported model
Data version 2016-12

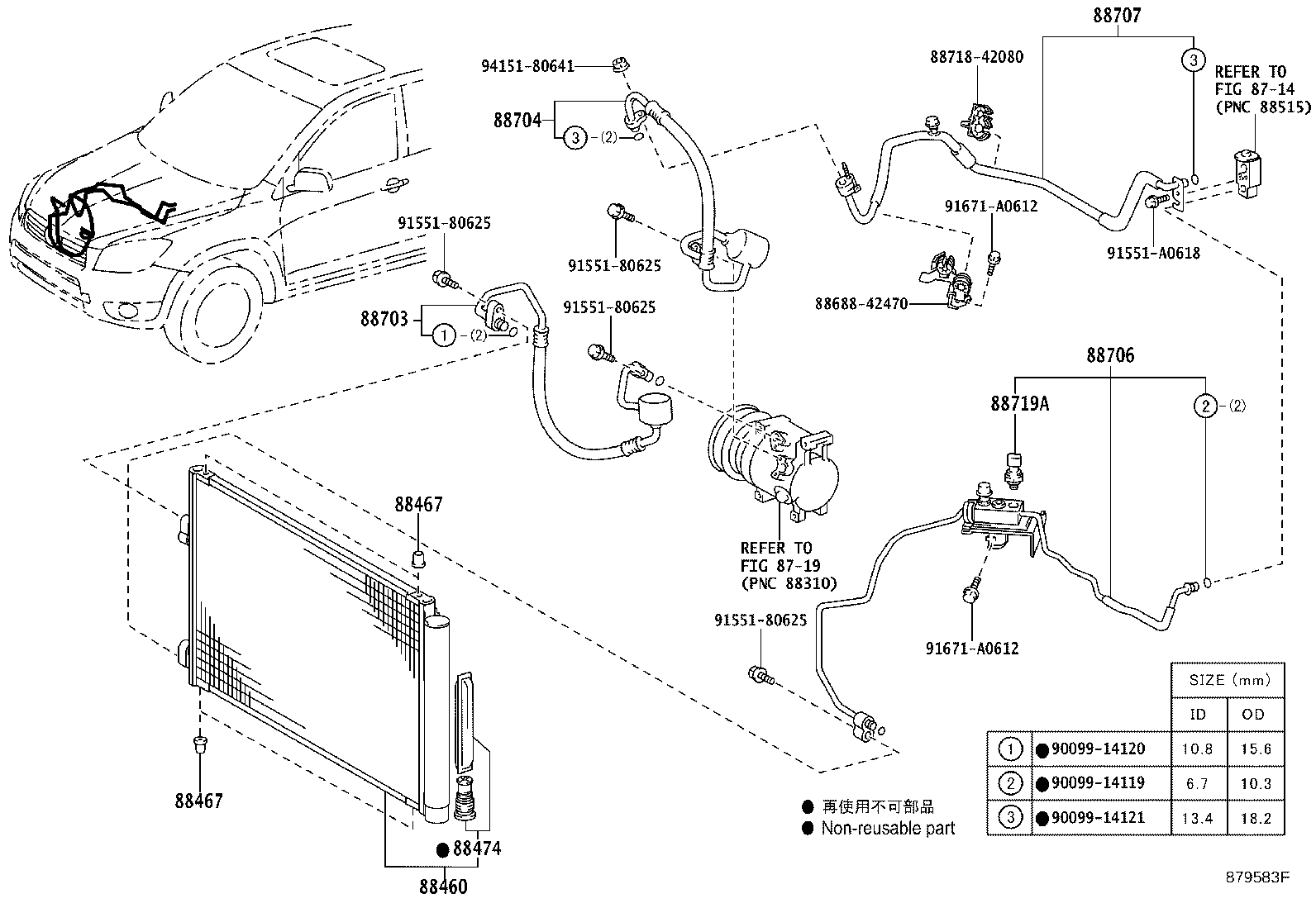

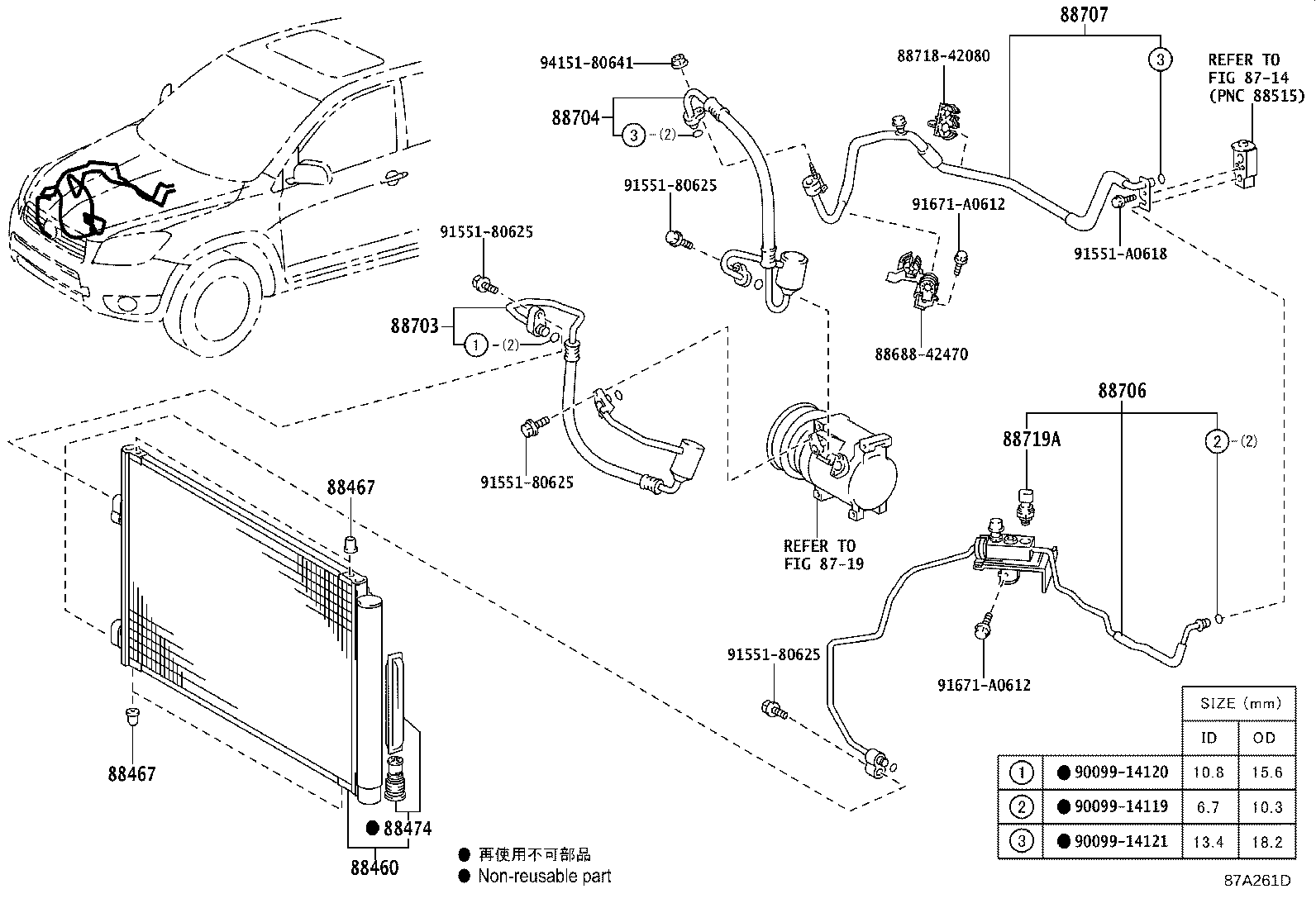

Heating & Air Conditioning - Cooler Piping
8 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 88460 | Condenser Assy, Cooler |
| 88467 | Cushion, Cooler Condenser, NO.1 |
| 88474 | Dryer, Cooler |
| 88703 | Hose Sub-assy, Discharge |
| 88704 | Hose Sub-assy, Suction |
| 88706 | Pipe Sub-assy, Liquid |
| 88707 | Pipe Sub-assy, Suction |
| 88719A | Sensor, Air Conditioner Pressure |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
