Toyota RAV4

2019-04 → present · chassis AXAH5#,MXAA5# · catalogue 662150 · Japan

Supported model Data version 2023-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

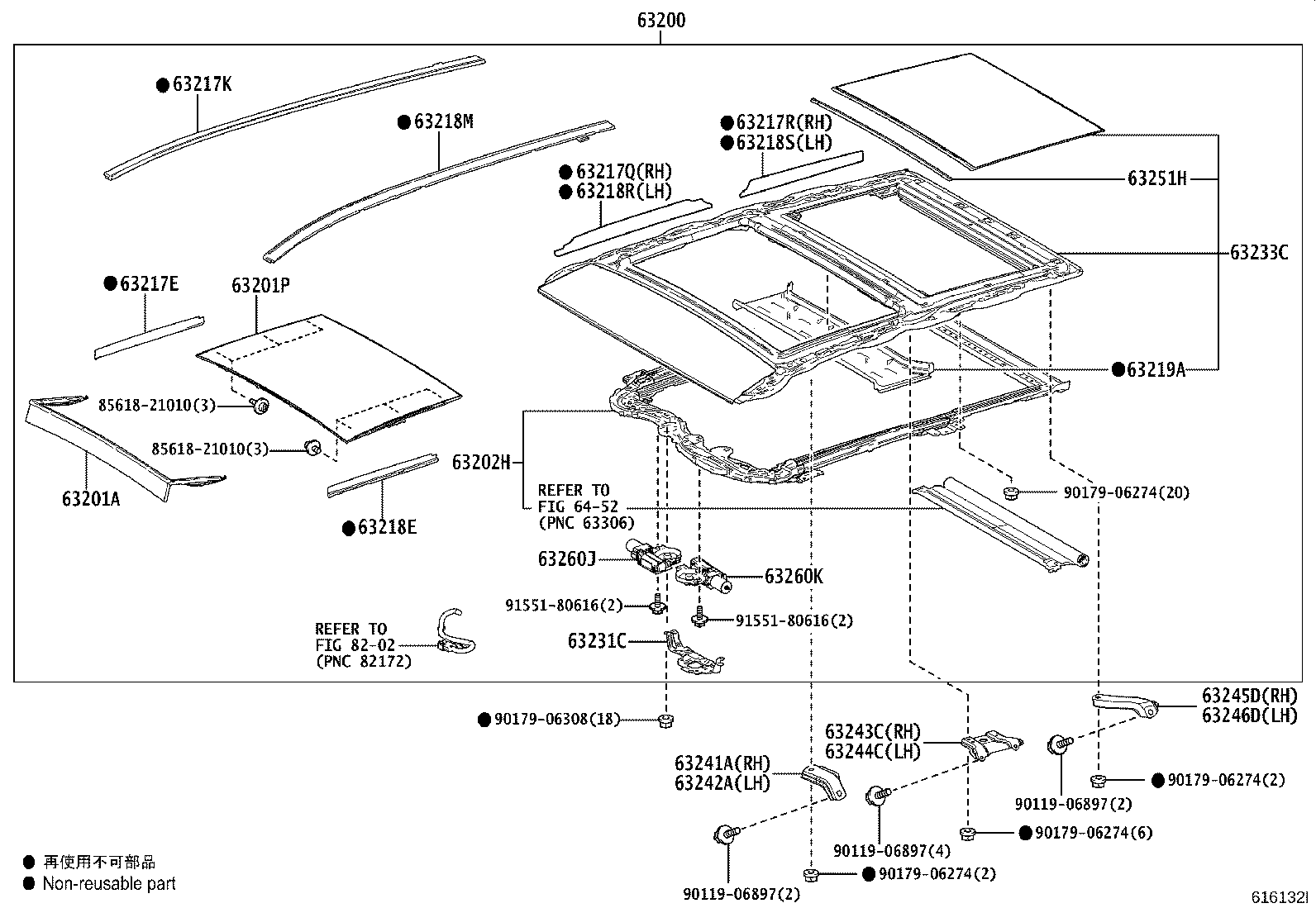

Exploded illustration 616132I 8202 — not listed in this catalogue 63241A — BRACKET, SLIDING ROOF HOUSING FRONT MOUNTING, RH (4 parts) 63242A — BRACKET, SLIDING ROOF HOUSING FRONT MOUNTING, LH (4 parts) 63243C — BRACKET, SLIDING ROOF HOUSING CENTER MOUNTING, RH (5 parts) 63244C — BRACKET, SLIDING ROOF HOUSING CENTER MOUNTING, LH (5 parts) 63245D — BRACKET, SLIDING ROOF HOUSING REAR MOUNTING, RH (4 parts) 63246D — BRACKET, SLIDING ROOF HOUSING REAR MOUNTING, LH (4 parts) 8561821010 — not listed in this catalogue 8561821010 — not listed in this catalogue 9011906897 — not listed in this catalogue 9011906897 — not listed in this catalogue 9011906897 — not listed in this catalogue 9017906274 — not listed in this catalogue 9017906274 — not listed in this catalogue 9017906274 — not listed in this catalogue 9017906274 — not listed in this catalogue 9017906308 — not listed in this catalogue 63201A — PANEL SUB-ASSY, SLIDING ROOF OR REMOVABLE ROOF (4 parts) 63217E — GARNISH, SLIDING ROOF, FRONT RH (4 parts) 63231C — BRACKET, ROOM LAMP (4 parts) 63260K — GEAR ASSY, SLIDING ROOF DRIVE (4 parts) 63260J — GEAR ASSY, SLIDING ROOF DRIVE (4 parts) 63218E — GARNISH, SLIDING ROOF, FRONT LH (4 parts) 63233C — PANEL, SLIDING ROOF HOUSING (6 parts) 63217K — GARNISH, SLIDING ROOF SIDE, RH (9 parts) 63218M — GARNISH, SLIDING ROOF SIDE, LH (9 parts) 63201P — GLASS SUB-ASSY, SLIDING ROOF (5 parts) 63217Q — GARNISH, SLIDING ROOF SIDE, RH (4 parts) 63218R — GARNISH, SLIDING ROOF SIDE, LH (4 parts) 63217R — GARNISH, SLIDING ROOF SIDE, RH (4 parts) 63218S — GARNISH, SLIDING ROOF SIDE, LH (4 parts) 9155180616 — not listed in this catalogue 9155180616 — not listed in this catalogue 63251H — WEATHERSTRIP, SLIDING ROOF (5 parts) 63200 — HOUSING ASSY, MOON ROOF (15 parts) 63219A — GARNISH, SLIDING ROOF, REAR (4 parts) 6452 — not listed in this catalogue 63202H — RAIL SUB-ASSY, SLIDE ROOF (10 parts)
616132I · 24 callouts, 14 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
129 parts on this figure
Part number Description Fitment Price
63200 — Housing Assy, Moon Roof
63200-42160-B1 note Housing Assy, Moon Roof
2019-04 → 2020-05 ended
AXAH54,MXAA54 G,HBDG —
63200-42160-B1 note Housing Assy, Moon Roof
2019-04 → 2020-05 ended
MXAA54 ADVEN —
63200-42160-C1 note Housing Assy, Moon Roof
2019-04 → 2020-05 ended
MXAA54 ADVEN —
63200-42161-B1 note Housing Assy, Moon Roof
2020-06 → 2020-07 ended
MXAA54 ADVEN —
63200-42161-B1 note Housing Assy, Moon Roof
2020-06 → 2020-07 ended
AXAH54,MXAA54 G,HBDG —
63200-42162-B1 note Housing Assy, Moon Roof
2020-08 → 2020-11 ended
MXAA54 ADVEN —
63200-42162-B1 note Housing Assy, Moon Roof
2020-08 → 2020-11 ended
AXAH54,MXAA54 G,HBDG —
63200-42163-B1 note Housing Assy, Moon Roof
2020-12 → 2021-06 ended
MXAA54 ADVEN —
63200-42163-B1 note Housing Assy, Moon Roof
2020-12 → 2021-06 ended
AXAH54,MXAA54 G,HBDG —
63200-42164-B1 note Housing Assy, Moon Roof
2021-07 → 2022-10 ended
AXAH54,MXAA54 G,HBDG ¥293,000
63200-42164-B1 note Housing Assy, Moon Roof
2021-07 → 2022-10 ended
AXAH54,MXAA54 ADVEN ¥293,000
63200-42164-B1 note Housing Assy, Moon Roof
2022-10 → 2023-10 ended
AXAH54,MXAA54 ADVEN ¥293,000
63200-42164-B1 note Housing Assy, Moon Roof
2022-10 → 2023-10 ended
AXAH54,MXAA54 G ¥293,000
63200-42164-B1 note Housing Assy, Moon Roof
2023-10 → —
AXAH54,MXAA54 ADVEN ¥293,000
63200-42164-B1 note Housing Assy, Moon Roof
2023-10 → —
AXAH54,MXAA54 G ¥293,000
63201A — Panel Sub-assy, Sliding Roof OR Removable Roof
63201-42150 note Panel Sub-assy, Sliding Roof OR Removable Roof
2019-04 → 2020-07 ended
AXAH54,MXAA54 ADVEN,G,HBDG ¥7,000
63201-42150 note Panel Sub-assy, Sliding Roof OR Removable Roof
2020-08 → 2022-10 ended
AXAH54,MXAA54 ADVEN,G,HBDG ¥7,000
63201-42150 note Panel Sub-assy, Sliding Roof OR Removable Roof
2022-10 → 2023-10 ended
AXAH54,MXAA54 ADVEN,G ¥7,000
63201-42150 note Panel Sub-assy, Sliding Roof OR Removable Roof
2023-10 → —
AXAH54,MXAA54 ADVEN,G ¥7,000
63201P — Glass Sub-assy, Sliding Roof
63201-42160 note Glass Sub-assy, Sliding Roof
2019-04 → 2020-07 ended
AXAH54,MXAA54 ADVEN,G,HBDG ¥51,600
63201-42160 note Glass Sub-assy, Sliding Roof
2020-08 → 2021-06 ended
AXAH54,MXAA54 ADVEN,G,HBDG ¥51,600
63201-42161 note Glass Sub-assy, Sliding Roof
2021-07 → 2022-10 ended
AXAH54,MXAA54 ADVEN,G,HBDG ¥46,800
63201-42161 note Glass Sub-assy, Sliding Roof
2022-10 → 2023-10 ended
AXAH54,MXAA54 ADVEN,G ¥46,800
63201-42161 note Glass Sub-assy, Sliding Roof
2023-10 → —
AXAH54,MXAA54 ADVEN,G ¥46,800
63202H — Rail Sub-assy, Slide Roof
63202-42100-B1 note Rail Sub-assy, Slide Roof
2019-04 → 2020-07 ended
MXAA54 ADVEN ¥67,000
63202-42100-B1 note Rail Sub-assy, Slide Roof
2019-04 → 2020-07 ended
AXAH54,MXAA54 G,HBDG ¥67,000
63202-42101-B1 note Rail Sub-assy, Slide Roof
2020-08 → 2021-11 ended
MXAA54 ADVEN ¥32,200
63202-42101-B1 note Rail Sub-assy, Slide Roof
2020-08 → 2021-11 ended
AXAH54,MXAA54 G,HBDG ¥32,200
63202-42102-B1 note Rail Sub-assy, Slide Roof
2021-12 → 2022-10 ended
AXAH54,MXAA54 G,HBDG ¥50,700
63202-42102-B1 note Rail Sub-assy, Slide Roof
2021-12 → 2022-10 ended
AXAH54,MXAA54 ADVEN ¥50,700
63202-42102-B1 note Rail Sub-assy, Slide Roof
2022-10 → 2023-10 ended
AXAH54,MXAA54 ADVEN ¥50,700
63202-42102-B1 note Rail Sub-assy, Slide Roof
2022-10 → 2023-10 ended
AXAH54,MXAA54 G ¥50,700
63202-42102-B1 note Rail Sub-assy, Slide Roof
2023-10 → —
AXAH54,MXAA54 G ¥50,700
63202-42102-B1 note Rail Sub-assy, Slide Roof
2023-10 → —
AXAH54,MXAA54 ADVEN ¥50,700
63217E — Garnish, Sliding Roof, Front RH
63217-42010 note Garnish, Sliding Roof, Front RH
2019-04 → 2020-07 ended
AXAH54,MXAA54 ADVEN,G,HBDG ¥1,070
63217-42010 note Garnish, Sliding Roof, Front RH
2020-08 → 2022-10 ended
AXAH54,MXAA54 ADVEN,G,HBDG ¥1,070
63217-42010 note Garnish, Sliding Roof, Front RH
2022-10 → 2023-10 ended
AXAH54,MXAA54 ADVEN,G ¥1,070
63217-42010 note Garnish, Sliding Roof, Front RH
2023-10 → —
AXAH54,MXAA54 ADVEN,G ¥1,070
63217K — Garnish, Sliding Roof Side, RH
63217-42040 note Garnish, Sliding Roof Side, RH
2019-04 → 2020-07 ended
AXAH54,MXAA54 ADVEN,G,HBDG ¥7,300
63217-47020 note Garnish, Sliding Roof Side, RH
2019-04 → 2020-07 ended
AXAH5#,MXAA5# HBDX,X ¥1,190
63217-42040 note Garnish, Sliding Roof Side, RH
2020-08 → 2022-10 ended
AXAH54,MXAA54 ADVEN,G,HBDG ¥7,300
63217-47020 note Garnish, Sliding Roof Side, RH
2020-08 → 2022-10 ended
AXAH5#,MXAA5# HBDX,X ¥1,190
63217-42040 note Garnish, Sliding Roof Side, RH
2022-10 → 2023-10 ended
AXAH54,MXAA54 ADVEN,G ¥7,300
63217-47020 note Garnish, Sliding Roof Side, RH
2022-10 → 2023-10 ended
AXAH5#,MXAA5# X ¥1,190
63217-42040 note Garnish, Sliding Roof Side, RH
2023-10 → —
AXAH54,MXAA54 ADVEN,G ¥7,300
63217-47020 note Garnish, Sliding Roof Side, RH
2023-10 → 2024-10 ended
AXAH52,MXAA52 ¥1,190
63217-47020 note Garnish, Sliding Roof Side, RH
2023-10 → —
AXAH54,MXAA54 X ¥1,190
63217Q — Garnish, Sliding Roof Side, RH
63217-42020 note Garnish, Sliding Roof Side, RH
2019-04 → 2020-07 ended
AXAH54,MXAA54 ADVEN,G,HBDG ¥1,320
63217-42020 note Garnish, Sliding Roof Side, RH
2020-08 → 2022-10 ended
AXAH54,MXAA54 ADVEN,G,HBDG ¥1,320
63217-42020 note Garnish, Sliding Roof Side, RH
2022-10 → 2023-10 ended
AXAH54,MXAA54 ADVEN,G ¥1,320
63217-42020 note Garnish, Sliding Roof Side, RH
2023-10 → —
AXAH54,MXAA54 ADVEN,G ¥1,320
63217R — Garnish, Sliding Roof Side, RH
63217-42030 note Garnish, Sliding Roof Side, RH
2019-04 → 2020-07 ended
AXAH54,MXAA54 ADVEN,G,HBDG ¥1,190
63217-42030 note Garnish, Sliding Roof Side, RH
2020-08 → 2022-10 ended
AXAH54,MXAA54 ADVEN,G,HBDG ¥1,190
63217-42030 note Garnish, Sliding Roof Side, RH
2022-10 → 2023-10 ended
AXAH54,MXAA54 ADVEN,G ¥1,190
63217-42030 note Garnish, Sliding Roof Side, RH
2023-10 → —
AXAH54,MXAA54 ADVEN,G ¥1,190
63218E — Garnish, Sliding Roof, Front LH
63218-42020 note Garnish, Sliding Roof, Front LH
2019-04 → 2020-07 ended
AXAH54,MXAA54 ADVEN,G,HBDG ¥1,070
63218-42020 note Garnish, Sliding Roof, Front LH
2020-08 → 2022-10 ended
AXAH54,MXAA54 ADVEN,G,HBDG ¥1,070
63218-42020 note Garnish, Sliding Roof, Front LH
2022-10 → 2023-10 ended
AXAH54,MXAA54 ADVEN,G ¥1,070
63218-42020 note Garnish, Sliding Roof, Front LH
2023-10 → —
AXAH54,MXAA54 ADVEN,G ¥1,070
63218M — Garnish, Sliding Roof Side, LH
63217-47020 note Garnish, Sliding Roof Side, LH
2019-04 → 2020-07 ended
AXAH5#,MXAA5# HBDX,X ¥1,190
63218-42050 note Garnish, Sliding Roof Side, LH
2019-04 → 2020-07 ended
AXAH54,MXAA54 ADVEN,G,HBDG ¥7,300
63217-47020 note Garnish, Sliding Roof Side, LH
2020-08 → 2022-10 ended
AXAH5#,MXAA5# HBDX,X ¥1,190
63218-42050 note Garnish, Sliding Roof Side, LH
2020-08 → 2022-10 ended
AXAH54,MXAA54 ADVEN,G,HBDG ¥7,300
63217-47020 note Garnish, Sliding Roof Side, LH
2022-10 → 2023-10 ended
AXAH5#,MXAA5# X ¥1,190
63218-42050 note Garnish, Sliding Roof Side, LH
2022-10 → 2023-10 ended
AXAH54,MXAA54 ADVEN,G ¥7,300
63217-47020 note Garnish, Sliding Roof Side, LH
2023-10 → —
AXAH54,MXAA54 X ¥1,190
63217-47020 note Garnish, Sliding Roof Side, LH
2023-10 → 2024-10 ended
AXAH52,MXAA52 ¥1,190
63218-42050 note Garnish, Sliding Roof Side, LH
2023-10 → —
AXAH54,MXAA54 ADVEN,G ¥7,300
63218R — Garnish, Sliding Roof Side, LH
63218-42030 note Garnish, Sliding Roof Side, LH
2019-04 → 2020-07 ended
AXAH54,MXAA54 ADVEN,G,HBDG ¥1,320
63218-42030 note Garnish, Sliding Roof Side, LH
2020-08 → 2022-10 ended
AXAH54,MXAA54 ADVEN,G,HBDG ¥1,320
63218-42030 note Garnish, Sliding Roof Side, LH
2022-10 → 2023-10 ended
AXAH54,MXAA54 ADVEN,G ¥1,320
63218-42030 note Garnish, Sliding Roof Side, LH
2023-10 → —
AXAH54,MXAA54 ADVEN,G ¥1,320
63218S — Garnish, Sliding Roof Side, LH
63218-42040 note Garnish, Sliding Roof Side, LH
2019-04 → 2020-07 ended
AXAH54,MXAA54 ADVEN,G,HBDG ¥1,190
63218-42040 note Garnish, Sliding Roof Side, LH
2020-08 → 2022-10 ended
AXAH54,MXAA54 ADVEN,G,HBDG ¥1,190
63218-42040 note Garnish, Sliding Roof Side, LH
2022-10 → 2023-10 ended
AXAH54,MXAA54 ADVEN,G ¥1,190
63218-42040 note Garnish, Sliding Roof Side, LH
2023-10 → —
AXAH54,MXAA54 ADVEN,G ¥1,190
63219A — Garnish, Sliding Roof, Rear
63219-42010 note Garnish, Sliding Roof, Rear
2019-04 → 2020-07 ended
AXAH54,MXAA54 ADVEN,G,HBDG ¥6,600
63219-42010 note Garnish, Sliding Roof, Rear
2020-08 → 2022-10 ended
AXAH54,MXAA54 ADVEN,G,HBDG ¥6,600
63219-42010 note Garnish, Sliding Roof, Rear
2022-10 → 2023-10 ended
AXAH54,MXAA54 ADVEN,G ¥6,600
63219-42010 note Garnish, Sliding Roof, Rear
2023-10 → —
AXAH54,MXAA54 ADVEN,G ¥6,600
63231C — Bracket, Room Lamp
63231-42050 note Bracket, Room Lamp
2019-04 → 2020-07 ended
AXAH54,MXAA54 ADVEN,G,HBDG ¥1,480
63231-42050 note Bracket, Room Lamp
2020-08 → 2022-10 ended
AXAH54,MXAA54 ADVEN,G,HBDG ¥1,480
63231-42050 note Bracket, Room Lamp
2022-10 → 2023-10 ended
AXAH54,MXAA54 ADVEN,G ¥1,480
63231-42050 note Bracket, Room Lamp
2023-10 → —
AXAH54,MXAA54 ADVEN,G ¥1,480
63233C — Panel, Sliding Roof Housing
63233-42060 note Panel, Sliding Roof Housing
2019-04 → 2020-05 ended
AXAH54,MXAA54 ADVEN,G,HBDG ¥171,000
63233-42061 note Panel, Sliding Roof Housing
2020-06 → 2020-07 ended
AXAH54,MXAA54 ADVEN,G,HBDG ¥171,000
63233-42061 note Panel, Sliding Roof Housing
2020-08 → 2020-11 ended
AXAH54,MXAA54 ADVEN,G,HBDG ¥171,000
63233-42062 note Panel, Sliding Roof Housing
2020-12 → 2022-10 ended
AXAH54,MXAA54 ADVEN,G,HBDG ¥129,000
63233-42062 note Panel, Sliding Roof Housing
2022-10 → 2023-10 ended
AXAH54,MXAA54 ADVEN,G ¥129,000
63233-42062 note Panel, Sliding Roof Housing
2023-10 → —
AXAH54,MXAA54 ADVEN,G ¥129,000
63241A — Bracket, Sliding Roof Housing Front Mounting, RH
63241-42100 note Bracket, Sliding Roof Housing Front Mounting, RH
2019-04 → 2020-07 ended
AXAH54,MXAA54 ADVEN,G,HBDG ¥370
63241-42100 note Bracket, Sliding Roof Housing Front Mounting, RH
2020-08 → 2022-10 ended
AXAH54,MXAA54 ADVEN,G,HBDG ¥370
63241-42100 note Bracket, Sliding Roof Housing Front Mounting, RH
2022-10 → 2023-10 ended
AXAH54,MXAA54 ADVEN,G ¥370
63241-42100 note Bracket, Sliding Roof Housing Front Mounting, RH
2023-10 → —
AXAH54,MXAA54 ADVEN,G ¥370
63242A — Bracket, Sliding Roof Housing Front Mounting, LH
63241-42100 note Bracket, Sliding Roof Housing Front Mounting, LH
2019-04 → 2020-07 ended
AXAH54,MXAA54 ADVEN,G,HBDG ¥370
63241-42100 note Bracket, Sliding Roof Housing Front Mounting, LH
2020-08 → 2022-10 ended
AXAH54,MXAA54 ADVEN,G,HBDG ¥370
63241-42100 note Bracket, Sliding Roof Housing Front Mounting, LH
2022-10 → 2023-10 ended
AXAH54,MXAA54 ADVEN,G ¥370
63241-42100 note Bracket, Sliding Roof Housing Front Mounting, LH
2023-10 → —
AXAH54,MXAA54 ADVEN,G ¥370
63243C — Bracket, Sliding Roof Housing Center Mounting, RH
63243-42050 note Bracket, Sliding Roof Housing Center Mounting, RH
2019-04 → 2020-06 ended
AXAH54,MXAA54 ADVEN,G,HBDG ¥2,080
63243-42050 note Bracket, Sliding Roof Housing Center Mounting, RH
2020-08 → 2020-11 ended
AXAH54,MXAA54 ADVEN,G,HBDG ¥2,080
63243-42051 note Bracket, Sliding Roof Housing Center Mounting, RH
2020-12 → 2022-10 ended
AXAH54,MXAA54 ADVEN,G,HBDG ¥1,570
63243-42051 note Bracket, Sliding Roof Housing Center Mounting, RH
2022-10 → 2023-10 ended
AXAH54,MXAA54 ADVEN,G ¥1,570
63243-42051 note Bracket, Sliding Roof Housing Center Mounting, RH
2023-10 → —
AXAH54,MXAA54 ADVEN,G ¥1,570
63244C — Bracket, Sliding Roof Housing Center Mounting, LH
63244-42030 note Bracket, Sliding Roof Housing Center Mounting, LH
2019-04 → 2020-06 ended
AXAH54,MXAA54 ADVEN,G,HBDG ¥2,080
63244-42030 note Bracket, Sliding Roof Housing Center Mounting, LH
2020-08 → 2020-11 ended
AXAH54,MXAA54 ADVEN,G,HBDG ¥2,080
63244-42031 note Bracket, Sliding Roof Housing Center Mounting, LH
2020-12 → 2022-10 ended
AXAH54,MXAA54 ADVEN,G,HBDG ¥1,570
63244-42031 note Bracket, Sliding Roof Housing Center Mounting, LH
2022-10 → 2023-10 ended
AXAH54,MXAA54 ADVEN,G ¥1,570
63244-42031 note Bracket, Sliding Roof Housing Center Mounting, LH
2023-10 → —
AXAH54,MXAA54 ADVEN,G ¥1,570
63245D — Bracket, Sliding Roof Housing Rear Mounting, RH
63245-42070 note Bracket, Sliding Roof Housing Rear Mounting, RH
2019-04 → 2020-07 ended
AXAH54,MXAA54 ADVEN,G,HBDG ¥580
63245-42070 note Bracket, Sliding Roof Housing Rear Mounting, RH
2020-08 → 2022-10 ended
AXAH54,MXAA54 ADVEN,G,HBDG ¥580
63245-42070 note Bracket, Sliding Roof Housing Rear Mounting, RH
2022-10 → 2023-10 ended
AXAH54,MXAA54 ADVEN,G ¥580
63245-42070 note Bracket, Sliding Roof Housing Rear Mounting, RH
2023-10 → —
AXAH54,MXAA54 ADVEN,G ¥580
63246D — Bracket, Sliding Roof Housing Rear Mounting, LH
63246-42040 note Bracket, Sliding Roof Housing Rear Mounting, LH
2019-04 → 2020-07 ended
AXAH54,MXAA54 ADVEN,G,HBDG ¥580
63246-42040 note Bracket, Sliding Roof Housing Rear Mounting, LH
2020-08 → 2022-10 ended
AXAH54,MXAA54 ADVEN,G,HBDG ¥580
63246-42040 note Bracket, Sliding Roof Housing Rear Mounting, LH
2022-10 → 2023-10 ended
AXAH54,MXAA54 ADVEN,G ¥580
63246-42040 note Bracket, Sliding Roof Housing Rear Mounting, LH
2023-10 → —
AXAH54,MXAA54 ADVEN,G ¥580
63251H — Weatherstrip, Sliding Roof
63251-42040 note Weatherstrip, Sliding Roof
2019-04 → 2020-07 ended
AXAH54,MXAA54 ADVEN,G,HBDG ¥12,800
63251-42040 note Weatherstrip, Sliding Roof
2020-08 → 2020-11 ended
AXAH54,MXAA54 ADVEN,G,HBDG ¥12,800
63251-42041 note Weatherstrip, Sliding Roof
2020-12 → 2022-10 ended
AXAH54,MXAA54 ADVEN,G,HBDG ¥9,700
63251-42041 note Weatherstrip, Sliding Roof
2022-10 → 2023-10 ended
AXAH54,MXAA54 ADVEN,G ¥9,700
63251-42041 note Weatherstrip, Sliding Roof
2023-10 → —
AXAH54,MXAA54 ADVEN,G ¥9,700
63260J — Gear Assy, Sliding Roof Drive
63260-42130 note Gear Assy, Sliding Roof Drive
2019-04 → 2020-07 ended
AXAH54,MXAA54 ADVEN,G,HBDG ¥29,500
63260-42130 note Gear Assy, Sliding Roof Drive
2020-08 → 2022-10 ended
AXAH54,MXAA54 ADVEN,G,HBDG ¥29,500
63260-42130 note Gear Assy, Sliding Roof Drive
2022-10 → 2023-10 ended
AXAH54,MXAA54 ADVEN,G ¥29,500
63260-42130 note Gear Assy, Sliding Roof Drive
2023-10 → —
AXAH54,MXAA54 ADVEN,G ¥29,500
63260K — Gear Assy, Sliding Roof Drive
63260-42140 note Gear Assy, Sliding Roof Drive
2019-04 → 2020-07 ended
AXAH54,MXAA54 ADVEN,G,HBDG ¥29,500
63260-42140 note Gear Assy, Sliding Roof Drive
2020-08 → 2022-10 ended
AXAH54,MXAA54 ADVEN,G,HBDG ¥29,500
63260-42140 note Gear Assy, Sliding Roof Drive
2022-10 → 2023-10 ended
AXAH54,MXAA54 ADVEN,G ¥29,500
63260-42140 note Gear Assy, Sliding Roof Drive
2023-10 → —
AXAH54,MXAA54 ADVEN,G ¥29,500
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
