Toyota RAV4

2019-04 → present · chassis AXAH5#,MXAA5# · catalogue 662150 · Japan

Supported model Data version 2023-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

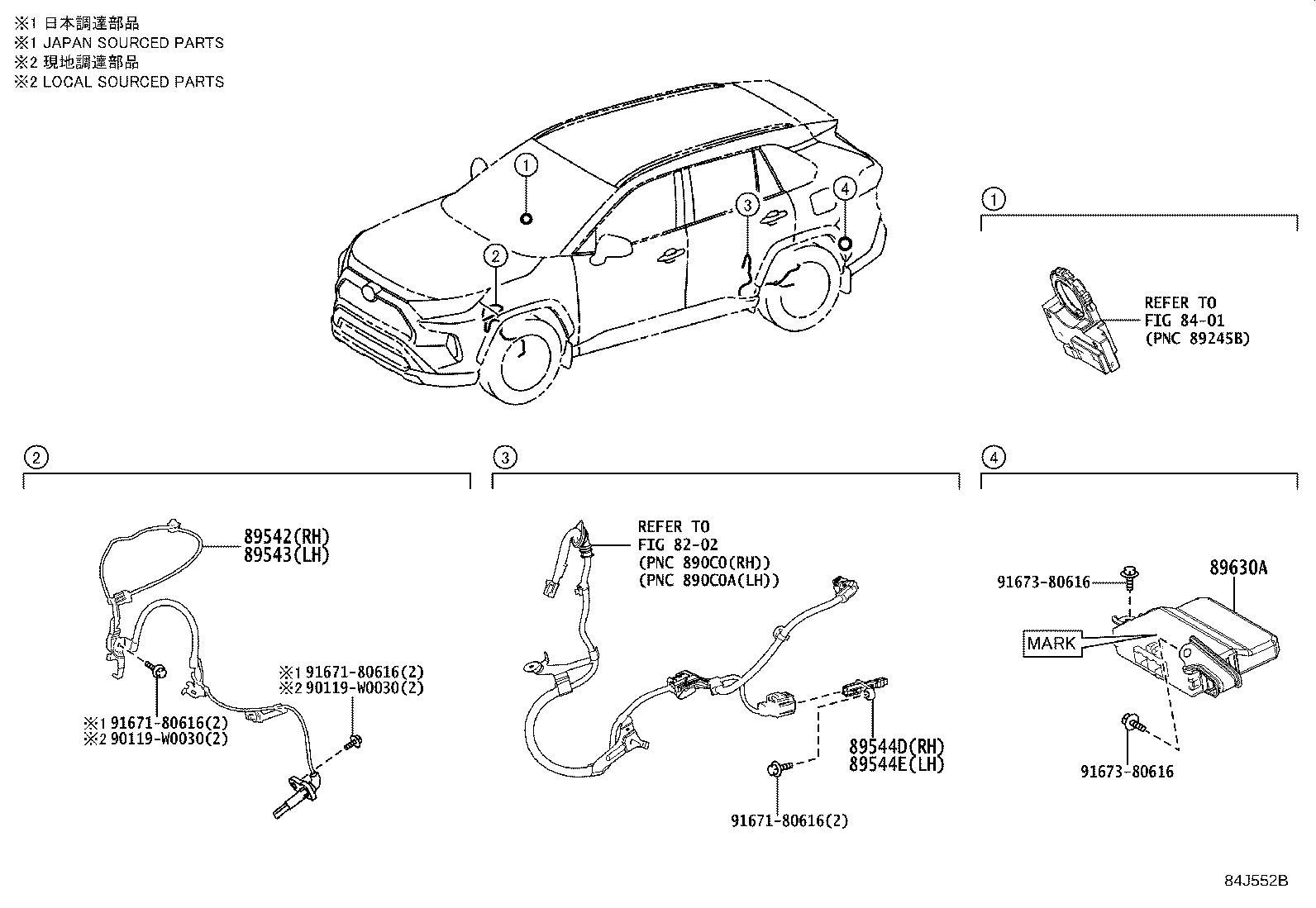

Exploded illustration 84J552B 89544D — SENSOR, SKID CONTROL, REAR RH (5 parts) 89544E — SENSOR, SKID CONTROL, REAR LH (5 parts) 8401 — not listed in this catalogue 9167380616 — not listed in this catalogue 89630A — COMPUTER ASSY, 4WD (17 parts) 8202 — not listed in this catalogue 9167180616 — not listed in this catalogue 90119W0030 — not listed in this catalogue 89542 — SENSOR, SPEED, FRONT RH (6 parts) 89543 — SENSOR, SPEED, FRONT LH (6 parts) 9167180616 — not listed in this catalogue 90119W0030 — not listed in this catalogue 9167380616 — not listed in this catalogue 9167180616 — not listed in this catalogue
84J552B · 5 callouts, 9 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
39 parts on this figure
Part number Description Fitment Price
89542 — Sensor, Speed, Front RH
89542-42070 Sensor, Speed, Front RH
2019-04 → 2020-07 ended
AXAH5#,MXAA5# ¥8,100
89542-42070 Sensor, Speed, Front RH
2020-08 → 2022-10 ended
AXAH5#,MXAA5# ¥8,100
89542-42070 note Sensor, Speed, Front RH
2020-08 → 2022-10 ended
MXAA54 ADVEN ¥8,100
89542-42070 Sensor, Speed, Front RH
2022-10 → 2023-10 ended
AXAH5#,MXAA5# ¥8,100
89542-42070 Sensor, Speed, Front RH
2023-10 → 2024-10 ended
AXAH52,MXAA52 ¥8,100
89542-42070 Sensor, Speed, Front RH
2023-10 → —
AXAH54,MXAA54 ¥8,100
89543 — Sensor, Speed, Front LH
89543-42070 Sensor, Speed, Front LH
2019-04 → 2020-07 ended
AXAH5#,MXAA5# ¥8,100
89543-42070 Sensor, Speed, Front LH
2020-08 → 2022-10 ended
AXAH5#,MXAA5# ¥8,100
89543-42070 note Sensor, Speed, Front LH
2020-08 → 2022-10 ended
MXAA54 ADVEN ¥8,100
89543-42070 Sensor, Speed, Front LH
2022-10 → 2023-10 ended
AXAH5#,MXAA5# ¥8,100
89543-42070 Sensor, Speed, Front LH
2023-10 → —
AXAH54,MXAA54 ¥8,100
89543-42070 Sensor, Speed, Front LH
2023-10 → 2024-10 ended
AXAH52,MXAA52 ¥8,100
89544D — Sensor, Skid Control, Rear RH
89544-0R020 Sensor, Skid Control, Rear RH
2019-04 → 2020-07 ended
AXAH54,MXAA54 ¥9,300
89544-0R020 Sensor, Skid Control, Rear RH
2020-08 → 2022-10 ended
AXAH54,MXAA54 ¥9,300
89544-0R020 Sensor, Skid Control, Rear RH
2022-10 → 2023-10 ended
AXAH54,MXAA54 ¥9,300
89544-06130 Sensor, Skid Control, Rear RH
2025-01 → —
AXAH54,MXAA54 —
89544-0R020 Sensor, Skid Control, Rear RH
2023-10 → 2025-01 ended
AXAH54,MXAA54 ¥9,300
89544E — Sensor, Skid Control, Rear LH
89544-0R020 Sensor, Skid Control, Rear LH
2019-04 → 2020-07 ended
AXAH54,MXAA54 ¥9,300
89544-0R020 Sensor, Skid Control, Rear LH
2020-08 → 2022-10 ended
AXAH54,MXAA54 ¥9,300
89544-0R020 Sensor, Skid Control, Rear LH
2022-10 → 2023-10 ended
AXAH54,MXAA54 ¥9,300
89544-06130 Sensor, Skid Control, Rear LH
2025-01 → —
AXAH54,MXAA54 —
89544-0R020 Sensor, Skid Control, Rear LH
2023-10 → 2025-01 ended
AXAH54,MXAA54 ¥9,300
89630A — Computer Assy, 4WD
89630-42120 Computer Assy, 4WD
2019-04 → 2020-07 ended
MXAA54 G,X ¥21,400
89630-42140 note Computer Assy, 4WD
2019-04 → 2019-06 ended
MXAA54 ADVEN ¥57,600
89630-42140 note Computer Assy, 4WD
2019-04 → 2019-06 ended
MXAA54 G ¥57,600
89630-42160 note Computer Assy, 4WD
2019-07 → 2020-07 ended
MXAA54 ADVEN ¥57,600
89630-42160 note Computer Assy, 4WD
2019-07 → 2020-07 ended
MXAA54 G ¥57,600
89630-42120 Computer Assy, 4WD
2020-08 → 2022-10 ended
MXAA54 G,X ¥21,400
89630-42160 note Computer Assy, 4WD
2020-08 → 2020-09 ended
MXAA54 G ¥57,600
89630-42160 Computer Assy, 4WD
2020-08 → 2020-09 ended
MXAA54 ADVEN ¥57,600
89630-42161 Computer Assy, 4WD
2020-09 → 2022-10 ended
MXAA54 ADVEN ¥43,600
89630-42161 note Computer Assy, 4WD
2020-09 → 2022-10 ended
MXAA54 G ¥43,600
89630-42120 Computer Assy, 4WD
2022-10 → 2023-02 ended
MXAA54 G,X ¥21,400
89630-42121 Computer Assy, 4WD
2023-02 → 2023-09 ended
MXAA54 G,X ¥19,500
89630-42161 Computer Assy, 4WD
2022-10 → 2023-10 ended
MXAA54 ADVEN ¥43,600
89630-42161 note Computer Assy, 4WD
2022-10 → 2023-10 ended
MXAA54 G ¥43,600
89630-42121 Computer Assy, 4WD
2023-10 → —
MXAA54 G,X ¥19,500
89630-42161 Computer Assy, 4WD
2023-10 → —
MXAA54 ADVEN ¥43,600
89630-42161 note Computer Assy, 4WD
2023-10 → —
MXAA54 G ¥43,600
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
