Toyota RAV4

2019-04 → present · chassis AXAH5#,MXAA5# · catalogue 662150 · Japan

Supported model Data version 2023-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Oil Filter

2 part groups · 2 illustrations

Illustrations

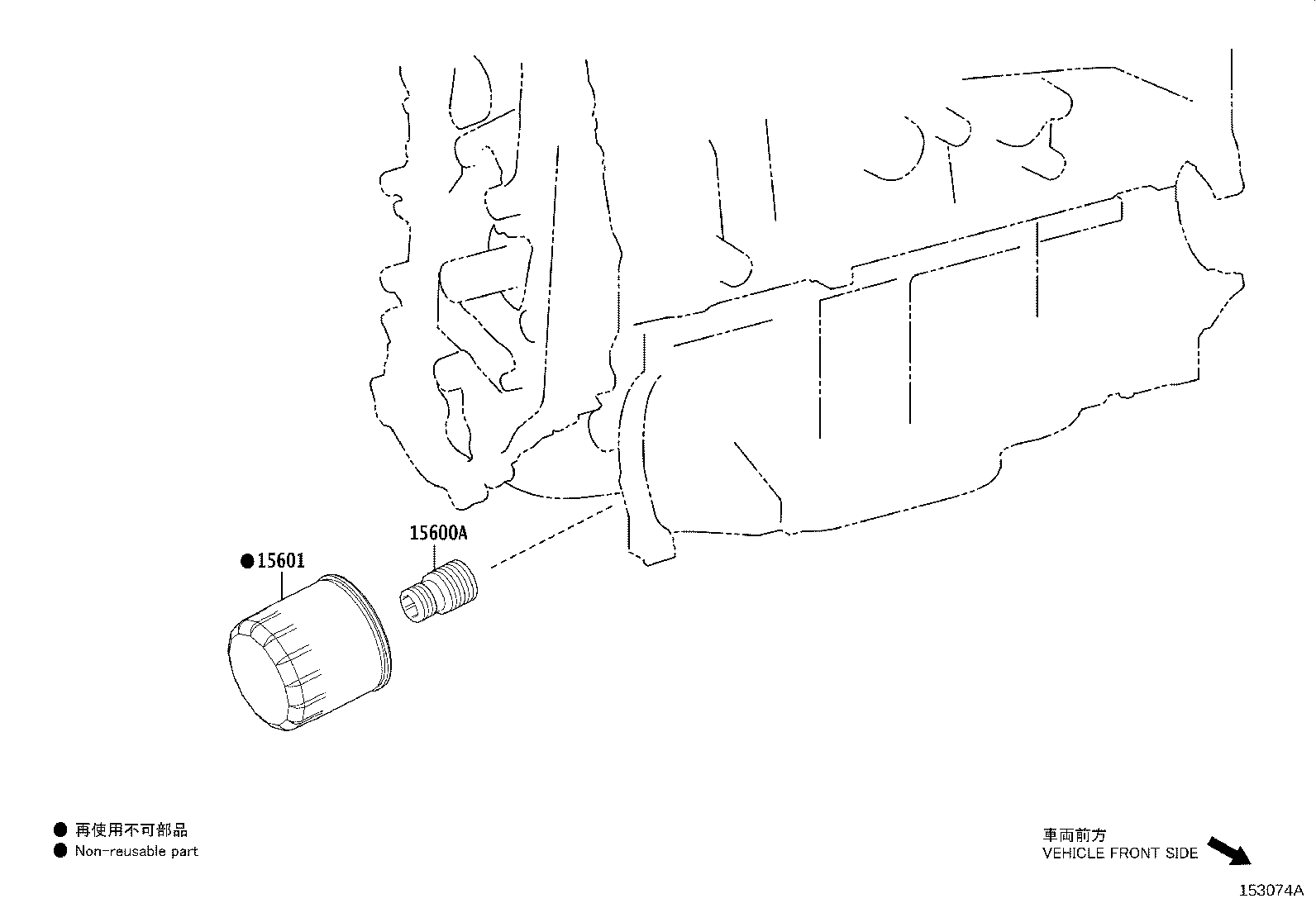

Figure 153078A 153078A 2019-04 → — Figure 153074A 153074A 2019-04 → —

Part groups

PNCDescription
15600A Union(FOR OIL FILTER)
15601 Filter Sub-assy, Oil
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
