Toyota RAV4

2019-04 → present · chassis AXAH5#,MXAA5# · catalogue 662150 · Japan

Supported model Data version 2023-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Roof Headlining & Silencer Pad

18 part groups · 6 illustrations

Illustrations

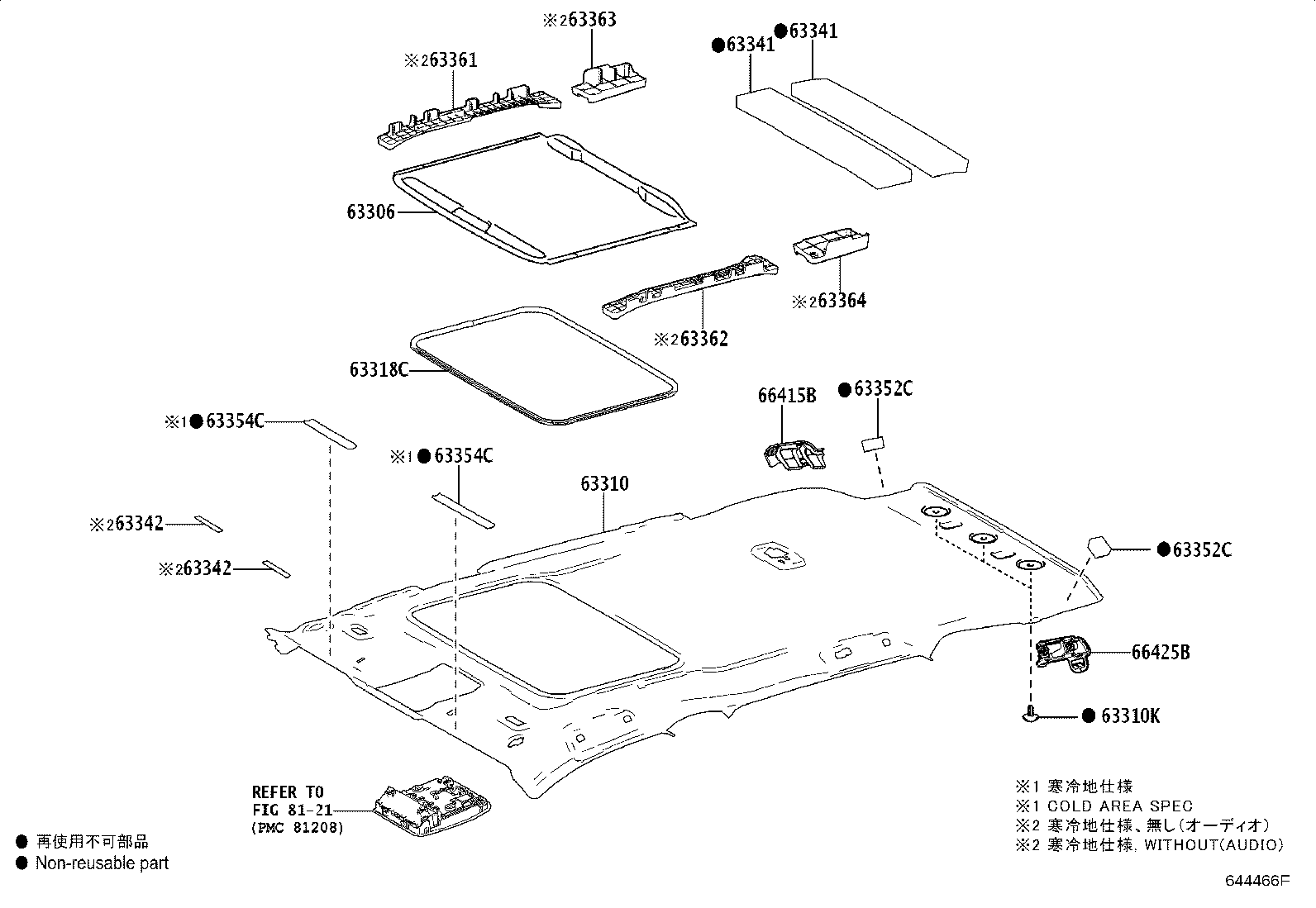

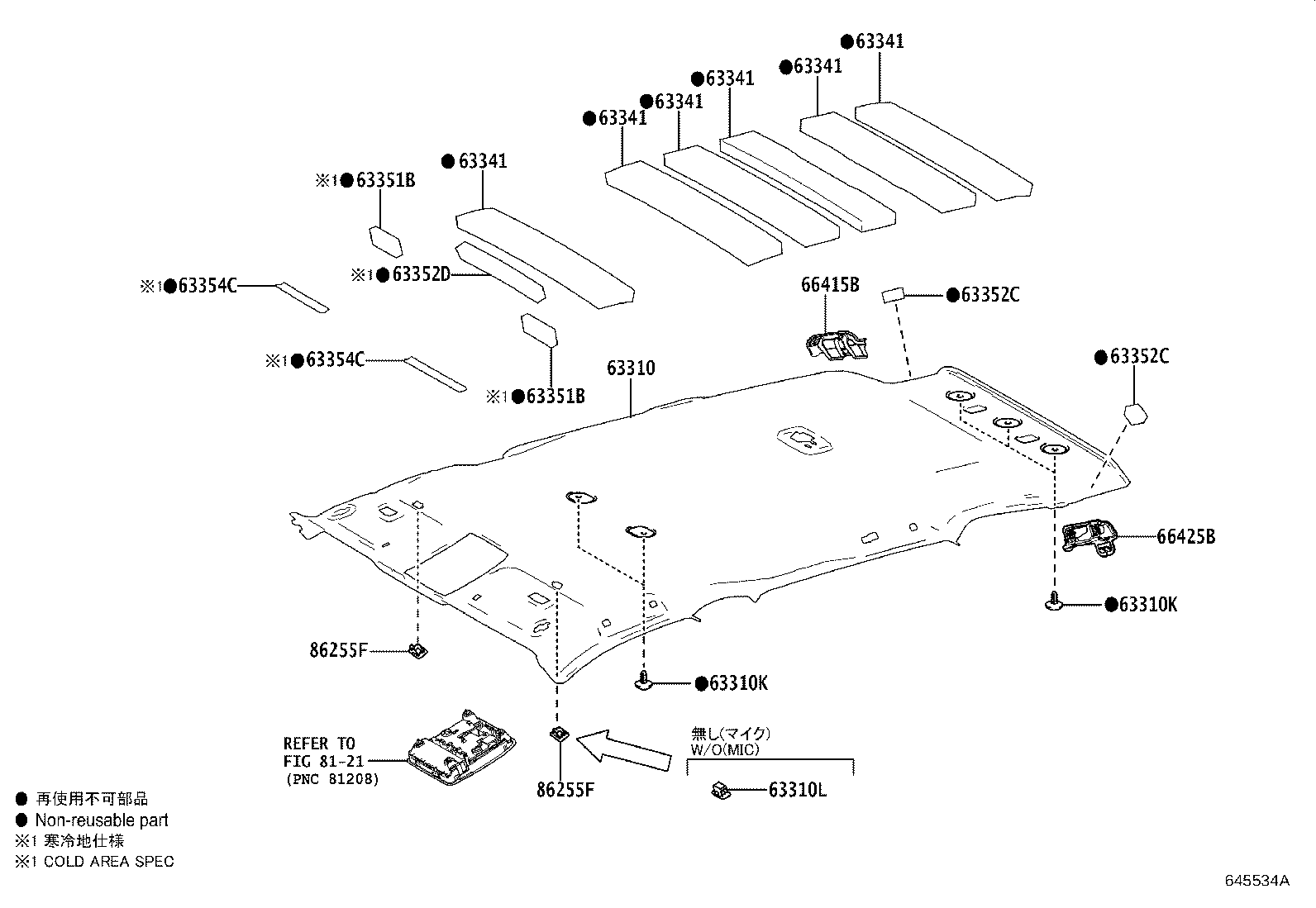

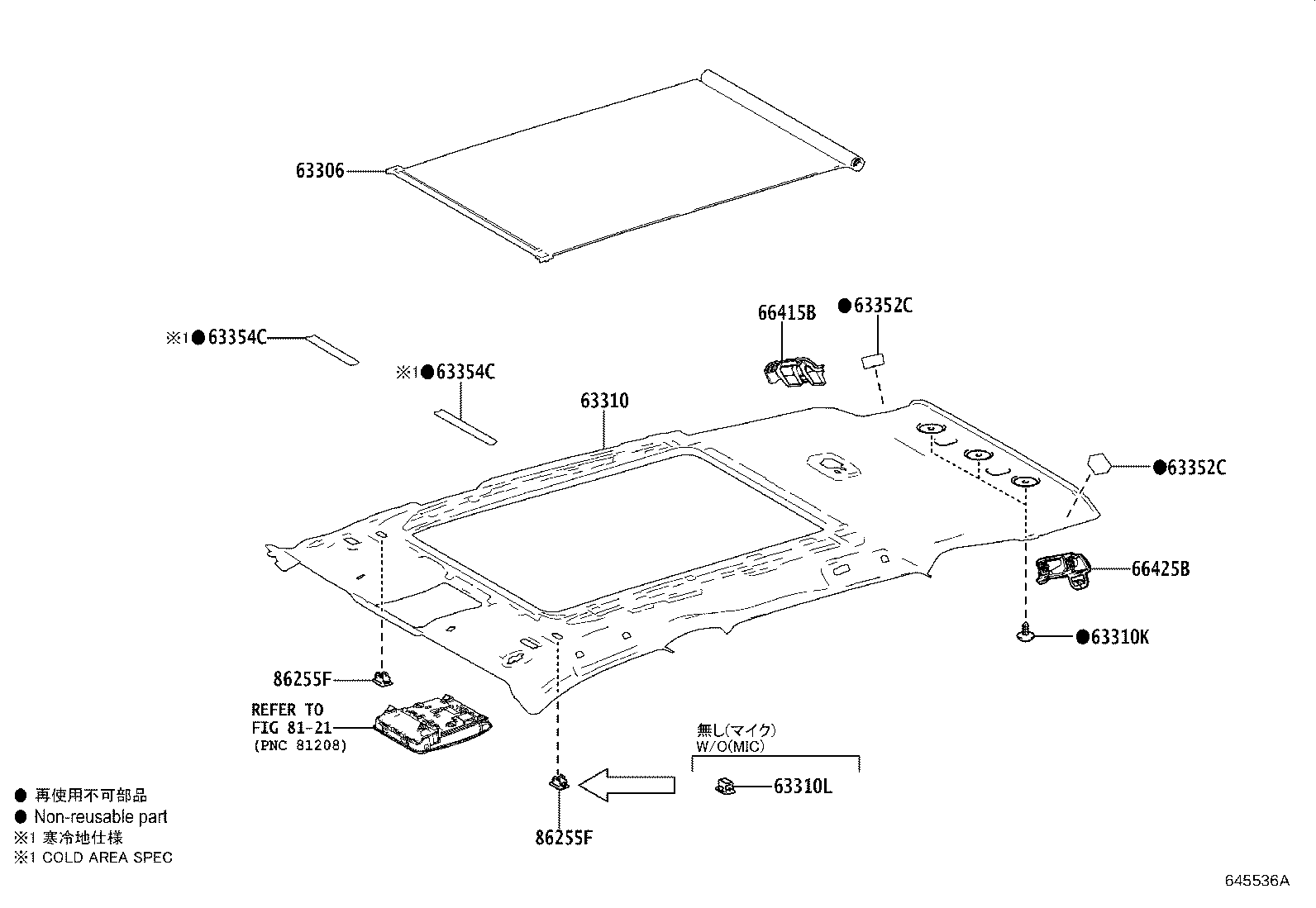

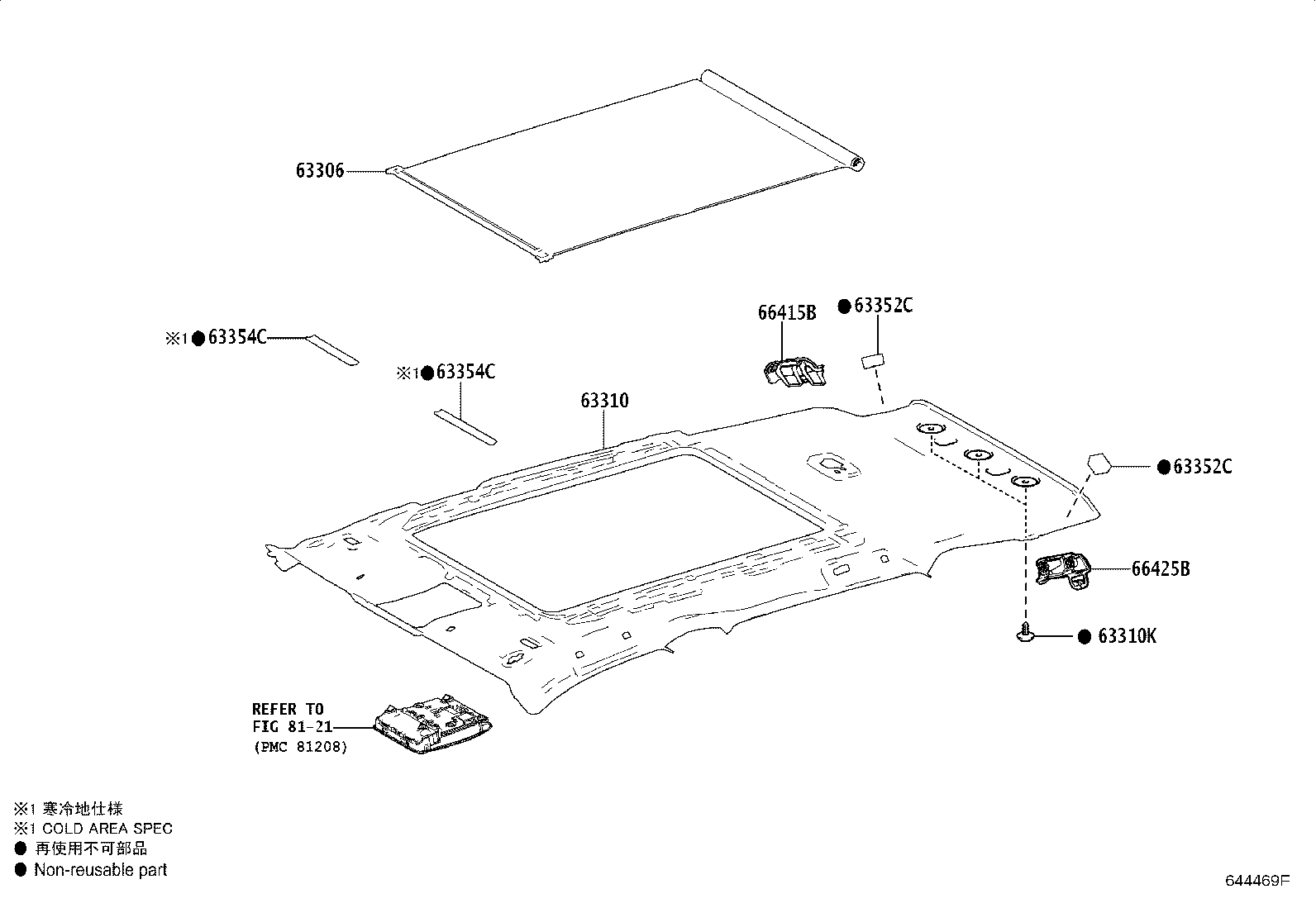

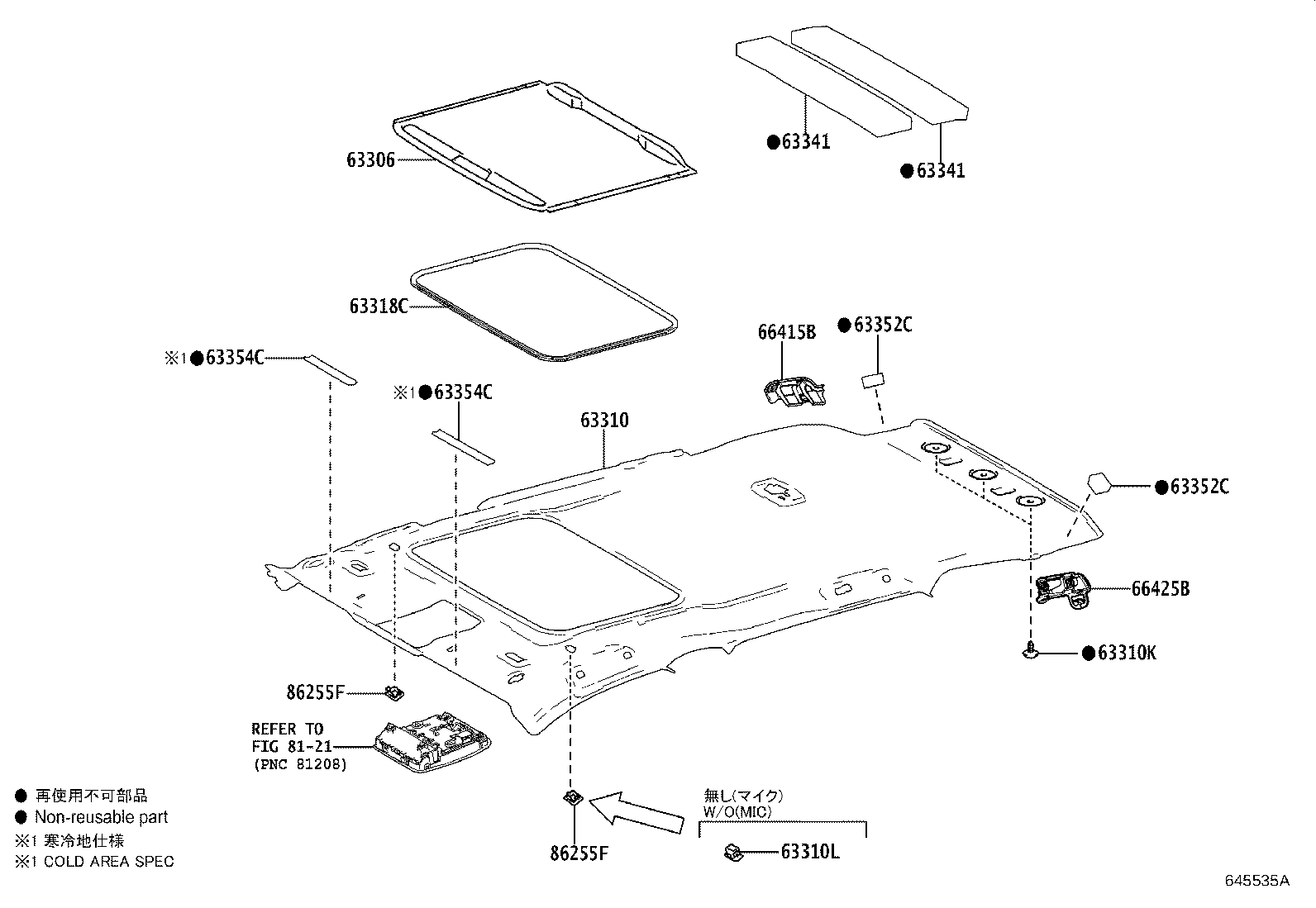

Figure 644464F 644464F 2019-04 → 2022-10 Figure 644466F 644466F 2019-04 → 2022-10 Figure 644469F 644469F 2019-04 → 2022-10 Figure 645534A 645534A 2022-10 → — Figure 645535A 645535A 2022-10 → — Figure 645536A 645536A 2022-10 → —

Part groups

PNCDescription
63306 Trim Sub-assy, Sunshade
63310 Headlining Assy, Roof
63310K Clip
63310L Cap(FOR ROOF HEADLINING)
63318C Moulding, Sun Roof Opening Trim
63341 Pad, Roof Silencer, NO.1
63342 Pad, Roof Silencer, NO.2
63351B Pad, Roof Headlining
63352C Pad, Roof Headlining, End
63352D Pad, Roof Headlining, NO.2
63354C Pad, Roof Headlining Front Side
63361 Support, Roof Headlining, NO.1
63362 Support, Roof Headlining, NO.2
63363 Support, Roof Headlining, NO.3
63364 Support, Roof Headlining, NO.4
66415B Spacer, Side Rail, Rear NO.2 RH
66425B Spacer, Side Rail, Rear NO.2 LH
86255F Case, Microphone
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
