Toyota RAV4
2019-04 → present · chassis AXAH5#,MXAA5# · catalogue 662150 · Japan
Supported model
Data version 2023-10

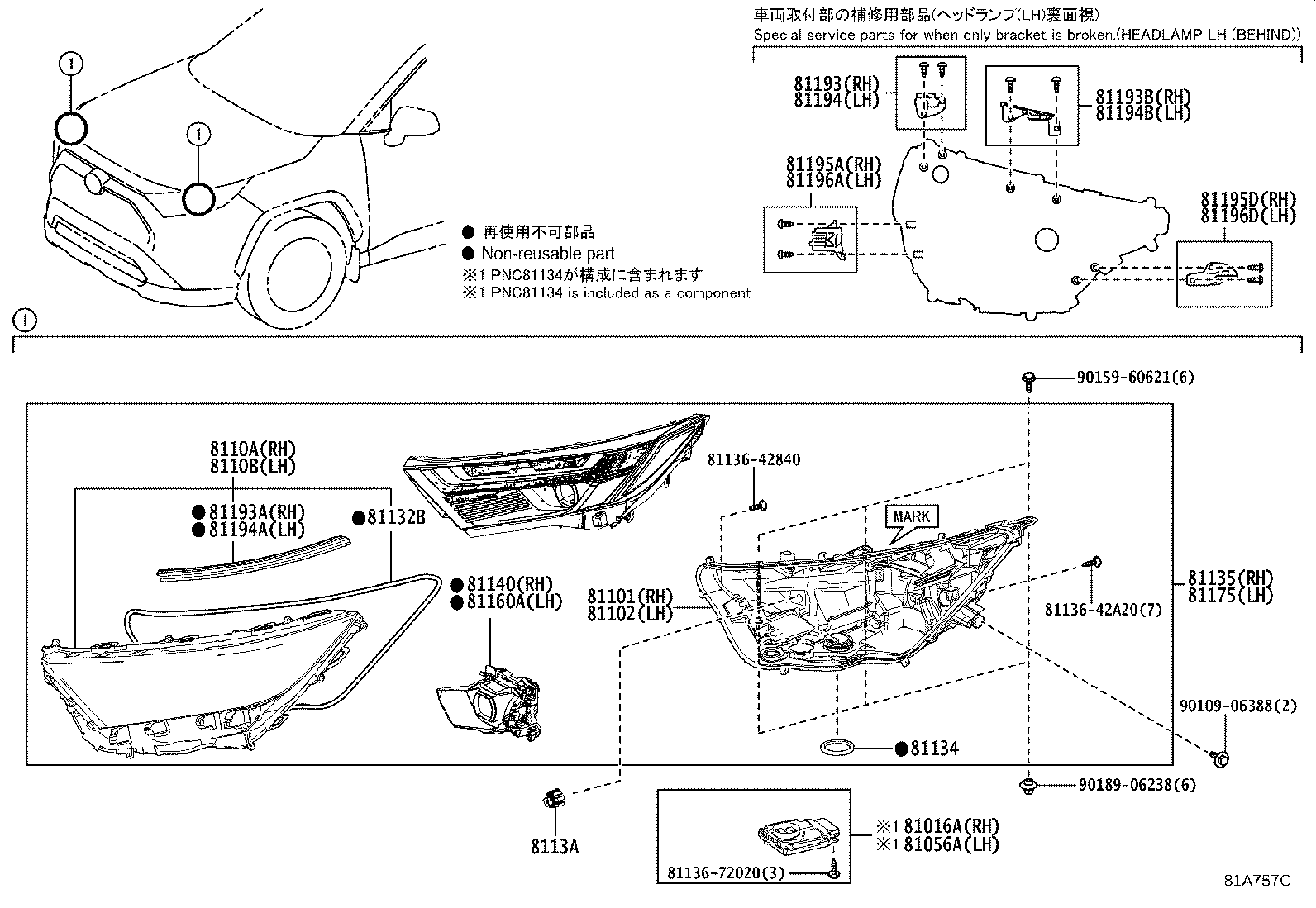

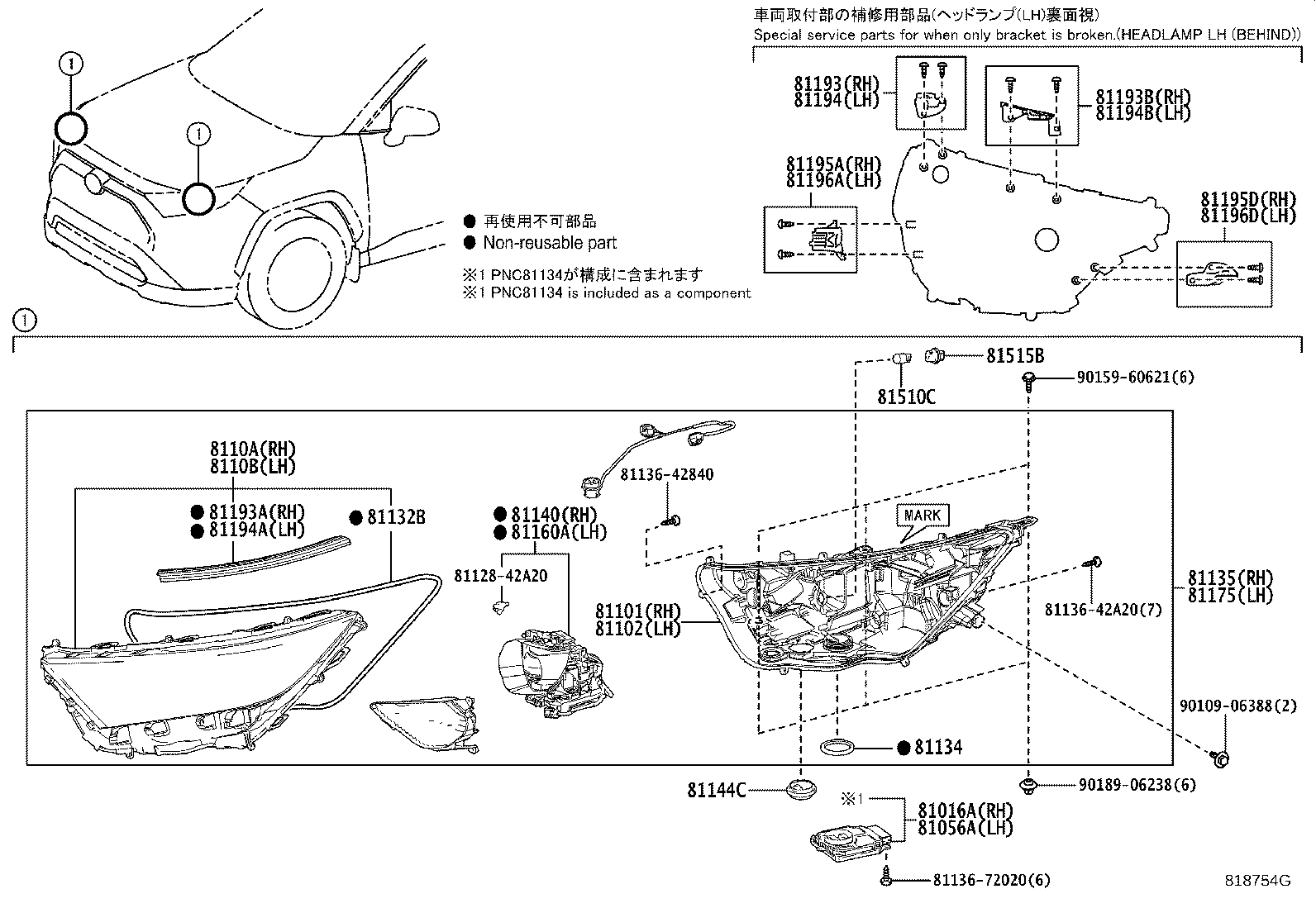

Headlamp
29 part groups · 5 illustrations
Part groups
| PNC | Description |
|---|---|
| 81016A | Computer Sub-assy, Headlamp, RH |
| 81056A | Computer Sub-assy, Headlamp, LH |
| 81101 | Housing Sub-assy, Headlamp, RH |
| 81102 | Housing Sub-assy, Headlamp, LH |
| 8110A | Lens Sub-assy, Headlamp, RH |
| 8110B | Lens Sub-assy, Headlamp, LH |
| 81116C | Bracket, Headlamp, RH |
| 81132B | Gasket, Headlamp Lens |
| 81134 | Gasket, Headlamp |
| 81134D | Gasket, Headlamp, NO.2 |
| 81135 | Unit Assy, Headlamp, RH |
| 8113A | Led, Headlamp Front Turn Signal |
| 81140 | Unit Assy, Headlamp Led, RH |
| 81144C | Cover, Headlamp Socket |
| 81156A | Bracket, Headlamp, LH |
| 81160A | Unit Assy, Headlamp Led, LH |
| 81175 | Unit Assy, Headlamp, LH |
| 81193 | Retainer, Headlamp Protector, Upper RH |
| 81193A | Protector, Headlamp, RH |
| 81193B | Retainer, Headlamp Protector, Upper RH NO.2 |
| 81194 | Retainer, Headlamp Protector, Upper LH |
| 81194A | Protector, Headlamp, LH |
| 81194B | Retainer, Headlamp Protector, Upper LH NO.2 |
| 81195A | Retainer, Headlamp Protector, Lower RH |
| 81195D | Retainer, Headlamp Protector, Lower RH NO.2 |
| 81196A | Retainer, Headlamp Protector, Lower LH |
| 81196D | Retainer, Headlamp Protector, Lower LH NO.2 |
| 81510C | Bulb (FOR FRONT TURN SIGNAL LAMP) |
| 81515B | Socket, Front Turn Signal Lamp |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
