Toyota RAV4

2019-04 → present · chassis AXAH5#,MXAA5# · catalogue 662150 · Japan

Supported model Data version 2023-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Fog Lamp

7 part groups · 4 illustrations

Illustrations

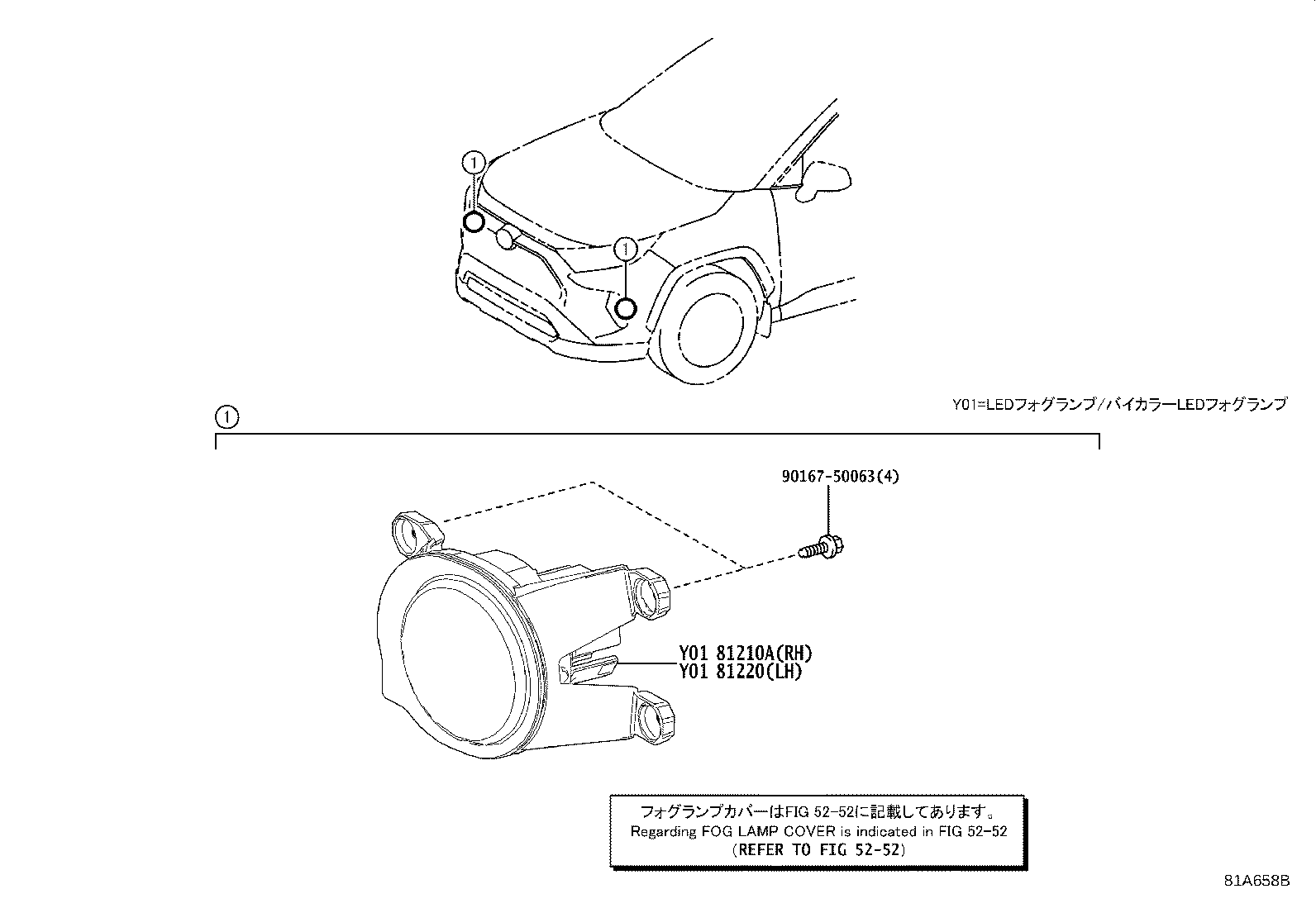

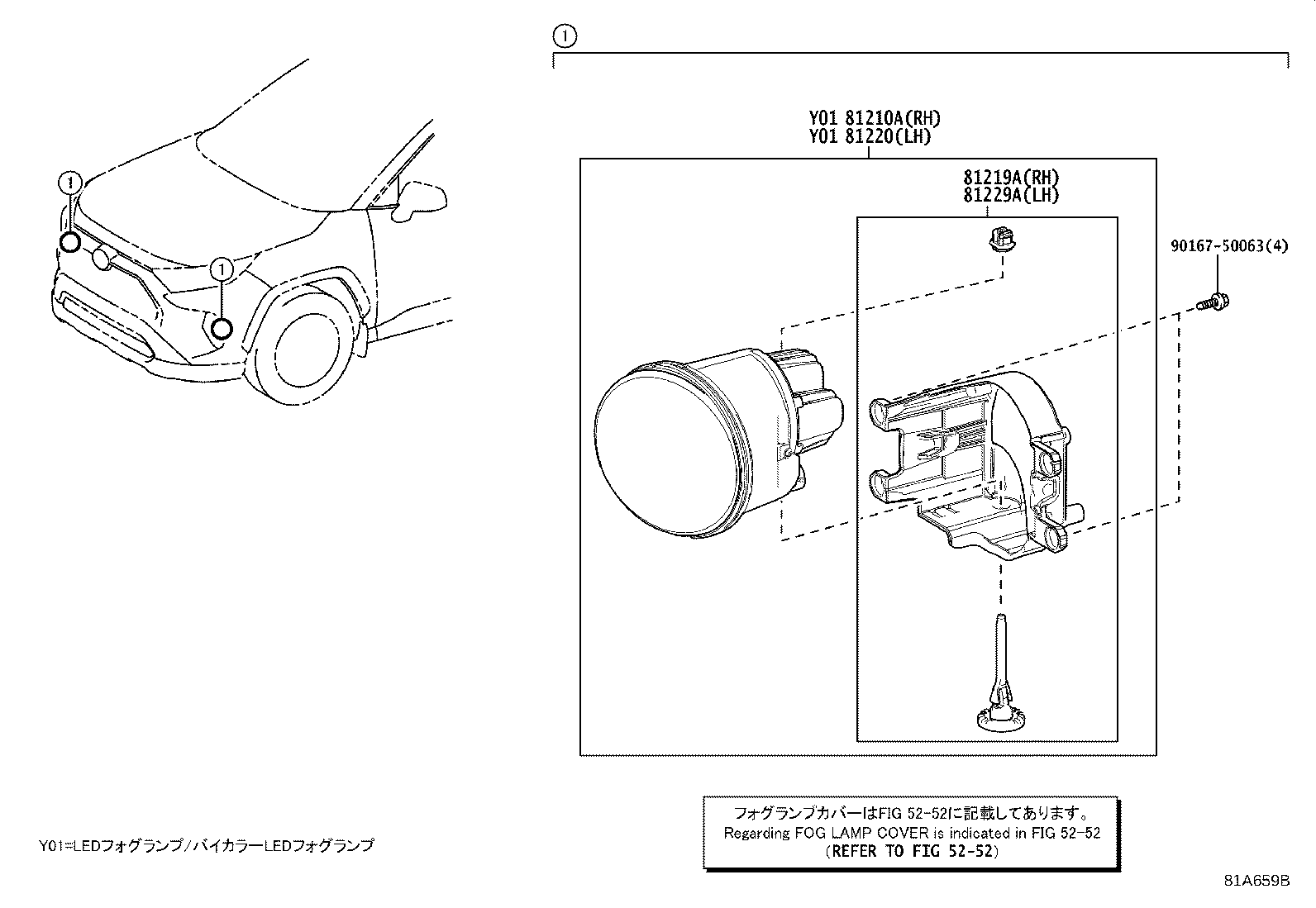

Figure 818746F 818746F 2019-04 → — Figure 81A658B 81A658B 2021-12 → — Figure 81A658B 81A658B 2022-10 → — Figure 81A659B 81A659B 2021-12 → —

Part groups

PNCDescription
81210A Lamp Assy, Fog, RH
81210B Bulb, Fog Lamp
81211C Lamp Unit, Fog Lamp, RH
81219A Bracket, Fog Lamp, RH
81220 Lamp Assy, Fog, LH
81221C Lamp Unit, Fog Lamp, LH
81229A Bracket, Fog Lamp, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
