Toyota RAV4
2019-04 → present · chassis AXAH5#,MXAA5# · catalogue 662150 · Japan
Supported model
Data version 2023-10
Battery & Battery Cable

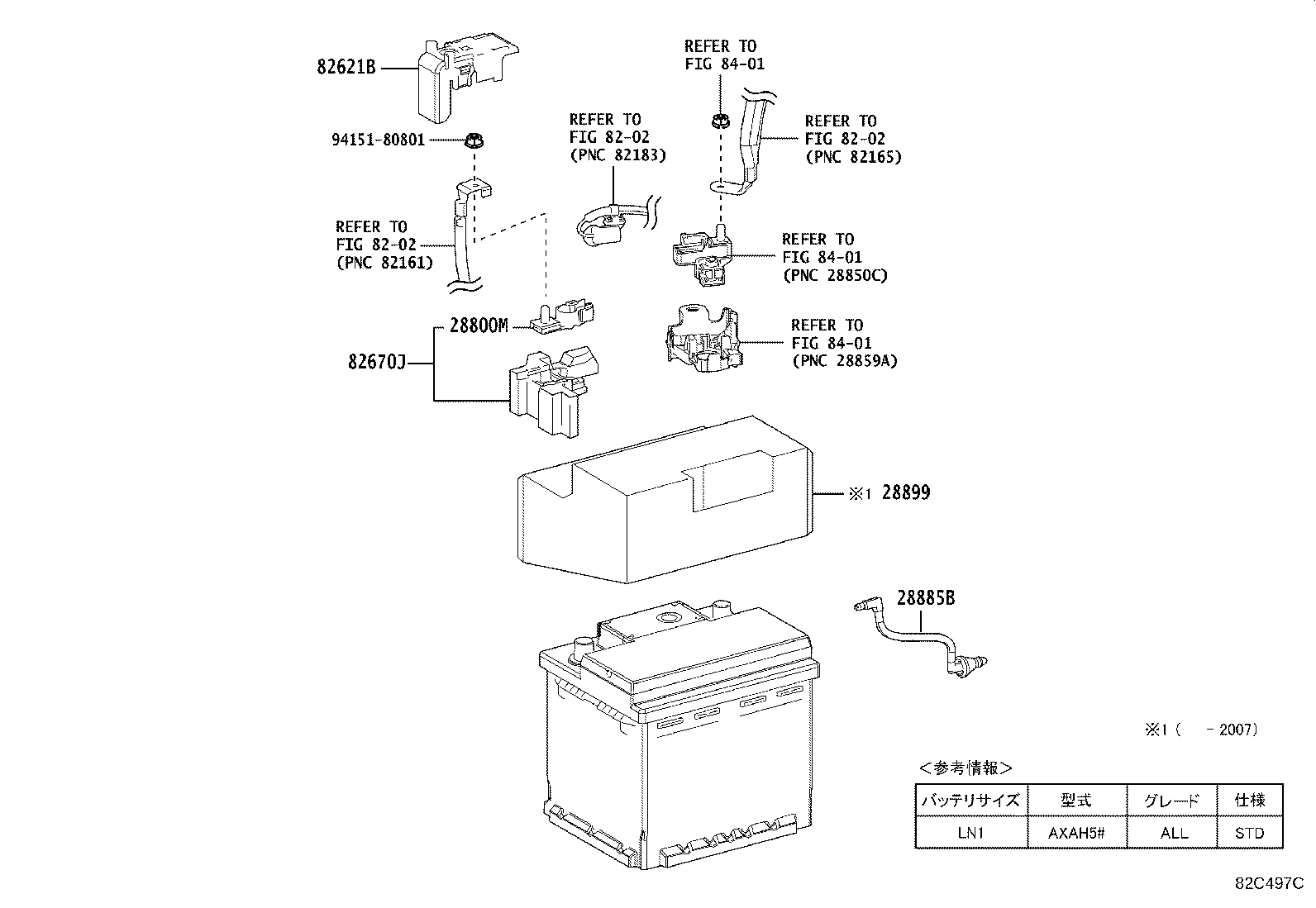

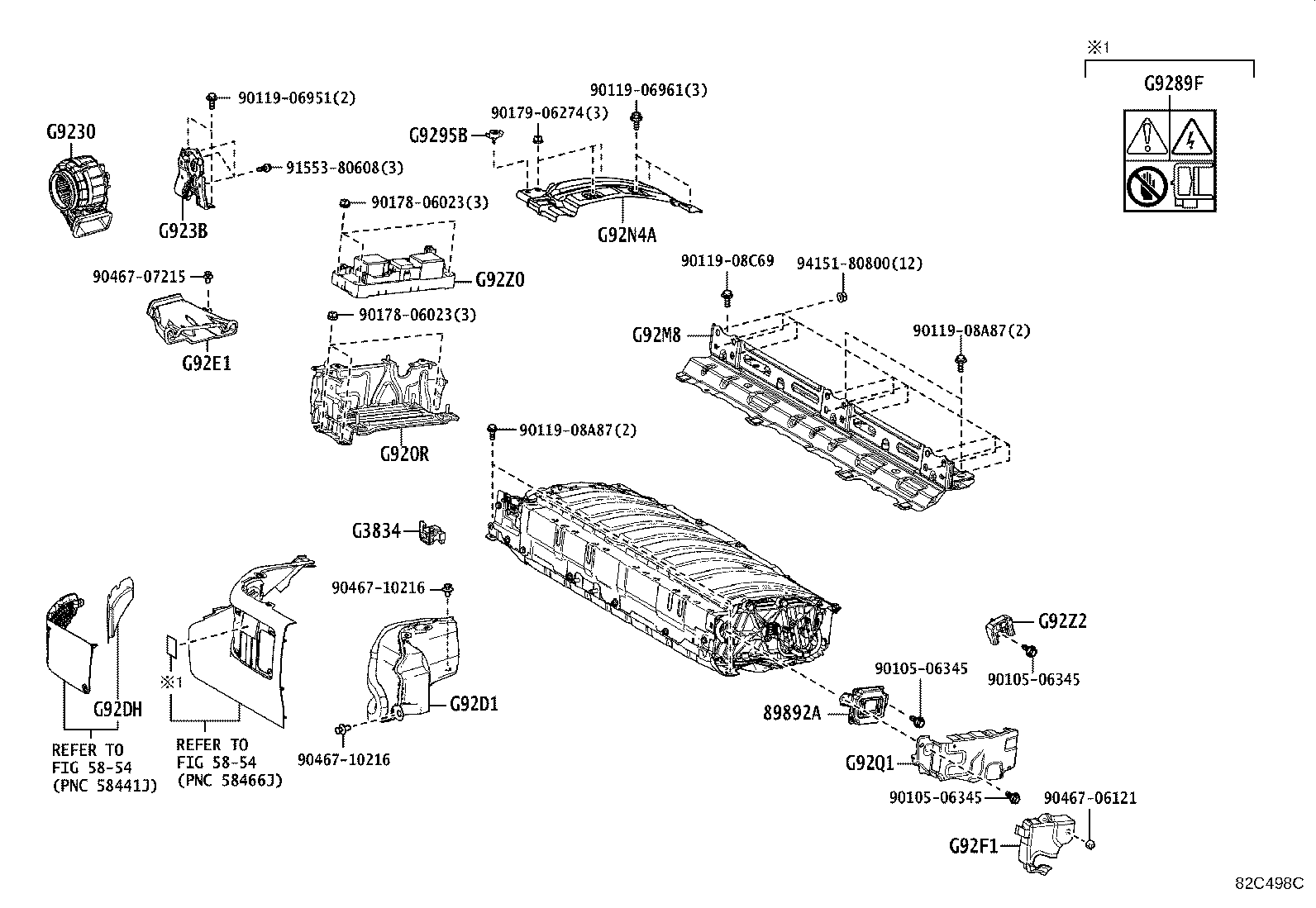

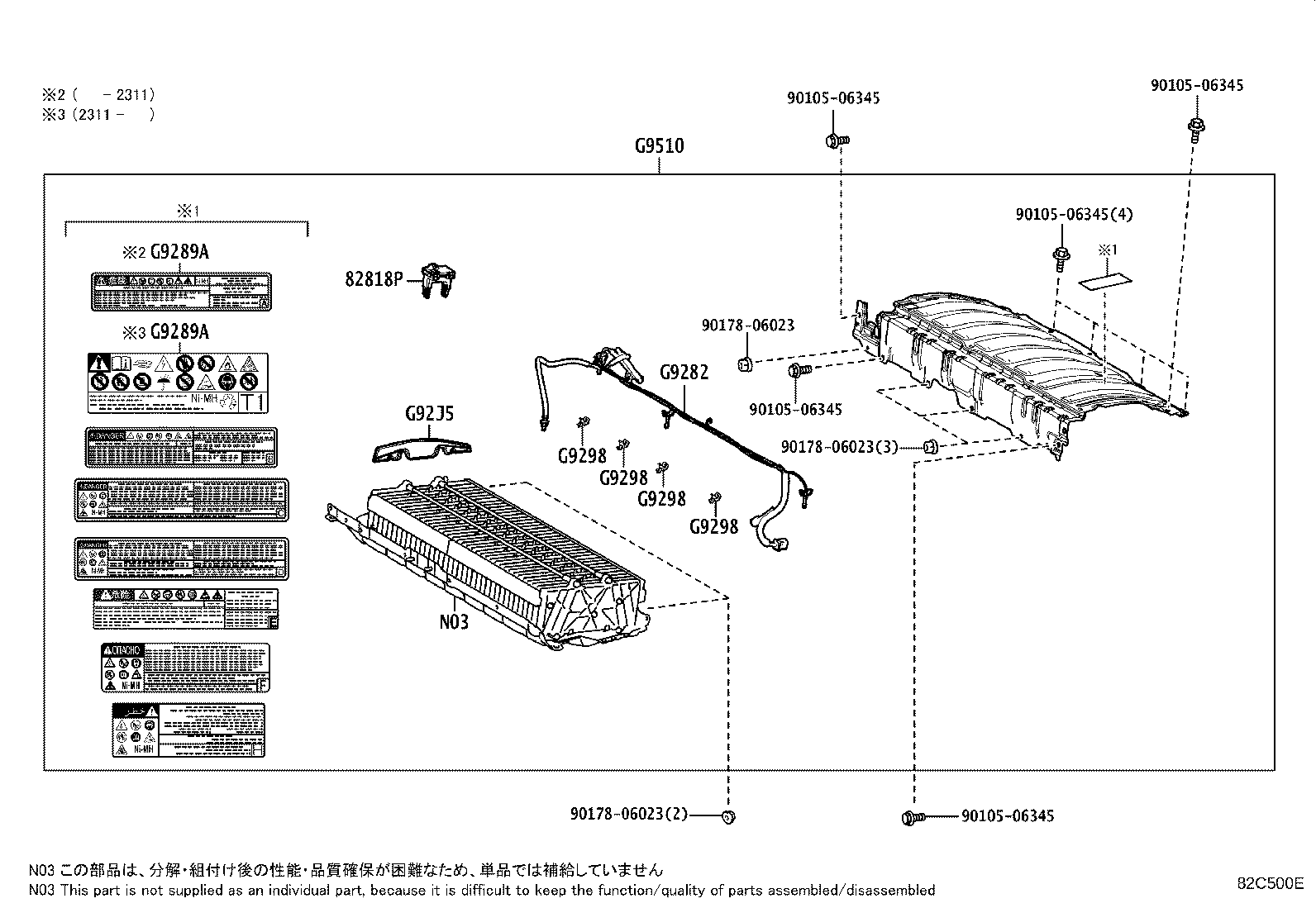

31 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 28800A | Terminal, Battery Positive |
| 28800J | Terminal, Battery Negative |
| 28800M | Terminal, Battery Positive |
| 28885B | Hose, Battery |
| 28899 | Insulator, Battery |
| 82621B | Cover, Fusible Link |
| 82670J | Block Assy, Junction |
| 82671R | Stopper, Battery Terminal |
| 82818P | Protector, Wiring Harness |
| 82821K | Cover, Connector |
| 89892A | Sensor, Battery Voltage |
| G3834 | Grip, Service Plug |
| G920R | Shield Sub-assy, Hybrid Battery, NO.2 |
| G9230 | Blower Assy, Battery Cooling |
| G923B | Bracket, Battery Cooling Blower |
| G9282 | Thermistor, Hybrid Battery |
| G9289A | Label, Battery Caution |
| G9289F | Label, Battery Caution, NO.3 |
| G9295B | Striker, Battery Cover Lock |
| G9298 | Clamp, HV Battery |
| G92D1 | Duct, Hybrid Battery Intake, NO.1 |
| G92DH | Filter, HV Battery Intake, NO.1 |
| G92E1 | Duct, HV Battery Cover Intake, NO.1 |
| G92F1 | Duct, Hybrid Battery Exhaust, NO.1 |
| G92J5 | Packing, Hybrid Battery, NO.1 |
| G92M8 | Bracket, HV Battery Upper Carrier, NO.2 |
| G92N4A | Panel, HV Battery RH Cover, NO.1 |
| G92Q1 | Panel, HV Battery Shield, NO.1 |
| G92Z0 | Block Assy, HV Battery Junction |
| G92Z2 | Block, Hybrid Battery Terminal |
| G9510 | Battery Assy, HV Supply |
