Toyota RAV4

2019-04 → present · chassis AXAH5#,MXAA5# · catalogue 662150 · Japan

Supported model Data version 2023-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Radio Receiver & Amplifier & Condenser

4 part groups · 3 illustrations

Illustrations

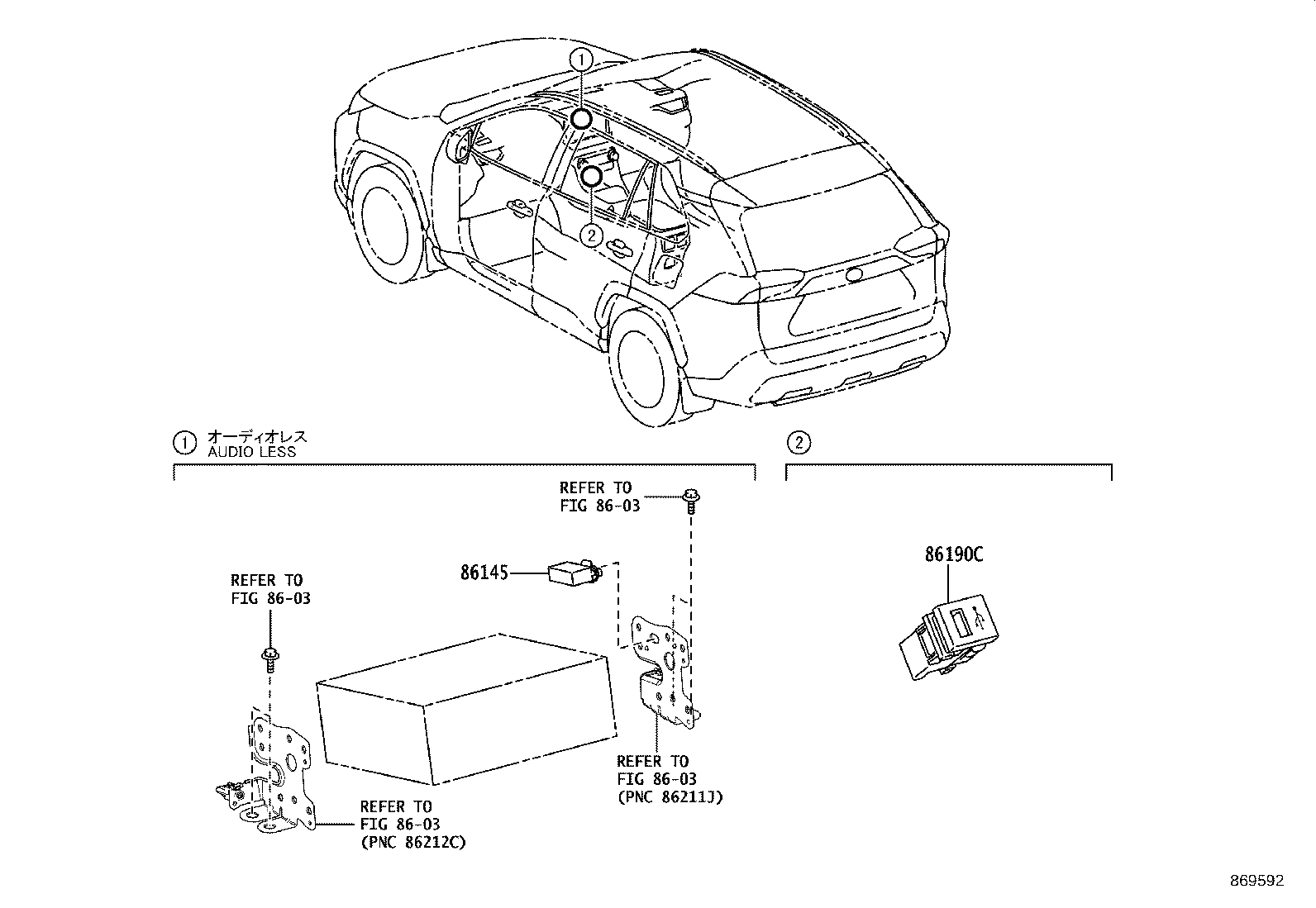

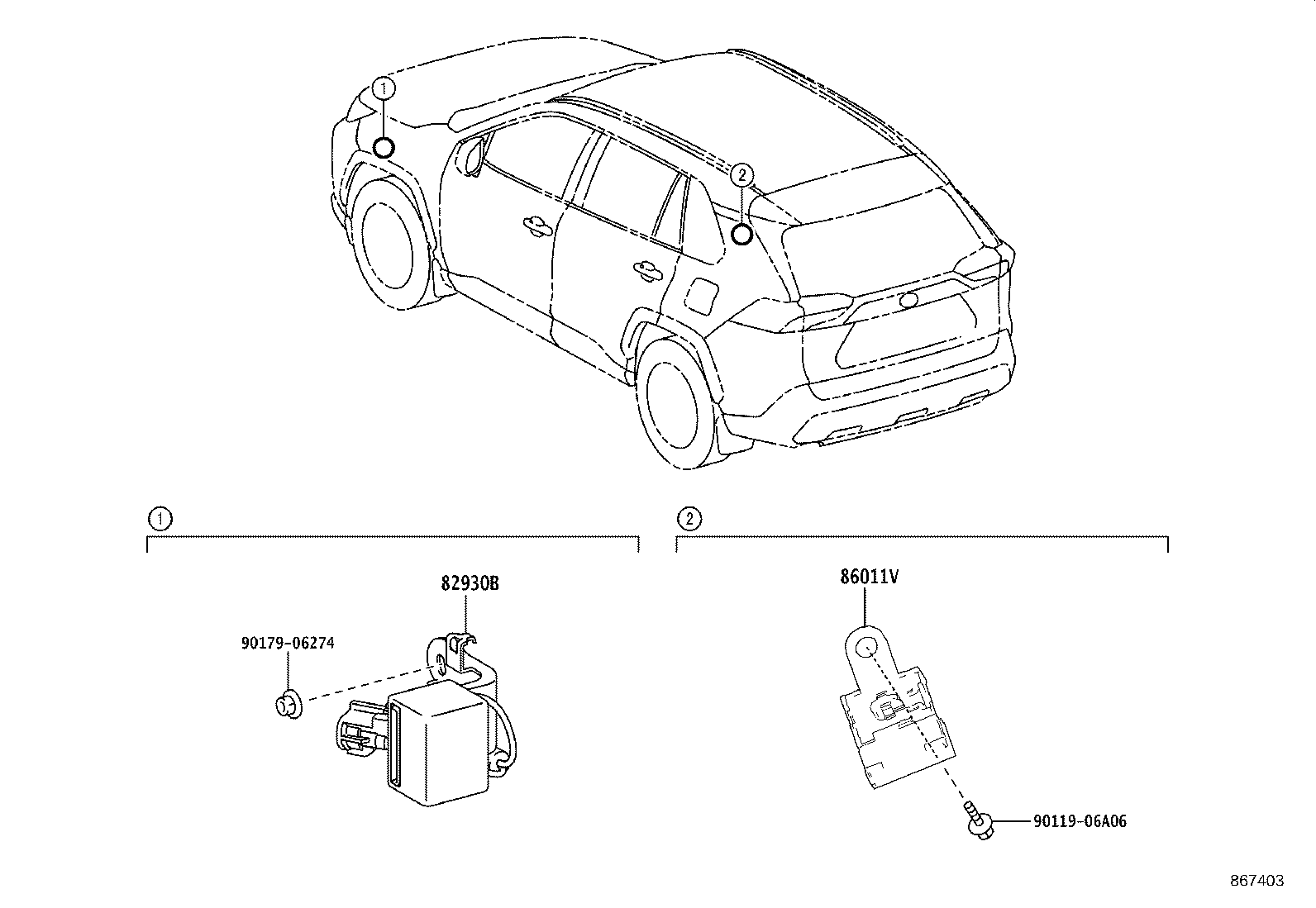

Figure 867402B 867402B 2019-04 → 2022-10 Figure 869592 869592 2022-10 → — Figure 867403 867403 2019-04 → —

Part groups

PNCDescription
82930B Condenser Assy, Wiring Harness
86011V Condenser, Radio Setting
86145 Connector, Antenna Male
86190C Adapter Assy, Stereo Jack, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
