Toyota RAV4

2019-04 → present · chassis AXAH5#,MXAA5# · catalogue 662150 · Japan

Supported model Data version 2023-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Navigation & Front Monitor Display

14 part groups · 3 illustrations

Illustrations

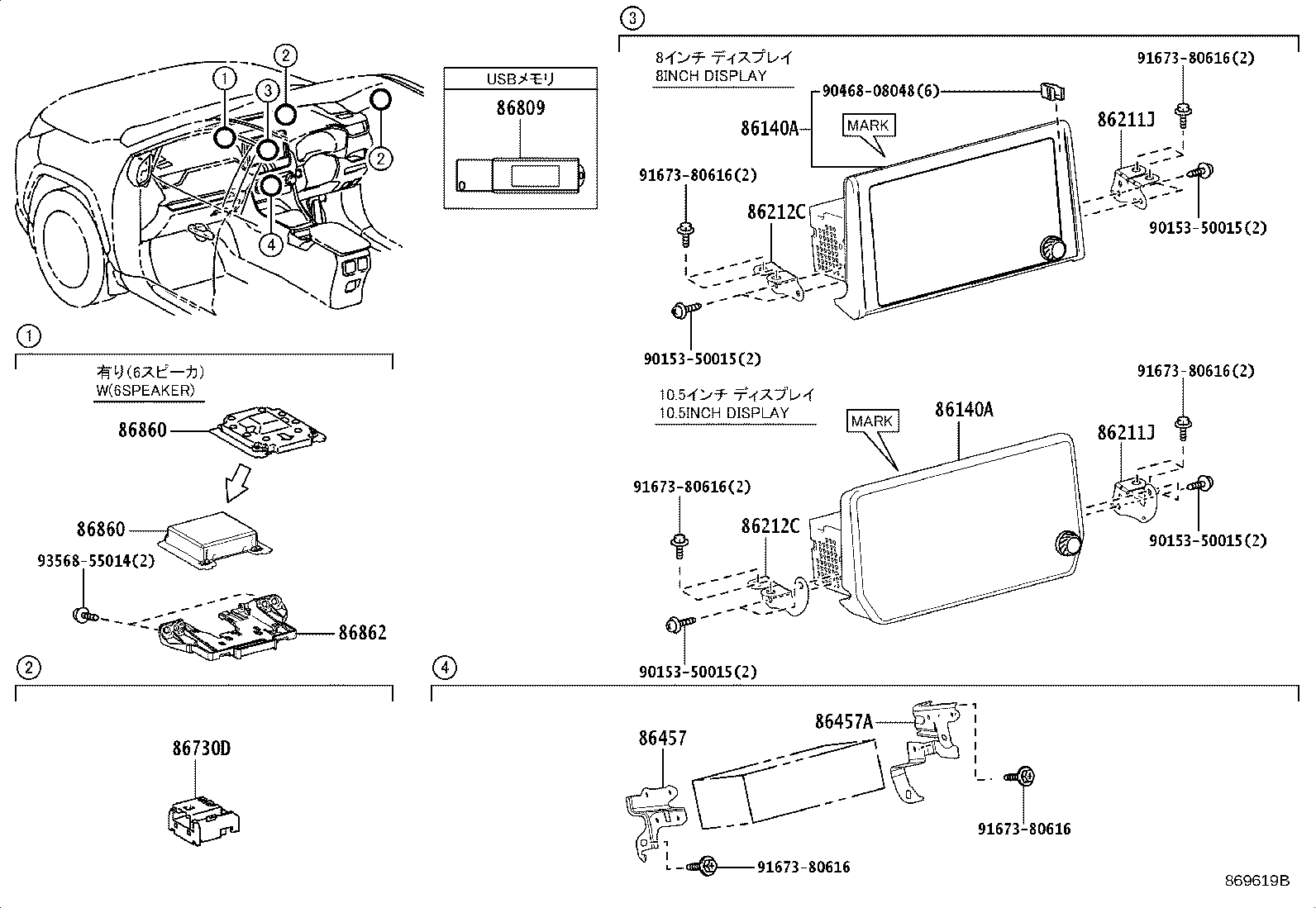

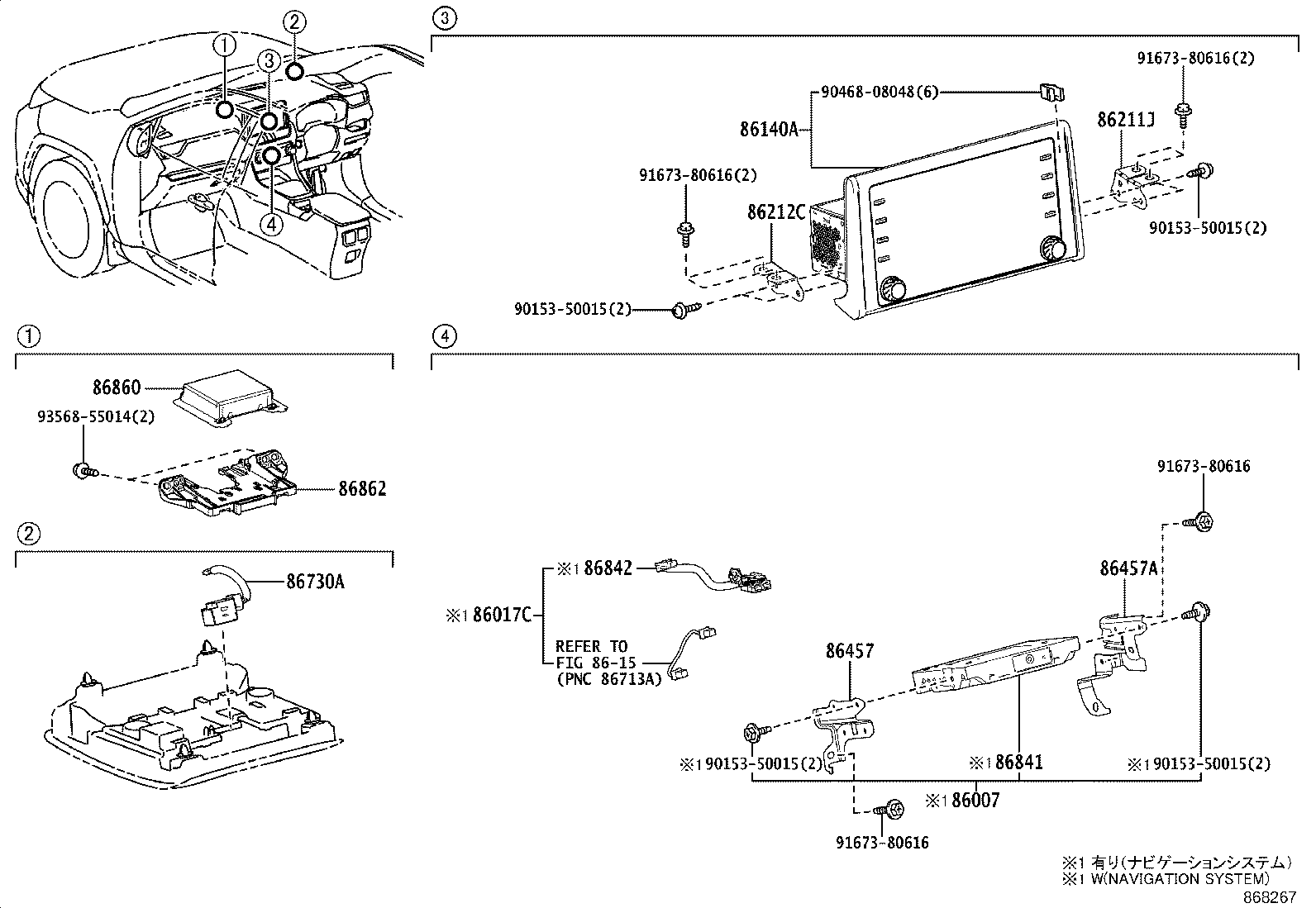

Figure 867413 867413 2019-04 → — Figure 868267 868267 2020-08 → 2022-10 Figure 869619B 869619B 2022-10 → —

Part groups

PNCDescription
86007 Computer Set, Navigation
86017C Fitting Set, Navigation Setting
86140A Receiver Assy, Radio & Display
86211J Bracket, Radio Receiver, NO.1
86212C Bracket, Radio Receiver, NO.2
86457 Bracket, Multi-media Module NO.1
86457A Bracket, Multi-media Module NO.2
86730A Microphone Assy, Telephone
86730D Microphone Assy, Telephone, NO.2
86809 Usb Set, Usb Memory Navigation Data
86841 Computer, Navigation
86842 Wire, Navigation, NO.1
86860 Antenna Assy, Navigation
86862 Bracket, Navigation Antenna
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
