Toyota FJ Cruiser

2010-11 → 2018-01 · chassis GSJ15 · catalogue 663110 · Japan

Supported model Data version 2018-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Spring & Shock Absorber

21 part groups · 2 illustrations

Illustrations

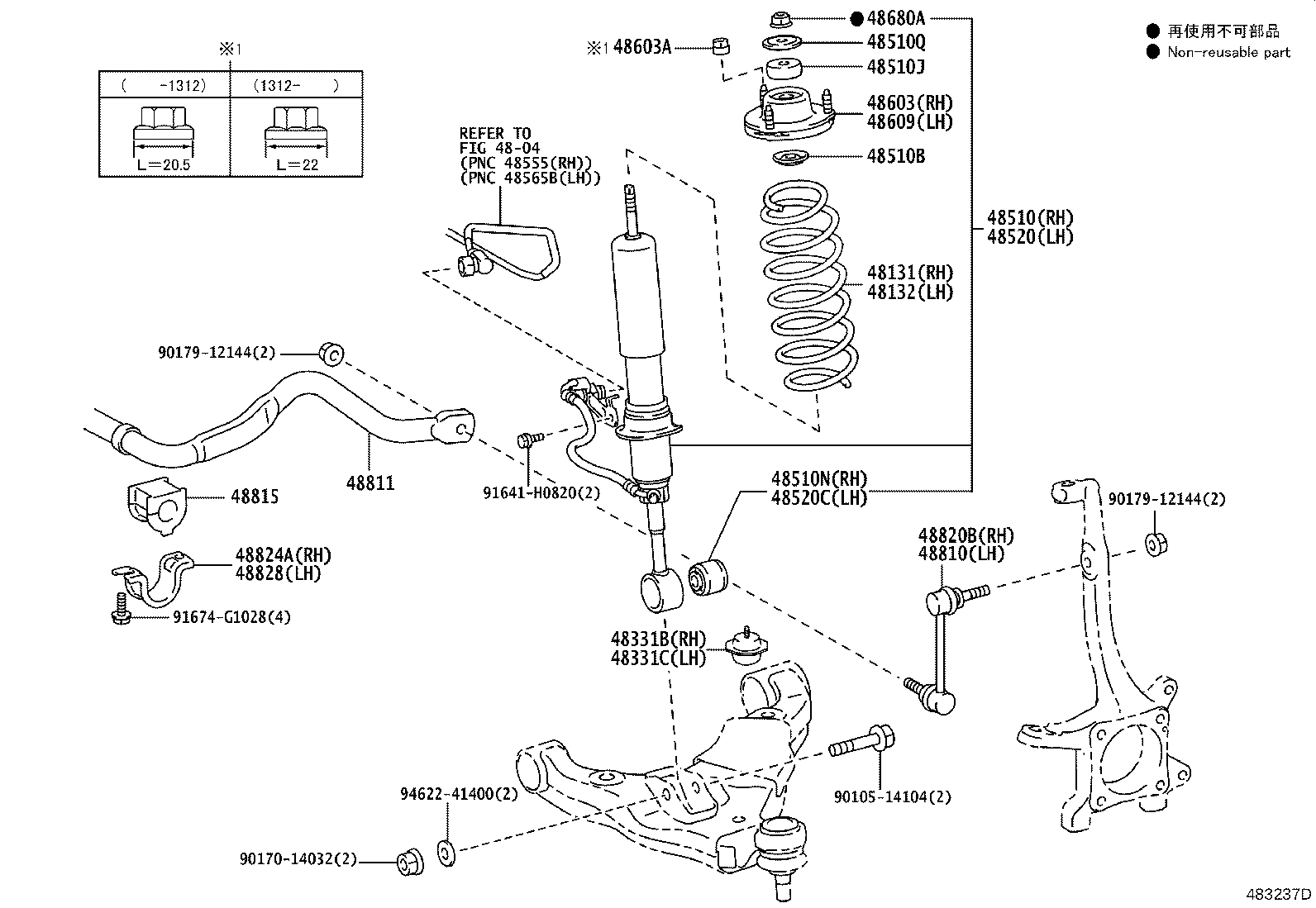

Figure 483236B 483236B 2010-11 → — Figure 483237D 483237D 2010-11 → —

Part groups

PNCDescription
48131 Spring, Front Coil, RH
48132 Spring, Front Coil, LH
48331B Bumper, Front Spring, RH
48331C Bumper, Front Spring, LH
48510 Absorber Assy, Shock, Front RH
48510B Retainer, Cushion, NO.1(FOR FRONT SHOCK ABSORBER)
48510J Cushion, Front Shock Absorber, NO.1
48510N Bush(FOR FRONT SHOCK ABSORBER RH)
48510Q Retainer, Cushion, NO.3(FOR FRONT SHOCK ABSORBER)
48520 Absorber Assy, Shock, Front LH
48520C Bush(FOR FRONT SHOCK ABSORBER LH)
48603 Support Sub-assy, Front Suspension, RH
48603A Nut(FOR FRONT SUSPENSION SUPPORT)
48609 Support Sub-assy, Front Suspension, LH
48680A Nut(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER)
48810 Link Assy, Front Stabilizer, LH
48811 Bar, Stabilizer, Front
48815 Bush, Front Stabilizer Bar, NO.1
48820B Link Assy, Front Stabilizer, RH
48824A Bracket, Front Stabilizer, NO.1 RH
48828 Bracket, Front Stabilizer, NO.2 LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
