Toyota FJ Cruiser

2010-11 → 2018-01 · chassis GSJ15 · catalogue 663110 · Japan

Supported model Data version 2018-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Spring & Shock Absorber

30 part groups · 3 illustrations

Illustrations

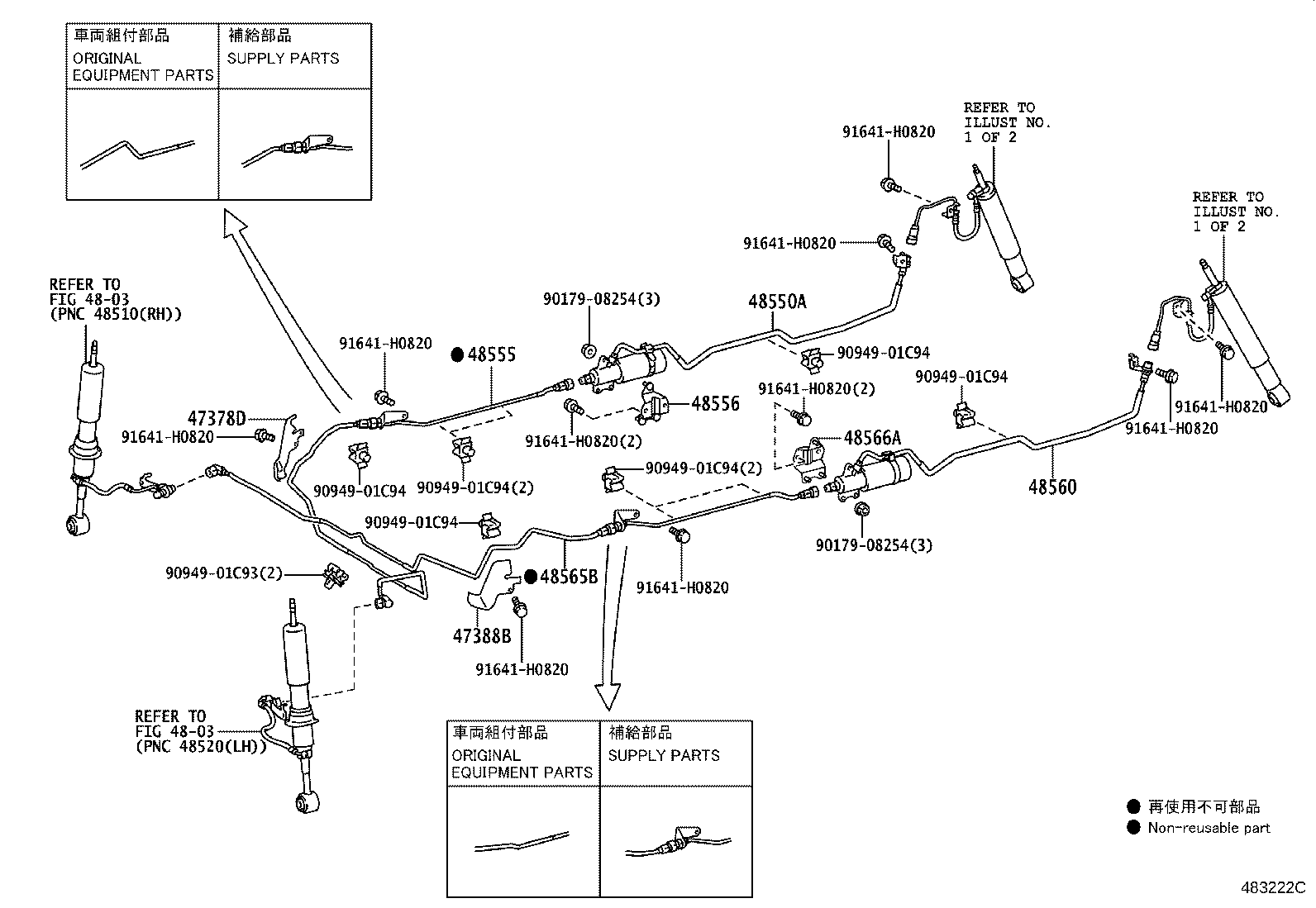

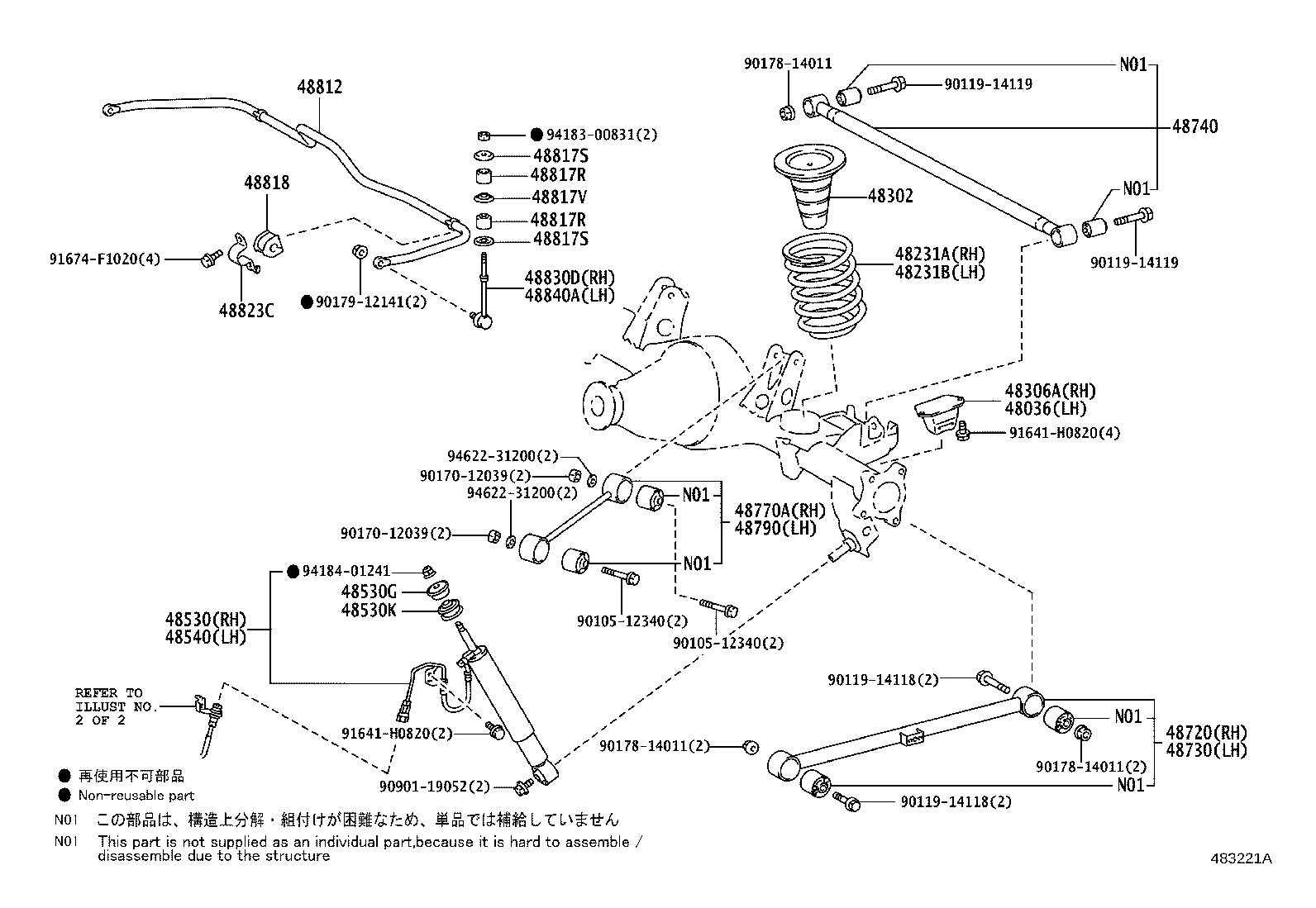

Figure 483220A 483220A 2010-11 → — Figure 483221A 483221A 2010-11 → — Figure 483222C 483222C 2010-11 → —

Part groups

PNCDescription
47378D Protector, Tube, RH
47388B Protector, Tube, LH
48036 Bumper Sub-assy, Rear Spring, LH
48231A Spring, Coil, Rear RH
48231B Spring, Coil, Rear LH
48302 Spring Sub-assy, Hollow
48306A Bumper Sub-assy, Rear Spring, RH
48530 Absorber Assy, Shock, Rear RH
48530G Cushion, Rear Shock Absorber, NO.1
48530K Cushion, Rear Shock Absorber, NO.2
48540 Absorber Assy, Shock, Rear LH
48550A Absorber Assy, Center Control, RH
48555 Tube, Center Control Absorber, RH
48556 Bracket, Center Control Absorber, RH
48560 Absorber Assy, Center Control, LH
48565B Tube, Center Control Absorber, LH
48566A Bracket, Center Control Absorber, LH
48720 Arm Assy, Lower Control, RH
48730 Arm Assy, Lower Control, LH
48740 Rod Assy, Rear Lateral Control
48770A Arm Assy, Upper Control, Rear RH
48790 Arm Assy, Upper Control, Rear LH
48812 Bar, Stabilizer, Rear
48817R Cushion, Stabilizer(FOR REAR)
48817S Retainer, Cushion, NO.1(FOR STABILIZER REAR BAR)
48817V Retainer, Cushion, NO.2(FOR STABILIZER REAR BAR)
48818 Bush, Stabilizer, Rear
48823C Cover, Rear Stabilizer Bracket
48830D Link Assy, Rear Stabilizer, RH
48840A Link Assy, Rear Stabilizer, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
