Toyota RAV4 Phv

2020-06 → present · chassis AXAP54 · catalogue 666110 · Japan

Supported model Data version 2023-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Seat & Seat Track

118 part groups · 10 illustrations

Illustrations

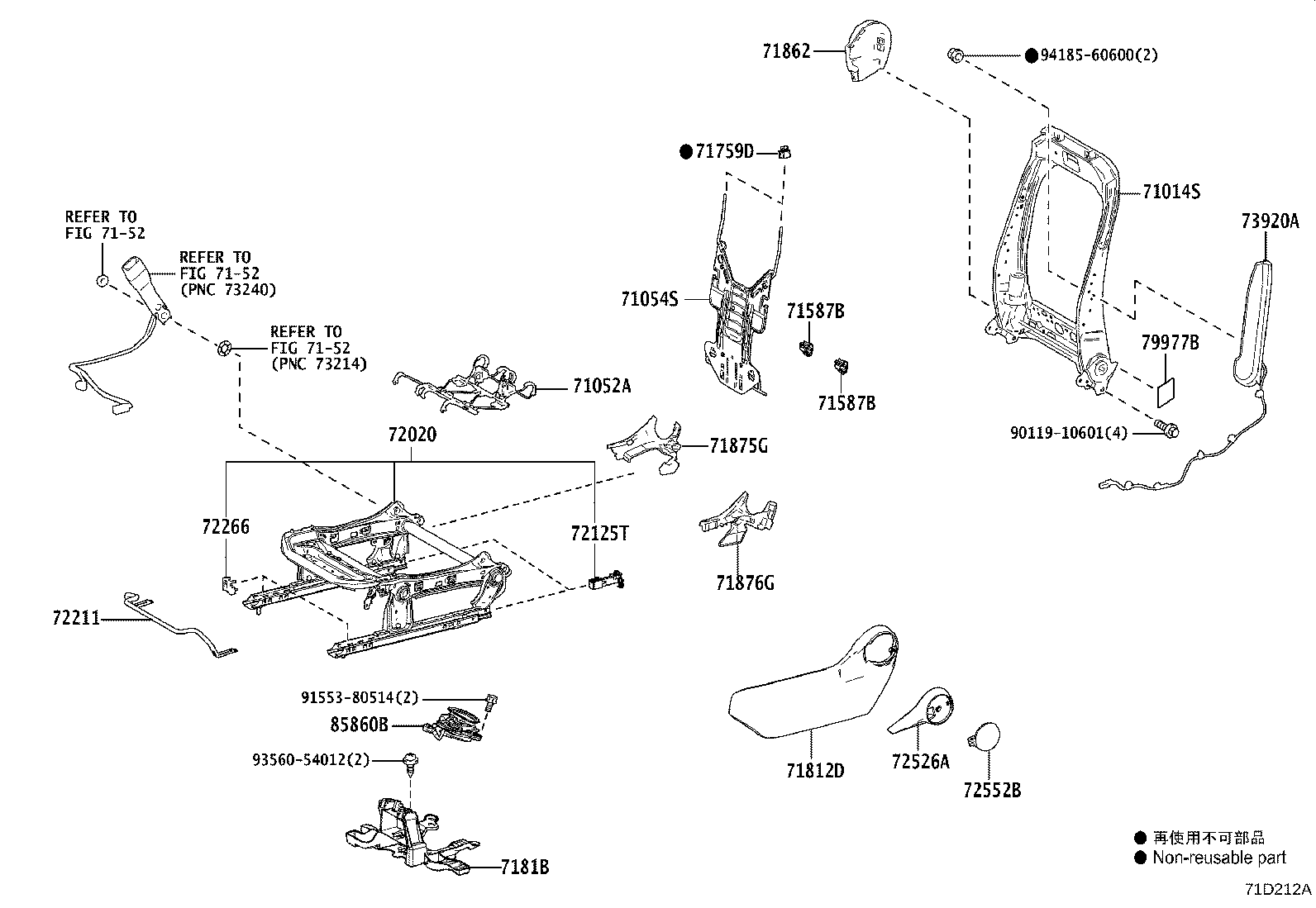

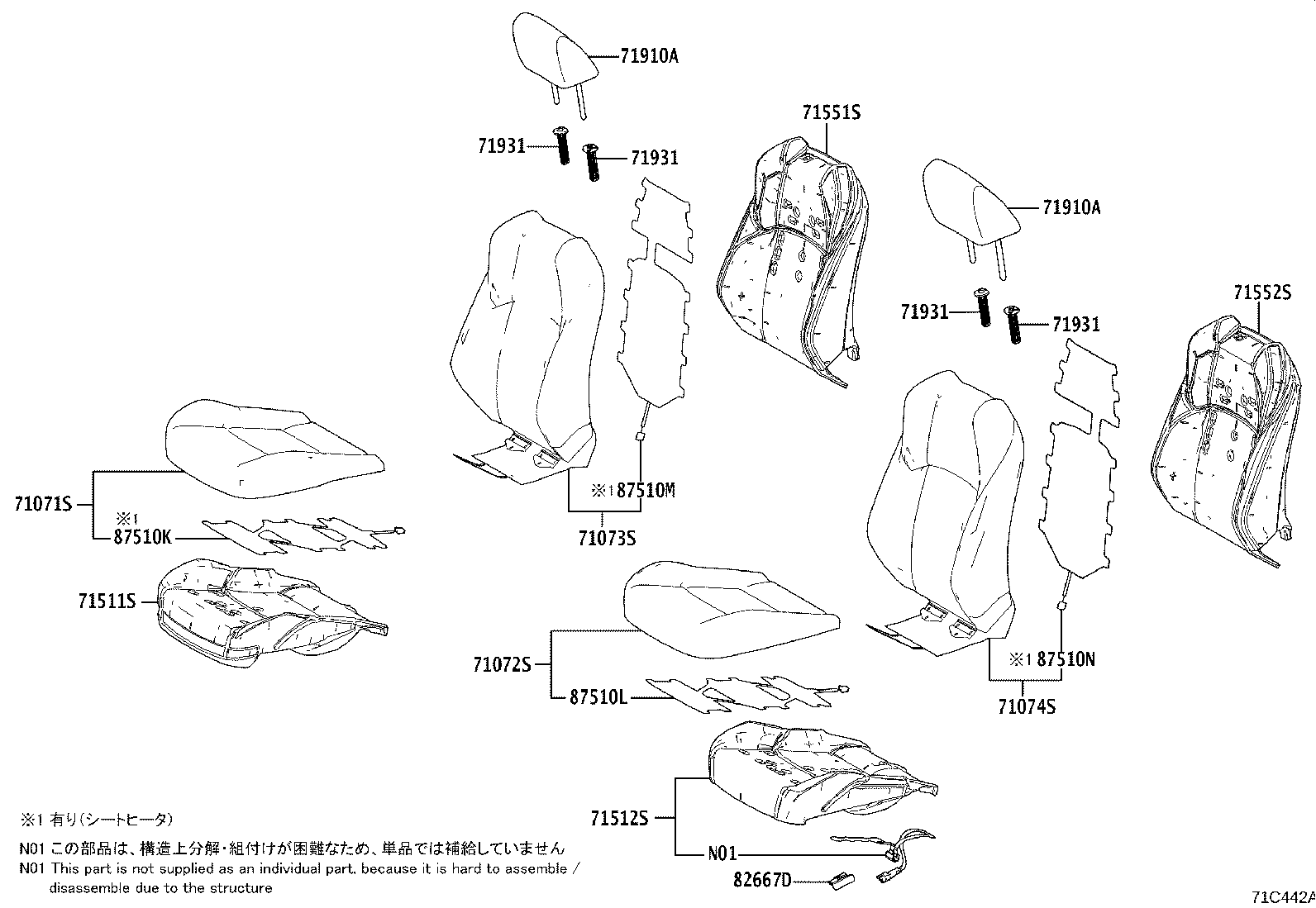

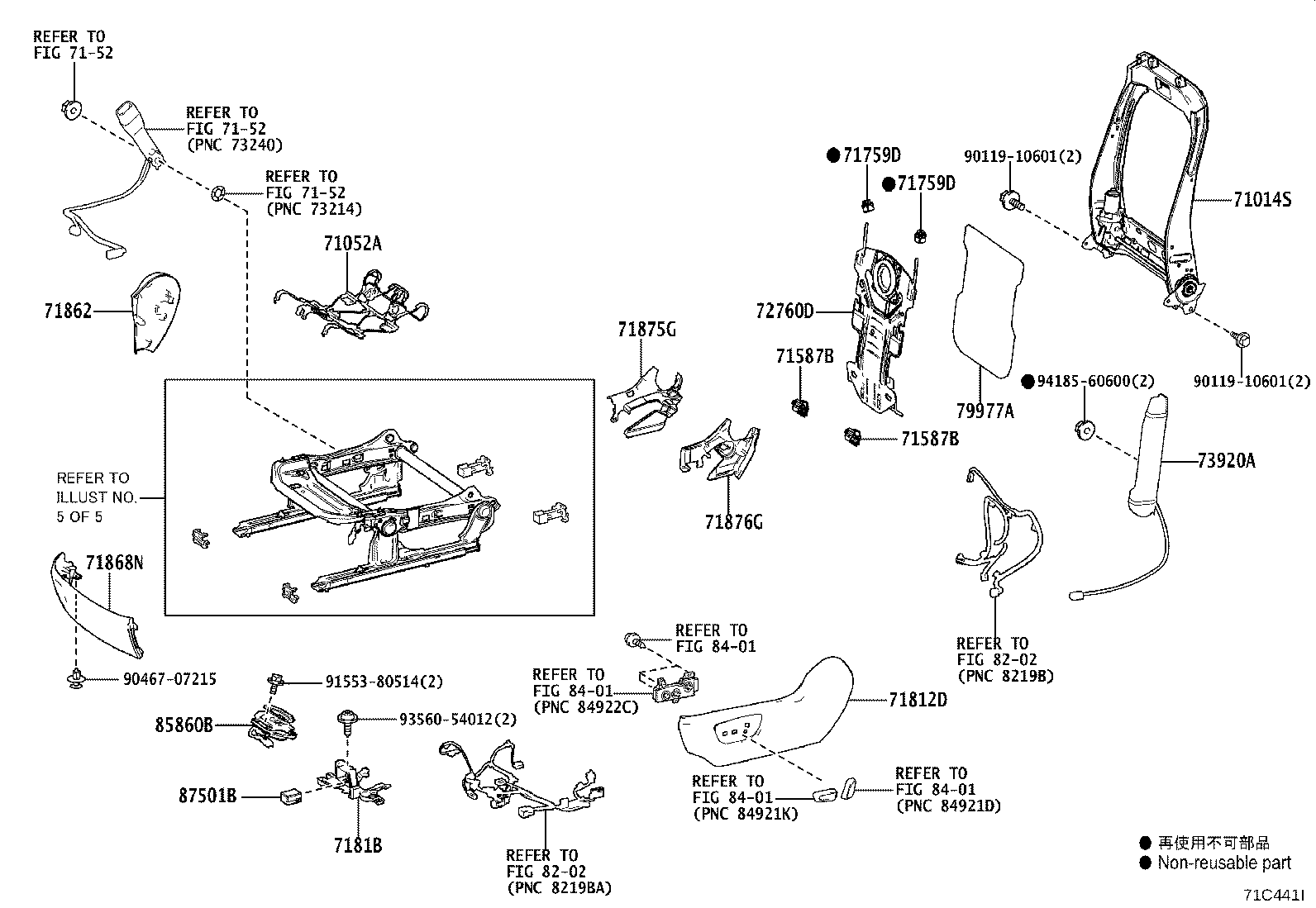

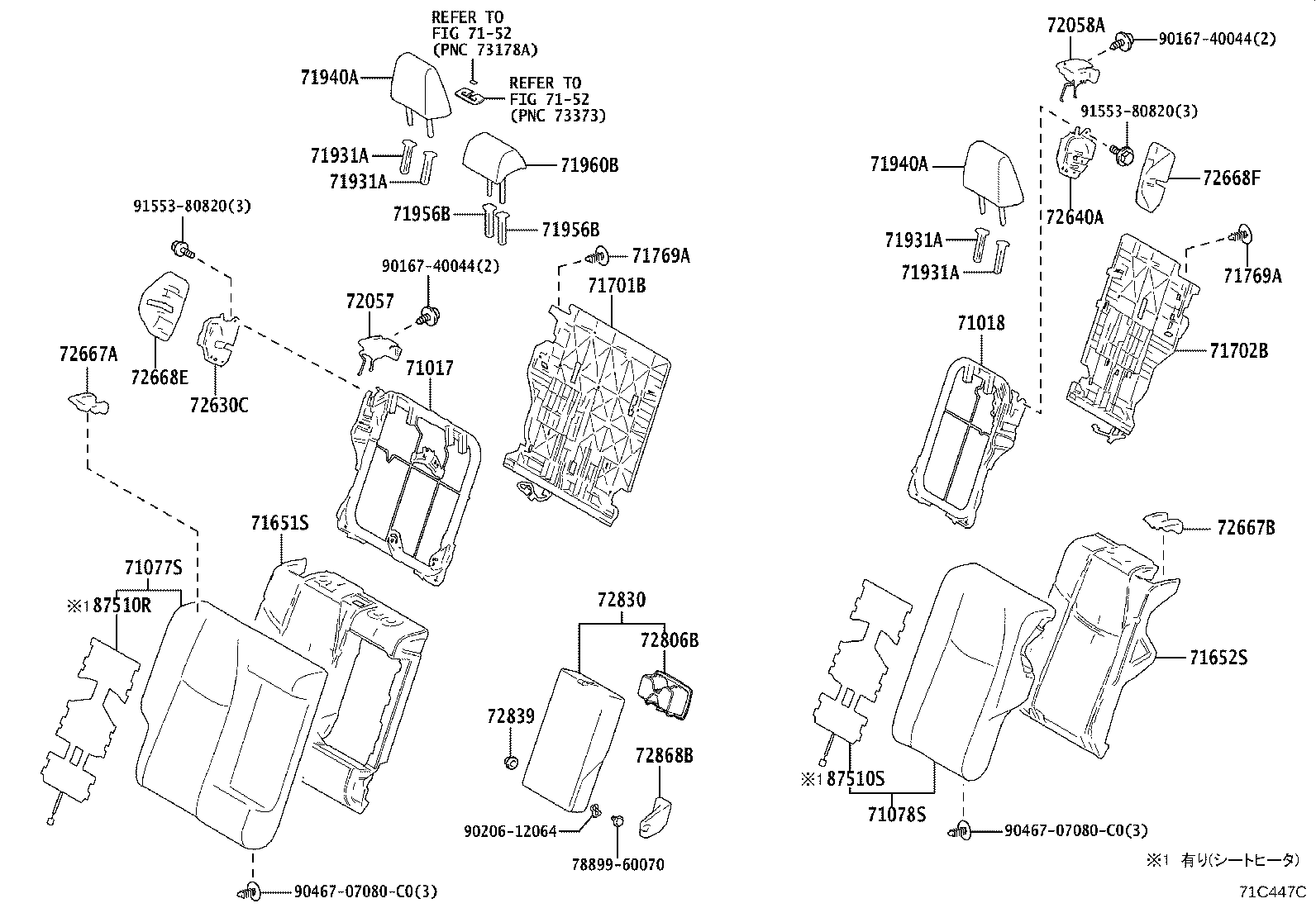

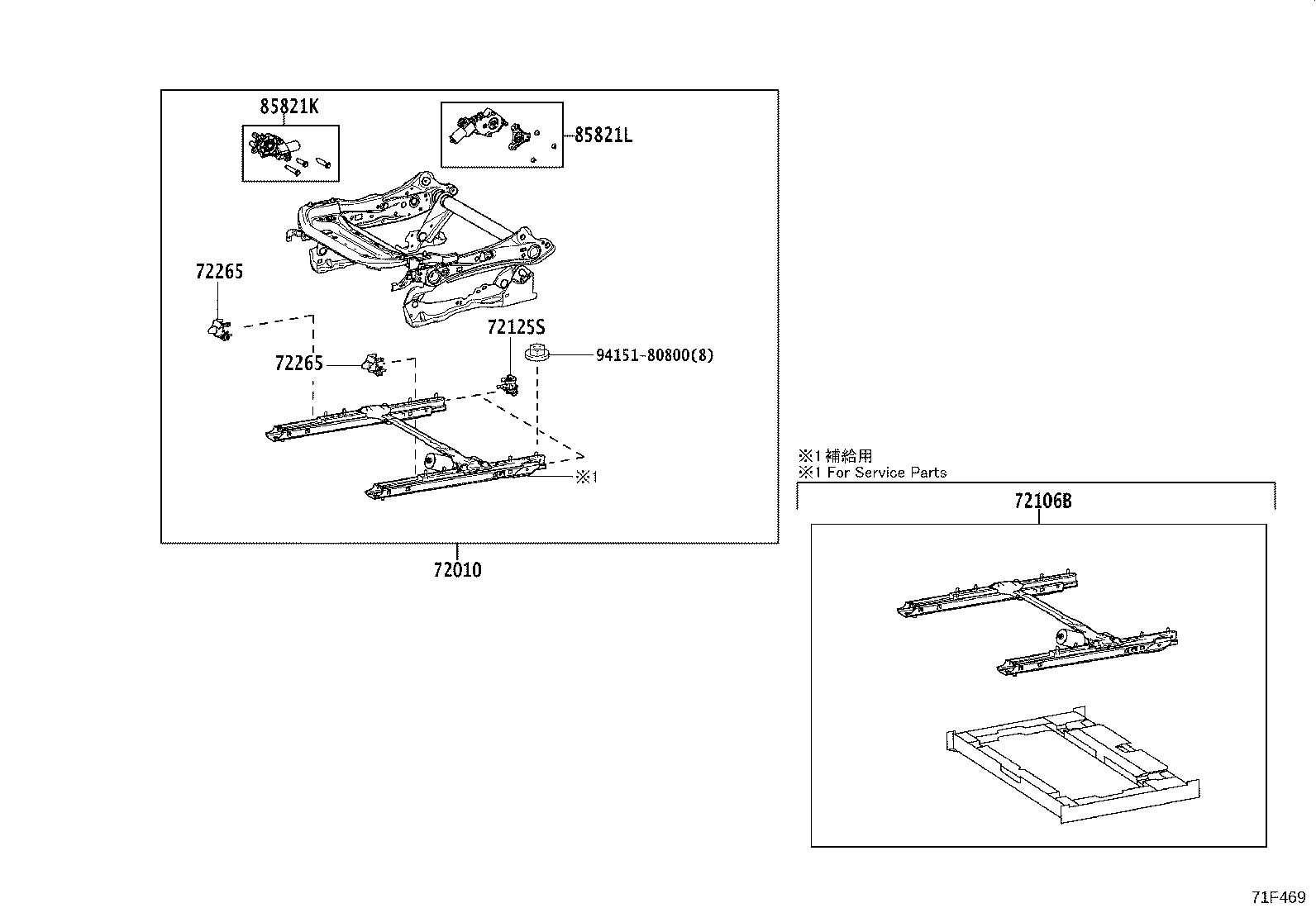

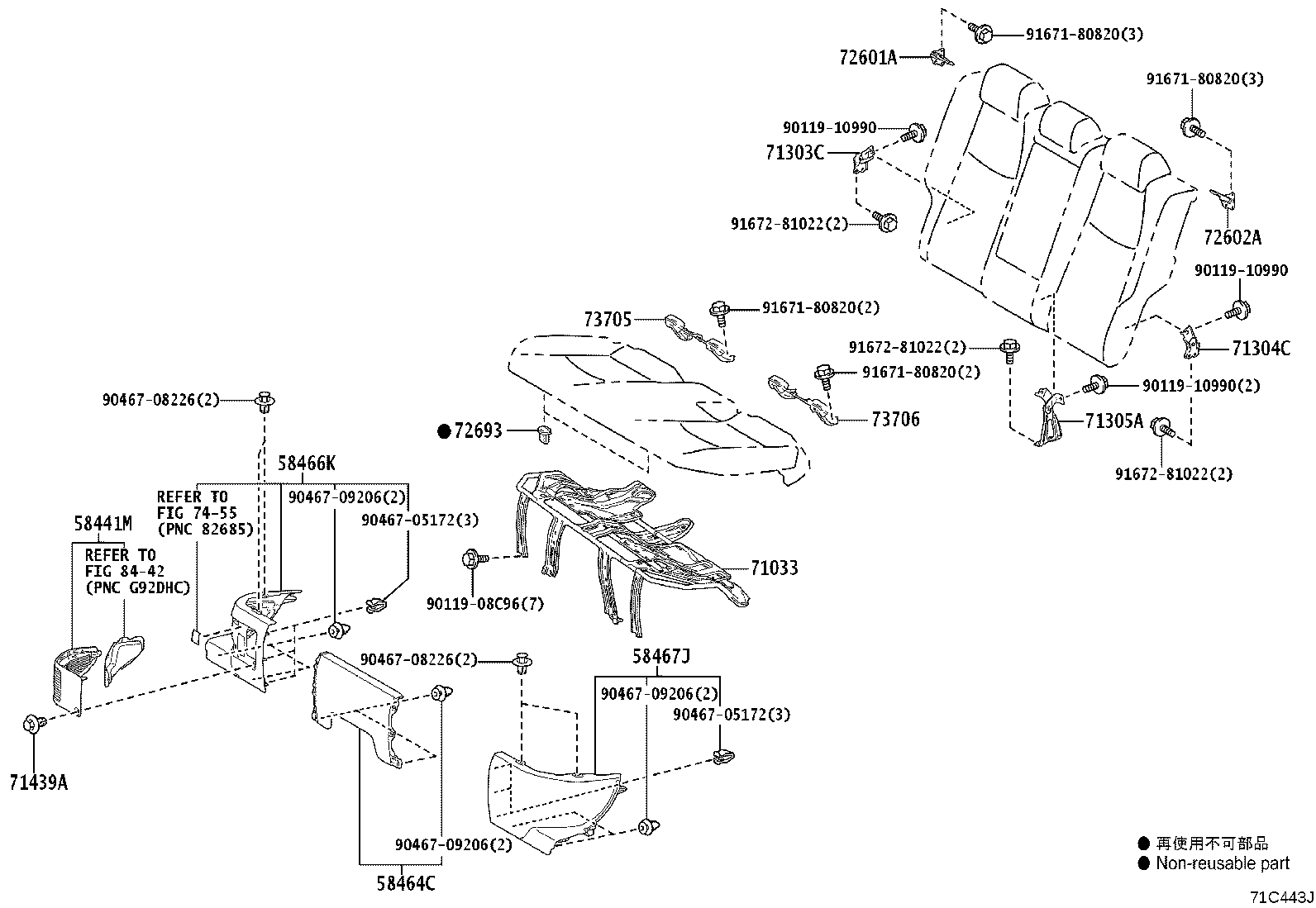

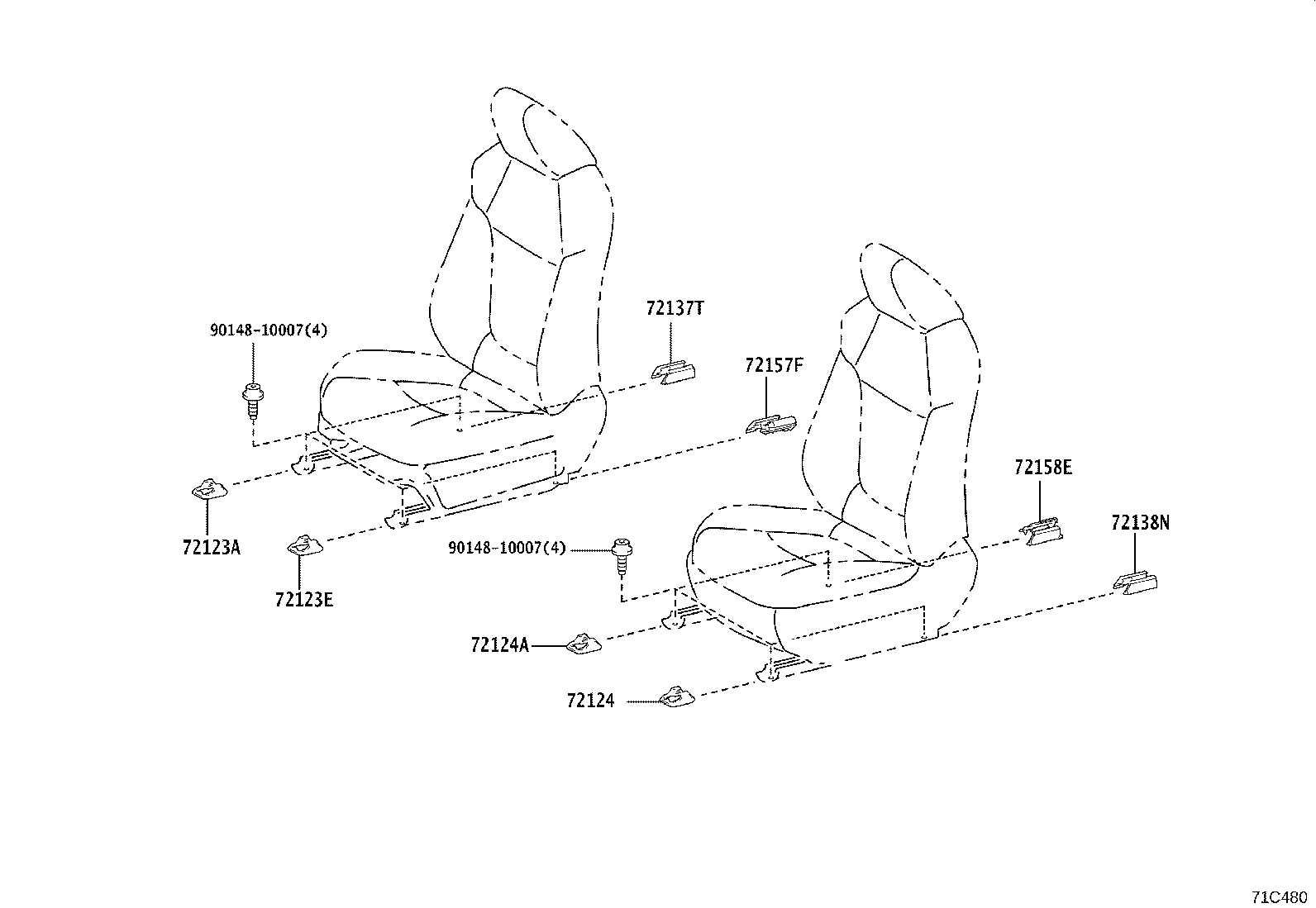

Figure 71C439H 71C439H 2020-06 → — Figure 71C441I 71C441I 2020-06 → — Figure 71D212A 71D212A 2020-06 → — Figure 71C442A 71C442A 2020-06 → — Figure 71C480 71C480 2020-06 → — Figure 71F469 71F469 2020-06 → — Figure 71F410A 71F410A 2020-06 → — Figure 71C447C 71C447C 2020-06 → — Figure 71C444A 71C444A 2020-06 → — Figure 71C443J 71C443J 2020-06 → —

Part groups

PNCDescription
58441M Cover, Battery Service Hole
58464C Board, Battery Service Cover, NO.1
58466K Board, Battery Service Cover, NO.2
58467J Board, Battery Service Cover, NO.3
71013S Frame Sub-assy, Front Seatback, RH
71014S Frame Sub-assy, Front Seatback, LH
71017 Frame Sub-assy, Rear Seatback, RH
71018 Frame Sub-assy, Rear Seatback, LH
71033 Leg Sub-assy, Rear Seat Cushion
71051A Spring Sub-assy, Front Seat Cushion, RH
71052A Spring Sub-assy, Front Seat Cushion, LH
71054S Spring Sub-assy, Front Seatback, LH
71071S Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71072S Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
71073S Cover, Front Seatback, RH(FOR SEPARATE TYPE)
71074S Cover, Front Seatback, LH(FOR SEPARATE TYPE)
71075B Cover, Rear Seat Cushion (FOR BENCH TYPE)
71077S Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
71078S Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
71303C Hinge Sub-assy, Rear Seatback, RH
71304C Hinge Sub-assy, Rear Seatback, LH
71305A Hinge Sub-assy, Rear Seatback, Center
71439A Clip
71511S Pad, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71512S Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE)
71551S Pad, Front Seatback, RH(FOR SEPARATE TYPE)
71552S Pad, Front Seatback, LH(FOR SEPARATE TYPE)
71587 Protector, Front Seatback Edge
71587B Protector, Front Seatback Edge
71611 Pad, Rear Seat Cushion
71651S Pad, Rear Seatback, RH(FOR SEPARATE TYPE)
71652S Pad, Rear Seatback, LH(FOR SEPARATE TYPE)
71701B Board Sub-assy, Rear Seatback, RH
71702B Board Sub-assy, Rear Seatback, LH
71759C Hook, Front Seatback, NO.1
71759D Hook, Front Seatback, NO.2
71769A Clip, Rear Seatback Board
71811D Shield, Front Seat Cushion, RH
71812D Shield, Front Seat Cushion, LH
7181A Holder, Front Seat Cushion Wire Harness, RH
7181B Holder, Front Seat Cushion Wire Harness, LH
71861 Shield, Front Seat Cushion, Inner RH
71862 Shield, Front Seat Cushion, Inner LH
71867V Shield, Front Seat Cushion, Front RH
71868N Shield, Front Seat Cushion, Front LH
71873 Shield, Front Seat Cushion, Lower RH
71873A Shield, Front Seat Cushion, Lower
71874 Shield, Front Seat Cushion, Lower LH
71875F Cover, Reclining Adjuster Inside, RH (FOR RH SEAT)
71875G Cover, Reclining Adjuster Inside, RH (FOR LH SEAT)
71876F Cover, Reclining Adjuster Inside, LH (FOR RH SEAT)
71876G Cover, Reclining Adjuster Inside, LH (FOR LH SEAT)
71910A Headrest Assy, Front Seat
71931 Support, Front Seat Headrest
71931A Support, Rear Seat Headrest
71940A Headrest Assy, Rear Seat
71956B Support, Rear Seat Headrest
71960B Headrest Assy, Rear Seat, Center
72010 Adjuster Assy, Front Seat, RH
72020 Adjuster Assy, Front Seat, LH
72057 Lever Sub-assy, Rear Seat Lock Control, RH
72058A Lever Sub-assy, Rear Seat Lock Control, LH
72106B Rail Sub-assy, Seat Track, Upper RH
72108 Rail Sub-assy, Seat Track, Upper LH
72123A Cover, Seat Track Bracket, Outer Front RH
72123E Cover, Seat Track Bracket, Inner Front RH
72124 Cover, Seat Track Bracket, Outer Front LH
72124A Cover, Seat Track Bracket, Inner Front LH
72125S Cover, Front Seat Track, Upper Rear RH
72125T Cover, Front Seat Track, Upper Rear LH
72137T Cover, Seat Track Bracket, Outer Rear RH
72138N Cover, Seat Track Bracket, Outer Rear LH
72157F Cover, Seat Track Bracket, Inner Rear RH
72158E Cover, Seat Track Bracket, Inner Rear LH
72211 Handle, Seat Track Adjusting
72265 Cover, Seat Track Upper Rail, RH
72266 Cover, Seat Track Upper Rail, LH
72526A Handle, Reclining Adjuster Release, LH
72552B Cover, Reclining Hinge, LH
72601A Striker Sub-assy, Rear Seatback Look, RH
72602A Striker Sub-assy, Rear Seatback Lock, LH
72630C Lock Assy, Rear Seatback, RH
72640A Lock Assy, Rear Seatback, LH
72667A Bezel, Rear Seatback Lock, Upper RH
72667B Bezel, Rear Seatback Lock, Upper LH
72668E Bezel, Rear Seatback Lock, Lower RH
72668F Bezel, Rear Seatback Lock, Lower LH
72693 Hook, Rear Seat Cushion Lock
72713 Bracket, Seat Adjuster Shield Clamp, RH
72750D Adjuster Assy, Lumbar Support, RH
72760D Adjuster Assy, Lumbar Support, LH
72806B Holder Sub-assy, Rear Seat Center Armrest Cup
72830 Armrest Assy, Rear Seat, Center
72839 Shim, Rear Seat Armrest Hinge
72868B Cover, Center Armrest Hinge
73705 Bracket Sub-assy, Child Restraint Seat Anchor, RH
73706 Bracket Sub-assy, Child Restraint Seat Anchor, LH
73910A Airbag Assy, Front Seat, RH
73920A Airbag Assy, Front Seat, LH
79977 Felt, Seatback
79977A Felt, Seatback
79977B Felt, Seatback Frame
82667D Holder, Connector
85821K Motor Assy, Power Seat Tilt, RH
85821L Motor Assy, Power Seat Lifter, RH
85860A Blower Assy, Seat Cushion Climate Control, RH
85860B Blower Assy, Seat Cushion Climate Control, LH
85867H Blower, Seatback Climate Control, RH
87501A Control Sub-assy, Seat Heater, RH
87501B Control Sub-assy, Seat Heater, LH
87510K Heater Assy, Front Seat Cushion, RH
87510L Heater Assy, Front Seat Cushion, LH
87510M Heater Assy, Front Seatback, RH
87510N Heater Assy, Front Seatback, LH
87510P Heater Assy, Seat
87510Q Heater Assy, Seat
87510R Heater Assy, Seat
87510S Heater Assy, Seat
