Toyota RAV4 Phv

2020-06 → present · chassis AXAP54 · catalogue 666110 · Japan

Supported model Data version 2023-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Armrest & Visor

12 part groups · 2 illustrations

Illustrations

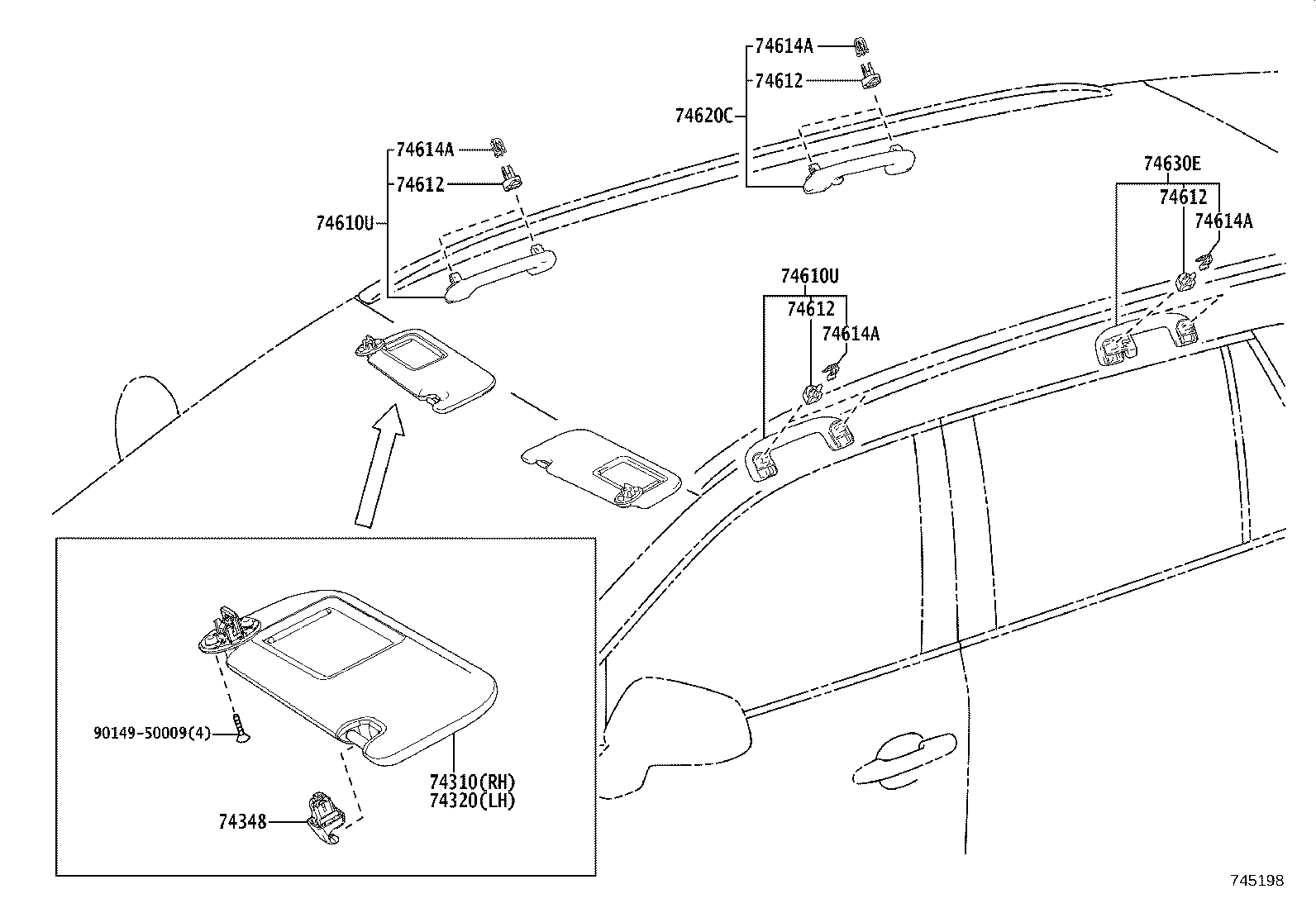

Figure 745197 745197 2020-06 → — Figure 745198 745198 2020-06 → —

Part groups

PNCDescription
74231 Panel, Front Armrest Base, Upper RH
74232 Panel, Front Armrest Base, Upper LH
74271A Panel, Rear Door Armrest Base, Upper RH
74272A Panel, Rear Door Armrest Base, Upper LH
74310 Visor Assy, RH
74320 Visor Assy, LH
74348 Holder, Visor
74610U Grip Assy, Assist
74612 Cover, Assist Grip
74614A Plate, Assist Grip Lock
74620C Grip Assy, Assist, Rear RH
74630E Grip Assy, Assist, Rear LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
