Toyota RAV4 Phv

2020-06 → present · chassis AXAP54 · catalogue 666110 · Japan

Supported model Data version 2023-10

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Fog Lamp

5 part groups · 2 illustrations

Illustrations

Figure 819345A

819345A 2020-06 → —

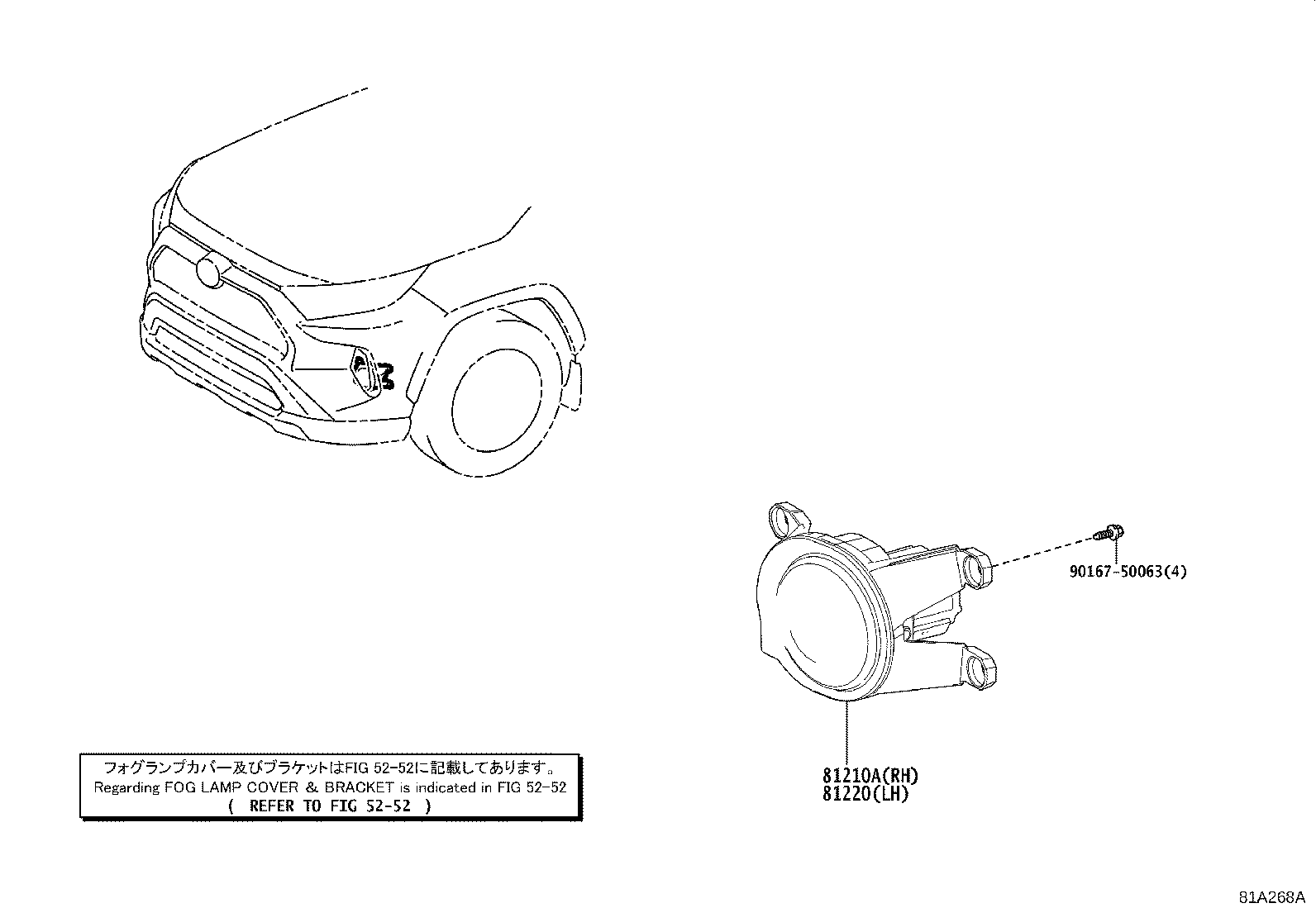

Figure 81A268A

81A268A 2021-12 → —

Part groups

PNC	Description
81210A	Lamp Assy, Fog, RH
81210B	Bulb, Fog Lamp
81211C	Lamp Unit, Fog Lamp, RH
81220	Lamp Assy, Fog, LH
81221C	Lamp Unit, Fog Lamp, LH

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
