Toyota RAV4 Phv
2020-06 → present · chassis AXAP54 · catalogue 666110 · Japan
Supported model
Data version 2023-10

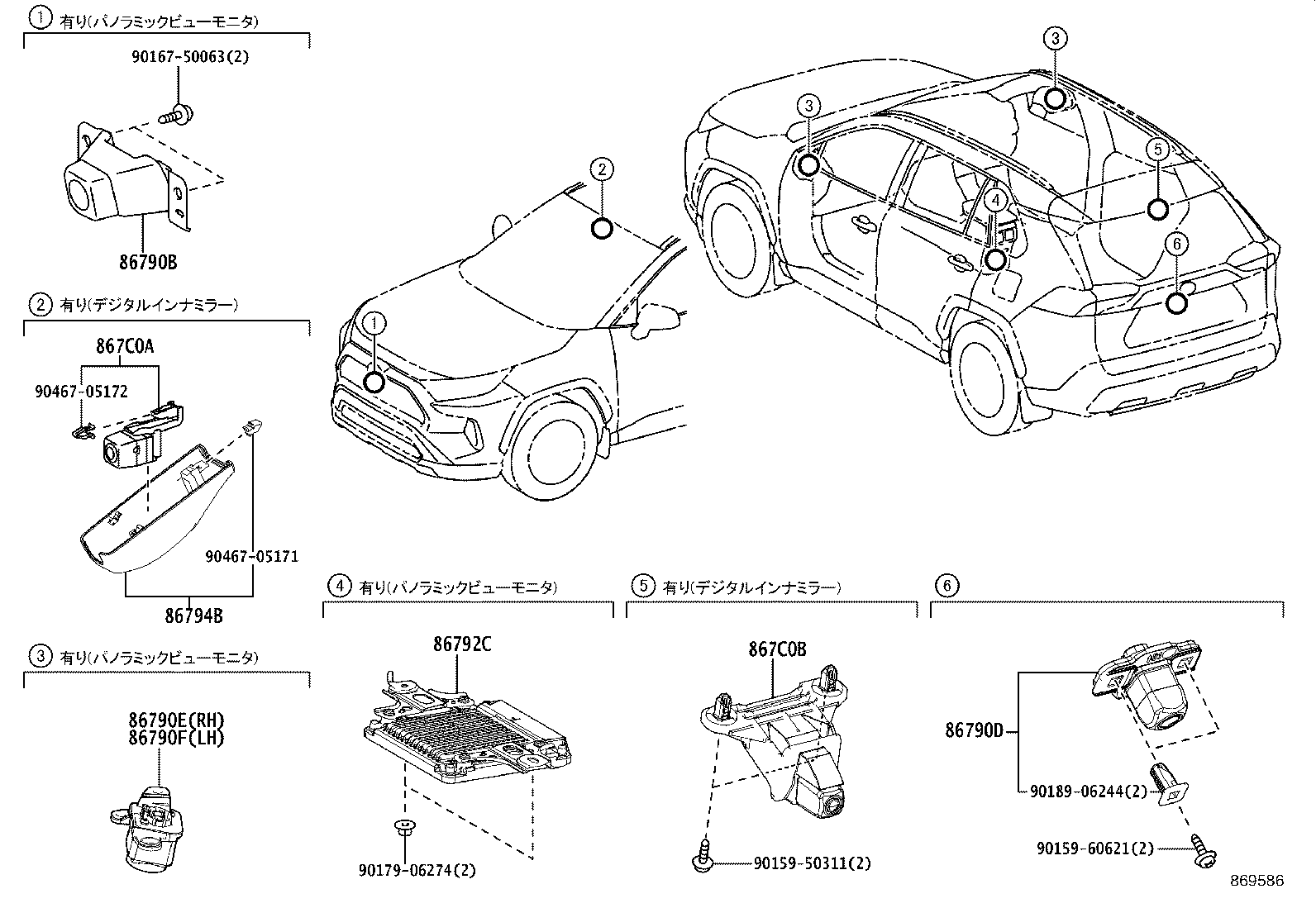

Camera & Rear Monitor Display
8 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 86790B | Camera Assy, Television, FR |
| 86790D | Camera Assy, Television, RR |
| 86790E | Camera Assy, Television, Side RH |
| 86790F | Camera Assy, Television, Side LH |
| 86792C | Computer, Parking Assist |
| 86794B | Cover, Television Camera |
| 867C0A | Camera Assy, Inner Mirror, FR |
| 867C0B | Camera Assy, Inner Mirror, RR |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
