Toyota Hilux

1978-08 → 1988-09 · chassis RN3#,4#,LN3#,4# · catalogue 671130 · Japan

Discontinued model Data version 1989-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

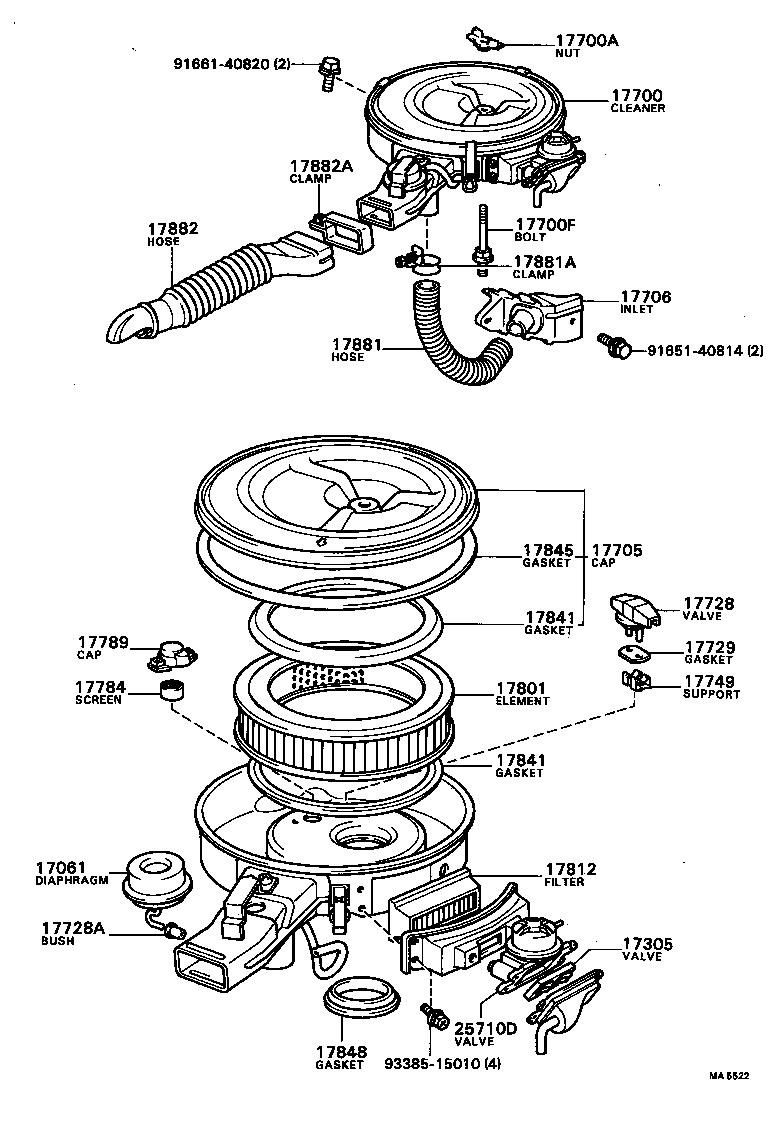

Exploded illustration MA5522 17700A — NUT, WING(FOR AIR CLEANER) (1 parts) 9166140820 — not listed in this catalogue 17700 — CLEANER ASSY, AIR (12 parts) 17882A — CLAMP(FOR AIR CLEANER HOSE, NO.2) (2 parts) 17700F — BOLT, STUD(FOR AIR CLEANER SETTING) (2 parts) 17882 — HOSE, AIR CLEANER, NO.2 (3 parts) 17881A — CLAMP(FOR AIR CLEANER HOSE, NO.1) (4 parts) 17706 — INLET SUB-ASSY, AIR CLEANER, NO.2 (3 parts) 17881 — HOSE, AIR CLEANER, NO.1 (5 parts) 9165140814 — not listed in this catalogue 17845 — GASKET, AIR CLEANER CAP (5 parts) 17705 — CAP SUB-ASSY, AIR CLEANER (6 parts) 17728 — VALVE, THERMOSTATIC (2 parts) 17841 — GASKET, FILTER ELEMENT (3 parts) 17789 — CAP, AIR CLEANER SCREEN (1 parts) 17729 — GASKET, THERMOSTAT VALVE (1 parts) 17749 — SUPPORT, THERMOSTAT VALVE (1 parts) 17784 — SCREEN, AIR CLEANER (1 parts) 17801 — ELEMENT SUB-ASSY, AIR CLEANER FILTER (5 parts) 17841 — GASKET, FILTER ELEMENT (3 parts) 17061 — DIAPHRAGM SUB-ASSY (2 parts) 17812 — FILTER, AIR CLEANER, NO.2 (2 parts) 17728A — BUSH (2 parts) 17305 — VALVE SUB-ASSY, REED (2 parts) 25710D — VALVE ASSY, AIR SWITCHING (1 parts) 17848 — GASKET, AIR CLEANER TO CARBURETOR (3 parts) 9338515010 — not listed in this catalogue
MA5522 · 24 callouts, 3 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
69 parts on this figure
Part number Description Fitment Price
17061 — Diaphragm Sub-assy
17061-31010 Diaphragm Sub-assy
1981-10 → 1988-09 ended
12RJ RN35,45 ¥3,750
17061-34010 note Diaphragm Sub-assy
1979-10 → 1983-10 ended
18RJ RN36,39 ¥3,770
17305 — Valve Sub-assy, Reed
17305-15010 Valve Sub-assy, Reed
1981-10 → 1983-10 ended
18RJ RN39 ¥4,770
17305-31010 Valve Sub-assy, Reed
1979-12 → 1988-09 ended
12RJ RN33,35,4# —
17700 — Cleaner Assy, Air
17700-31360 Cleaner Assy, Air
1978-08 → 1979-09 ended
12RJ RN30,40 ¥15,800
17700-31361 Cleaner Assy, Air
1979-09 → 1979-12 ended
12RJ RN30,40 ¥16,000
17700-31380 note Cleaner Assy, Air
1978-08 → 1979-09 ended
12RJ RN30,40 ¥19,900
17700-31381 note Cleaner Assy, Air
1979-09 → 1979-12 ended
12RJ RN30,40 ¥20,100
17700-31451 Cleaner Assy, Air
1979-12 → 1981-10 ended
12RJ RN33,43 —
17700-31510 Cleaner Assy, Air
1981-10 → 1983-07 ended
12RJ RN35,45 —
17700-31511 Cleaner Assy, Air
1983-07 → 1988-09 ended
12RJ RN35,45 ¥39,400
17700-34610 Cleaner Assy, Air
1979-10 → 1980-12 ended
18RJ RN36 —
17700-34620 note Cleaner Assy, Air
1979-10 → 1981-10 ended
18RJ RN36 —
17700-34700 note Cleaner Assy, Air
1981-10 → 1983-10 ended
18RJ RN39 —
17700-54070 Cleaner Assy, Air
1979-12 → 1981-01 ended
L LN30,40 ¥31,500
17700-54071 Cleaner Assy, Air
1981-01 → 1988-09 ended
L,2L LN3#,4# ¥31,700
17700A — Nut, Wing(FOR AIR CLEANER)
90175-06003 Nut, Wing(FOR AIR CLEANER)
1978-08 → 1988-09 ended
12RJ,18RJ RN3#,4# —
17700F — Bolt, Stud(FOR AIR CLEANER SETTING)
90116-06106 Bolt, Stud(FOR AIR CLEANER SETTING)
1978-08 → 1988-09 ended
12RJ RN30,33,35,4# ¥180
90116-06143 Bolt, Stud(FOR AIR CLEANER SETTING)
1979-10 → 1983-10 ended
18RJ RN36,39 ¥210
17705 — Cap Sub-assy, Air Cleaner
17705-31032 note Cap Sub-assy, Air Cleaner
1978-08 → 1981-10 ended
12RJ RN30,33,4# —
17705-31033 note Cap Sub-assy, Air Cleaner
1981-10 → 1988-09 ended
12RJ RN35,45 —
17705-34230 Cap Sub-assy, Air Cleaner
1979-10 → 1981-10 ended
18RJ RN36 —
17705-34231 Cap Sub-assy, Air Cleaner
1981-10 → 1983-10 ended
18RJ RN39 —
17705-54031 Cap Sub-assy, Air Cleaner
1979-12 → 1981-01 ended
L LN30,40 —
17705-54032 Cap Sub-assy, Air Cleaner
1981-01 → 1988-09 ended
L,2L LN3#,4# —
17706 — Inlet Sub-assy, Air Cleaner, NO.2
17895-31011 note Inlet Sub-assy, Air Cleaner, NO.2
1978-08 → 1979-12 ended
12RJ RN30,40 ¥3,590
17895-31020 Inlet Sub-assy, Air Cleaner, NO.2
1979-12 → 1988-09 ended
12RJ RN33,35,4# ¥2,660
17895-34050 note Inlet Sub-assy, Air Cleaner, NO.2
1979-10 → 1983-10 ended
18RJ RN36,39 ¥2,820
17728 — Valve, Thermostatic
17728-24030 Valve, Thermostatic
1981-10 → 1988-09 ended
12RJ RN35,45 ¥7,400
17728-34010 note Valve, Thermostatic
1979-10 → 1983-10 ended
18RJ RN36,39 ¥7,400
17728A — Bush
90386-03001 note Bush
1979-10 → 1983-10 ended
18RJ RN36,39 ¥250
90386-03001 Bush
1981-10 → 1988-09 ended
12RJ RN35,45 ¥250
17729 — Gasket, Thermostat Valve
17729-34010 note Gasket, Thermostat Valve
1979-10 → 1983-10 ended
18RJ RN36,39 —
17749 — Support, Thermostat Valve
17749-34010 note Support, Thermostat Valve
1979-10 → 1983-10 ended
18RJ RN36,39 —
17784 — Screen, Air Cleaner
17784-31010 Screen, Air Cleaner
1978-08 → 1988-09 ended
12RJ,18RJ RN3#,4# —
17789 — Cap, Air Cleaner Screen
17789-31020 Cap, Air Cleaner Screen
1978-08 → 1988-09 ended
12RJ,18RJ RN3#,4# —
17801 — Element Sub-assy, Air Cleaner Filter
17801-25010 Element Sub-assy, Air Cleaner Filter
1978-08 → 1981-03 ended
12RJ RN30,33,4# ¥1,370
17801-25010 Element Sub-assy, Air Cleaner Filter
1981-10 → 1988-09 ended
12RJ RN35,45 ¥1,370
17801-31080 Element Sub-assy, Air Cleaner Filter
1981-03 → 1981-10 ended
12RJ RN33,43 ¥1,680
17801-34060 Element Sub-assy, Air Cleaner Filter
1979-10 → 1983-10 ended
18RJ RN36,39 ¥1,580
17801-54030 Element Sub-assy, Air Cleaner Filter
1979-12 → 1988-09 ended
L,2L LN3#,4# ¥2,940
17812 — Filter, Air Cleaner, NO.2
17812-31010 Filter, Air Cleaner, NO.2
1981-10 → 1983-10 ended
18RJ RN39 ¥1,970
17812-31010 Filter, Air Cleaner, NO.2
1979-12 → 1988-09 ended
12RJ RN33,35,4# ¥1,970
17841 — Gasket, Filter Element
17841-31020 Gasket, Filter Element
1978-08 → 1988-09 ended
12RJ RN30,33,35,4# —
17841-33011 Gasket, Filter Element
1979-10 → 1983-10 ended
18RJ RN36,39 —
17841-54010 Gasket, Filter Element
1979-12 → 1988-09 ended
L,2L LN3#,4# —
17845 — Gasket, Air Cleaner Cap
17845-25010 Gasket, Air Cleaner Cap
1979-12 → 1982-10 ended
12RJ RN33,35,4# —
17845-31020 Gasket, Air Cleaner Cap
1978-08 → 1979-12 ended
12RJ RN30,40 —
17845-34050 Gasket, Air Cleaner Cap
1979-10 → 1983-10 ended
18RJ RN36,39 —
17845-42010 note Gasket, Air Cleaner Cap
1982-10 → 1988-09 ended
12RJ RN35,45 —
17845-54010 Gasket, Air Cleaner Cap
1979-12 → 1988-09 ended
L,2L LN3#,4# ¥1,030
17848 — Gasket, Air Cleaner TO Carburetor
90430-63001 Gasket, Air Cleaner TO Carburetor
1979-12 → 1988-09 ended
12RJ RN33,35,4# —
90430-63187 Gasket, Air Cleaner TO Carburetor
1978-08 → 1979-12 ended
12RJ RN30,40 ¥310
90430-72003 Gasket, Air Cleaner TO Carburetor
1979-10 → 1983-10 ended
18RJ RN36,39 ¥0
17881 — Hose, Air Cleaner, NO.1
17881-24021 Hose, Air Cleaner, NO.1
1981-12 → 1988-09 ended
12RJ RN35,45 —
17881-25012 note Hose, Air Cleaner, NO.1
1978-08 → 1979-12 ended
12RJ RN30,40 —
17881-34110 note Hose, Air Cleaner, NO.1
1979-10 → 1983-10 ended
18RJ RN36,39 —
17881-54060 Hose, Air Cleaner, NO.1
1979-12 → 1988-09 ended
L,2L LN3#,4# ¥4,640
17882-31040 Hose, Air Cleaner, NO.1
1979-12 → 1981-12 ended
12RJ RN33,35,4# ¥3,060
17881A — Clamp(FOR AIR CLEANER HOSE, NO.1)
96111-10460 note Clamp(FOR AIR CLEANER HOSE, NO.1)
1978-08 → 1979-12 ended
12RJ RN30,40 ¥190
96111-10460 note Clamp(FOR AIR CLEANER HOSE, NO.1)
1979-10 → 1983-10 ended
18RJ RN36,39 ¥190
96111-10460 Clamp(FOR AIR CLEANER HOSE, NO.1)
1979-12 → 1988-09 ended
12RJ RN33,35,4# ¥190
96111-10690 note Clamp(FOR AIR CLEANER HOSE, NO.1)
1979-12 → 1988-09 ended
L,2L LN3#,4# ¥160
17882 — Hose, Air Cleaner, NO.2
17882-89104 Hose, Air Cleaner, NO.2
1979-12 → 1988-09 ended
L,2L LN3#,4# ¥3,210
17882-89106 Hose, Air Cleaner, NO.2
1980-08 → 1988-09 ended
12RJ,18RJ RN3#,4# ¥2,880
17882-95110 Hose, Air Cleaner, NO.2
1979-10 → 1980-08 ended
12RJ,18RJ RN33,36,43 —
17882A — Clamp(FOR AIR CLEANER HOSE, NO.2)
90460-01003 Clamp(FOR AIR CLEANER HOSE, NO.2)
1979-10 → 1988-09 ended
12RJ,18RJ RN33,35,36,39,4# ¥300
96111-10690 note Clamp(FOR AIR CLEANER HOSE, NO.2)
1979-12 → 1988-09 ended
L,2L LN3#,4# ¥160
25710D — Valve Assy, Air Switching
25710-15011 Valve Assy, Air Switching
1981-10 → 1983-10 ended
18RJ RN39 ¥6,200
