Toyota Hilux

1978-08 → 1988-09 · chassis RN3#,4#,LN3#,4# · catalogue 671130 · Japan

Discontinued model Data version 1989-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Manifold Air Injection System

10 part groups · 4 illustrations

Illustrations

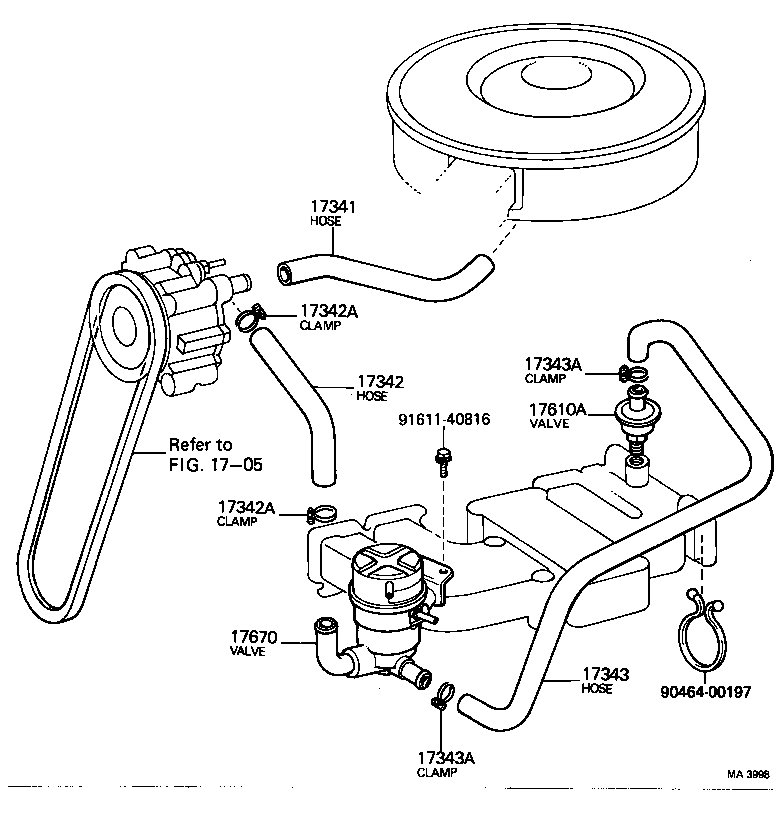

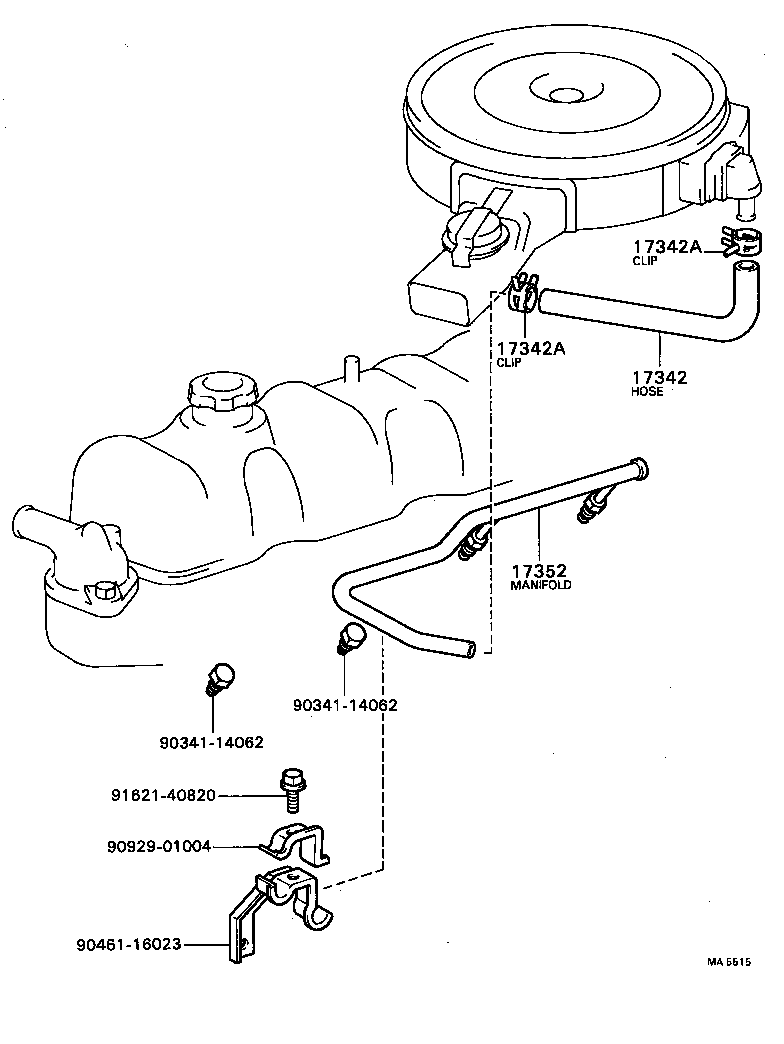

Figure MA4379A MA4379A 1979-12 → 1981-10 Figure MA5515 MA5515 1981-10 → — Figure MA3998 MA3998 1979-10 → 1981-10 Figure MA5523 MA5523 1981-10 → 1983-10

Part groups

PNCDescription
17341 Hose, NO.1(FOR AIR INJECTION SYSTEM)
17341A Clamp OR Clip, NO.1(FOR AIR INJECTION SYSTEM HOSE, NO.1)
17342 Hose, NO.2(FOR AIR INJECTION SYSTEM)
17342A Clamp OR Clip, NO.2(FOR AIR INJECTION SYSTEM HOSE, NO.2)
17343 Hose, NO.3(FOR AIR INJECTION SYSTEM)
17343A Clamp OR Clip, NO.3(FOR AIR INJECTION SYSTEM HOSE, NO.3)
17351 Manifold, Air Injection
17352 Manifold, Air Injection, NO.2
17610A Valve, Check(FOR AIR INJECTION SYSTEM)
17670 Valve Assy, Air By-pass
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
