Toyota Hilux

1978-08 → 1988-09 · chassis RN3#,4#,LN3#,4# · catalogue 671130 · Japan

Discontinued model Data version 1989-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Vacuum Piping

11 part groups · 6 illustrations

Illustrations

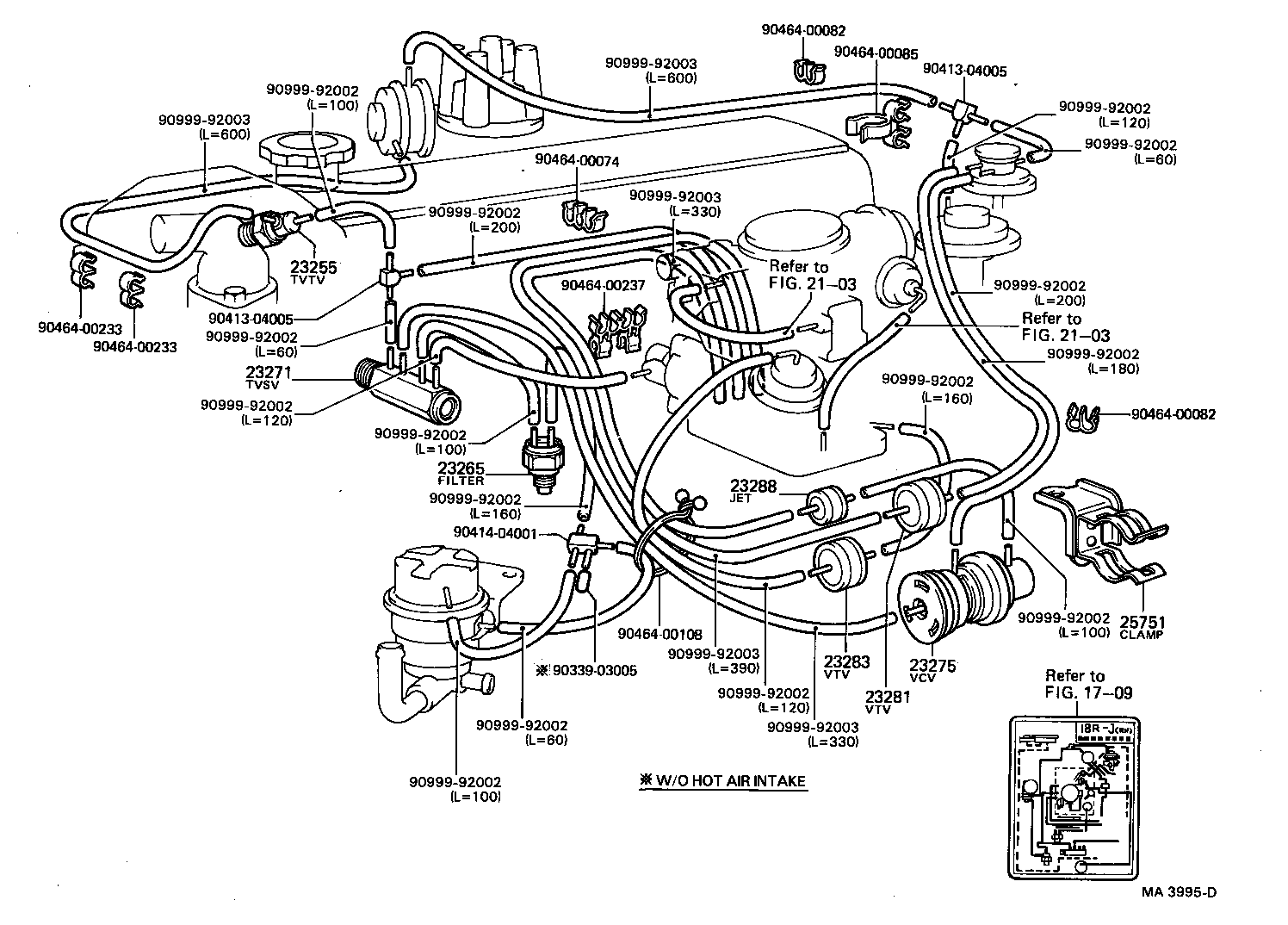

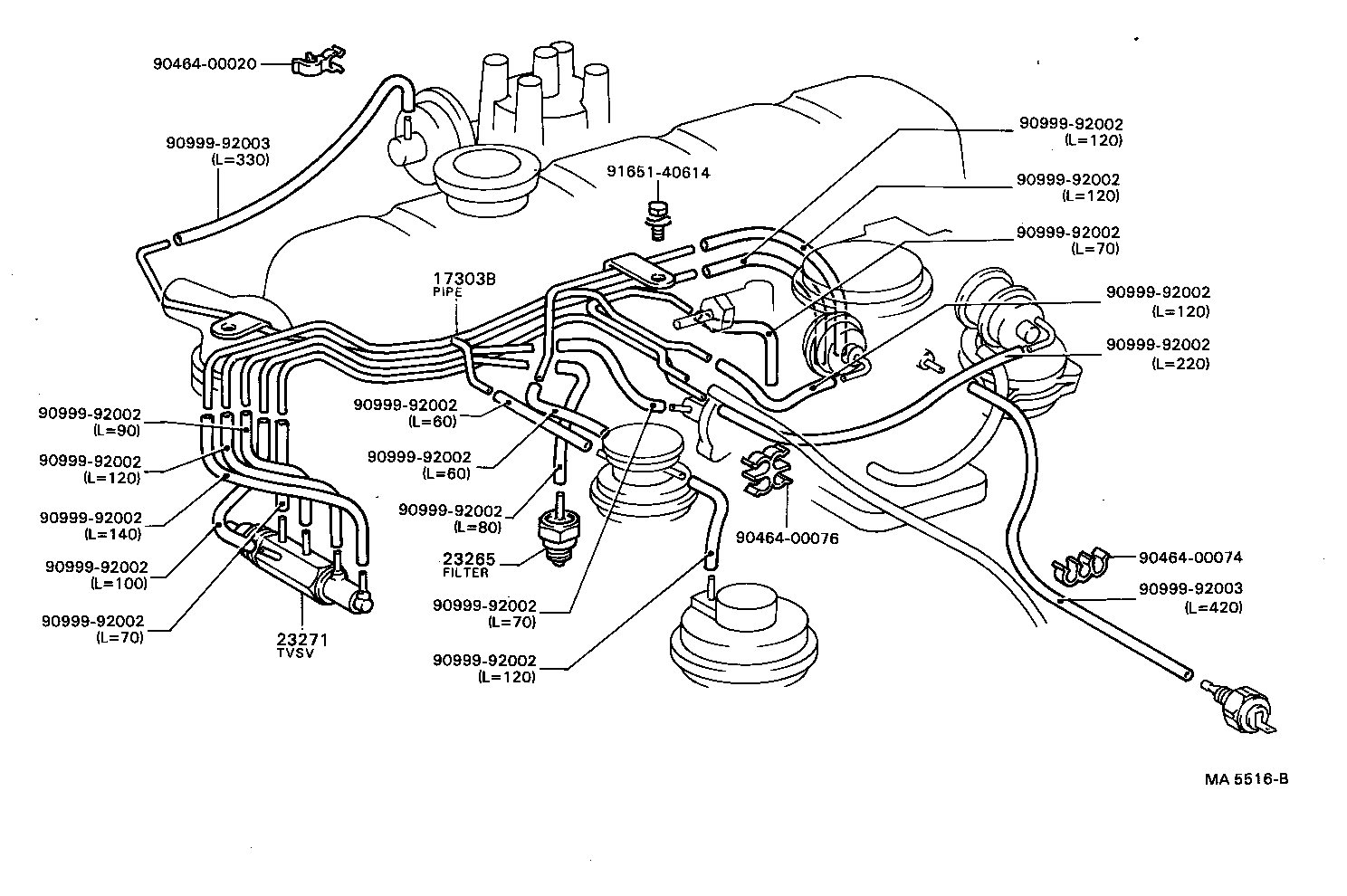

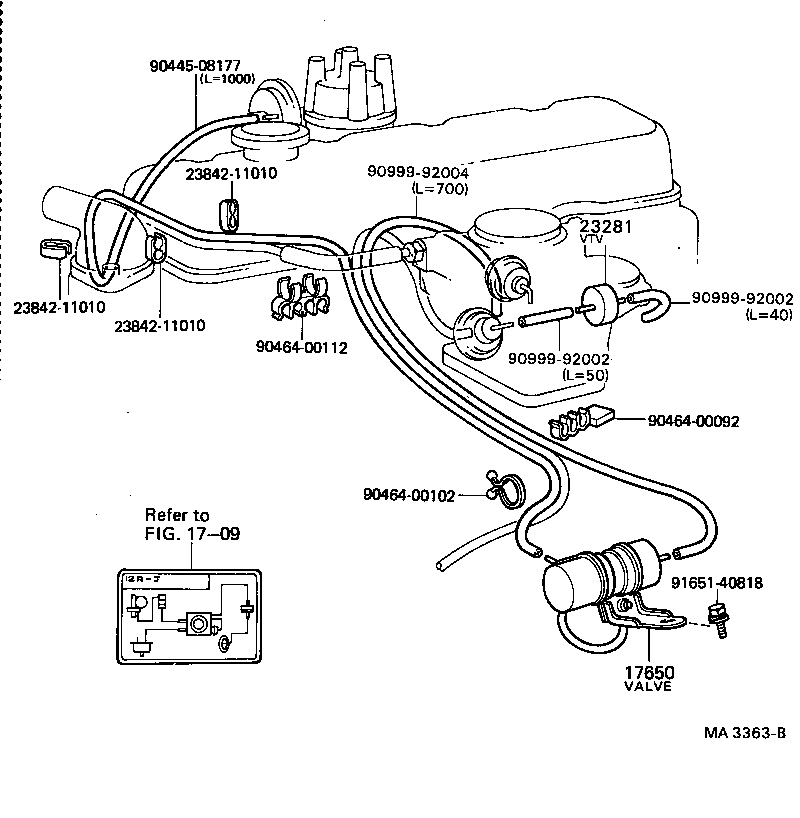

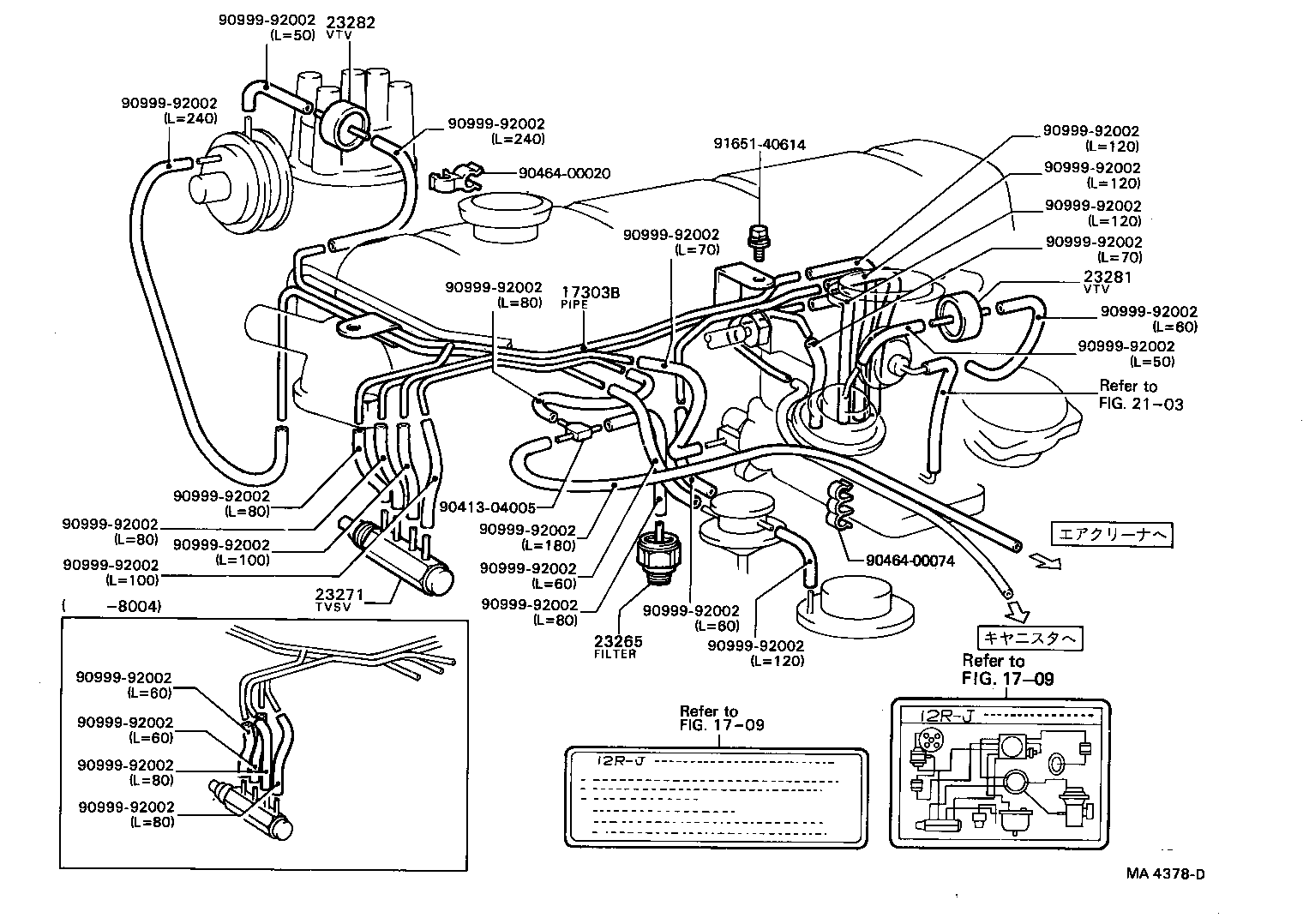

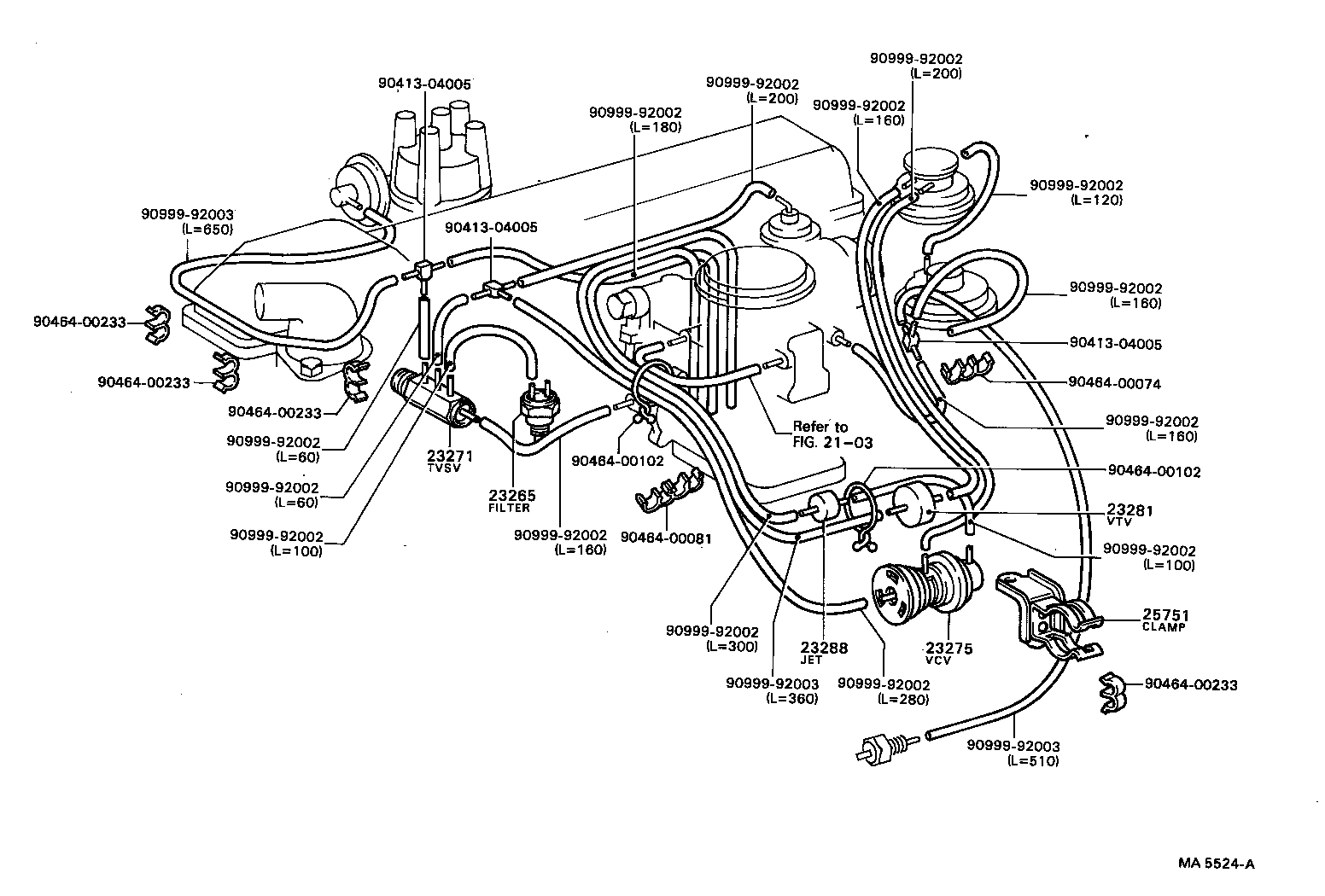

Figure MA9503A MA9503A 1978-08 → — Figure MA3363B MA3363B 1978-08 → 1979-12 Figure MA4378D MA4378D 1979-12 → 1981-10 Figure MA5516B MA5516B 1981-10 → — Figure MA3995D MA3995D 1979-10 → 1981-10 Figure MA5524A MA5524A 1981-10 → 1983-10

Part groups

PNCDescription
17303B Pipe Sub-assy, Air, NO.1
17650 Valve Assy, Vacuum Switching
23255 Valve, Thermostatic Vacuum Transmitting, NO.1
23265 Filter, Gas, NO.1
23271 Valve, Thermostatic Vacuum Switching, NO.1
23275 Valve, Vacuum Control, NO.1
23281 Valve, Vacuum Transmitting, NO.1
23282 Valve, Vacuum Transmitting, NO.2
23283 Valve, Vacuum Transmitting, NO.3
23288 Jet, NO.1
25751 Clamp, Vacuum Control Valve, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
