Toyota Hilux

1978-08 → 1988-09 · chassis RN3#,4#,LN3#,4# · catalogue 671130 · Japan

Discontinued model Data version 1989-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Transaxle OR Transmission Assy & Gasket Kit (MTM)

2 part groups · 6 illustrations

Illustrations

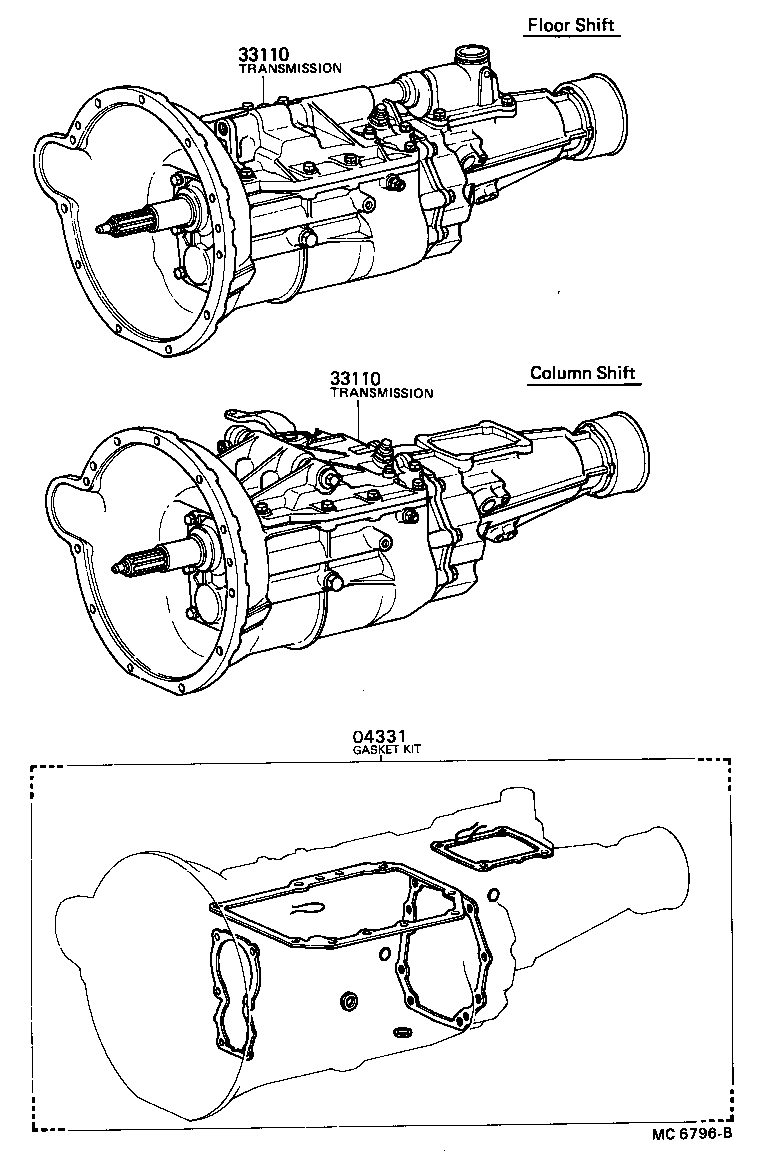

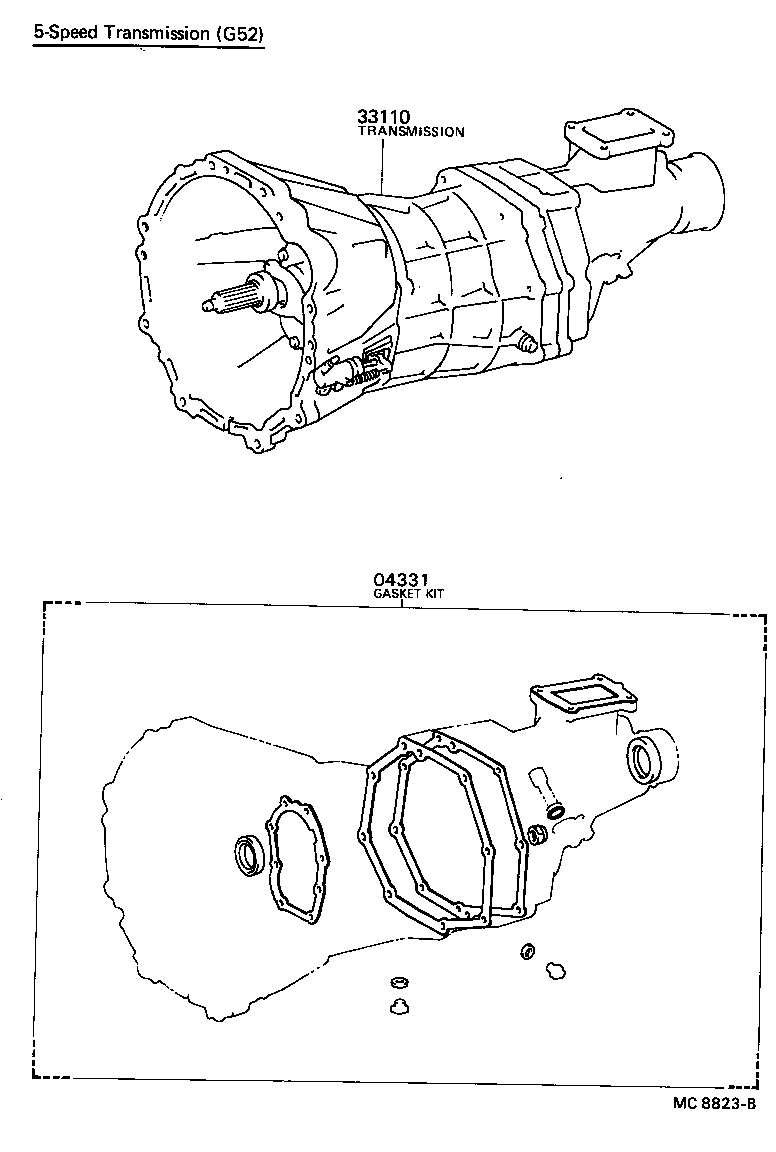

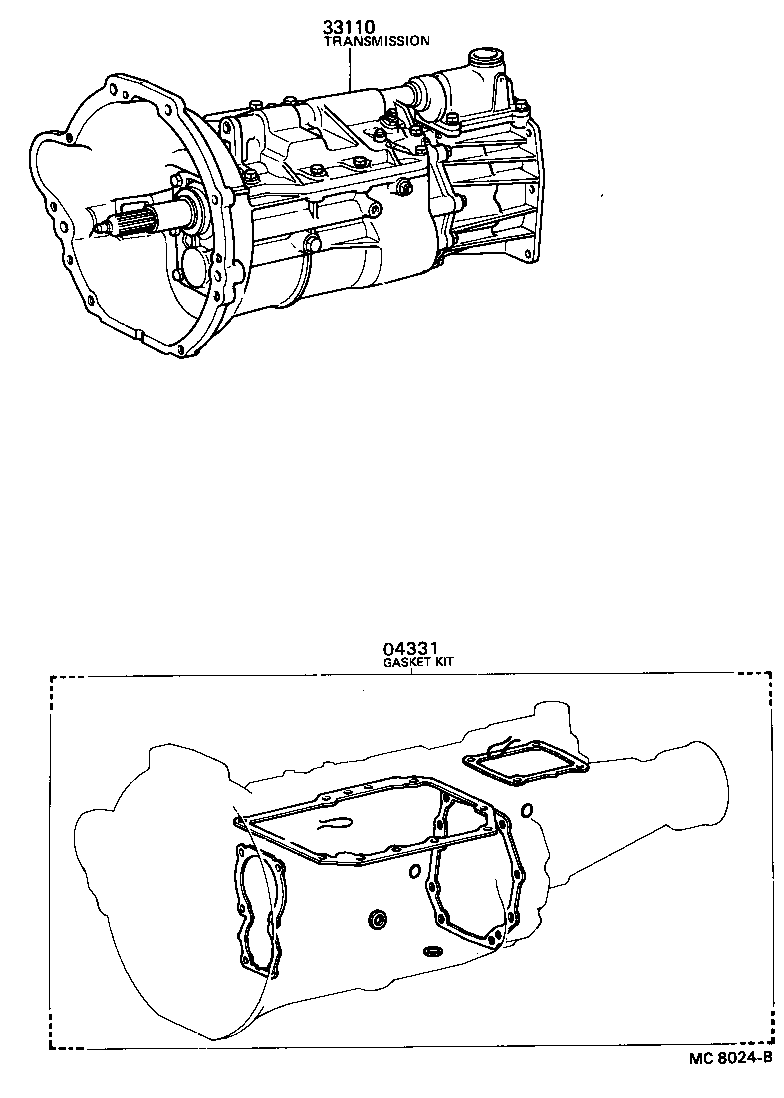

Figure MC1812D MC1812D 1978-08 → 1985-08 Figure MC6595B MC6595B 1979-10 → 1983-10 Figure MC6796B MC6796B 1979-12 → 1984-01 Figure MC8823B MC8823B 1984-01 → — Figure MC8823B MC8823B 1985-08 → — Figure MC8024B MC8024B 1981-10 → 1983-10

Part groups

PNCDescription
04331 Gasket Kit, Manual Transmission Overhaul
33110 Transmission Assy, Manual
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
