Toyota Hilux

1978-08 → 1988-09 · chassis RN3#,4#,LN3#,4# · catalogue 671130 · Japan

Discontinued model Data version 1989-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Bumper & Bumper Stay

6 part groups · 3 illustrations

Illustrations

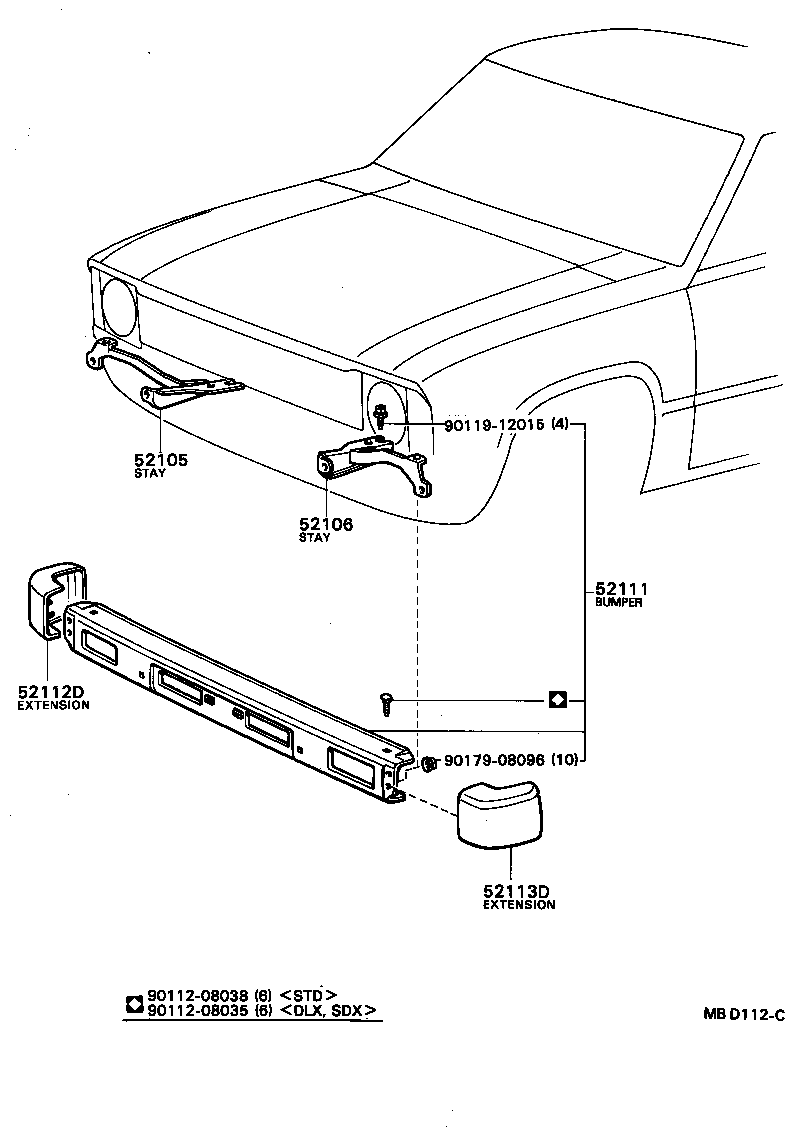

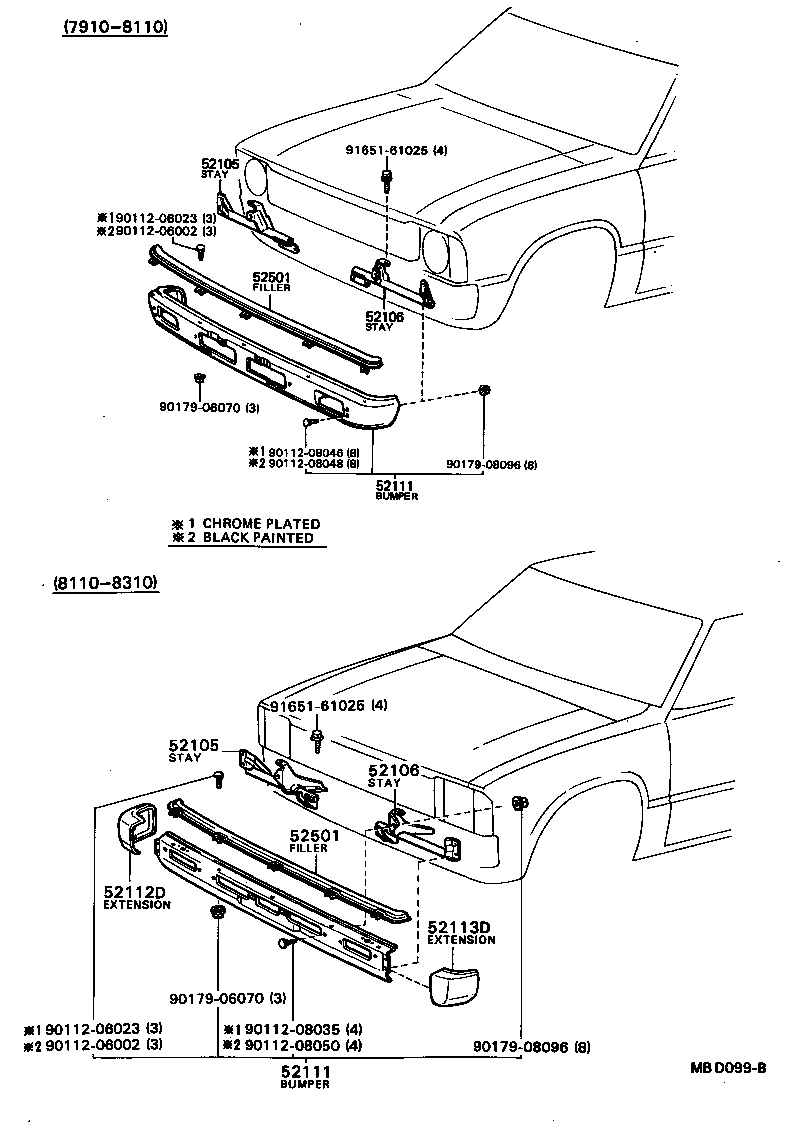

Figure MB8061G MB8061G 1978-08 → 1981-10 Figure MBD112C MBD112C 1981-10 → — Figure MBD099B MBD099B 1979-10 → 1983-10

Part groups

PNCDescription
52105 Stay Sub-assy, Front Bumper, RH
52106 Stay Sub-assy, Front Bumper, LH
52111 Bumper Assy, Front
52112D Extension, Front Bumper, RH
52113D Extension, Front Bumper, LH
52501 Filler Sub-assy, Front Bumper
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
