Toyota Hilux

1978-08 → 1988-09 · chassis RN3#,4#,LN3#,4# · catalogue 671130 · Japan

Discontinued model Data version 1989-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Fender Apron & Dash Panel

16 part groups · 2 illustrations

Illustrations

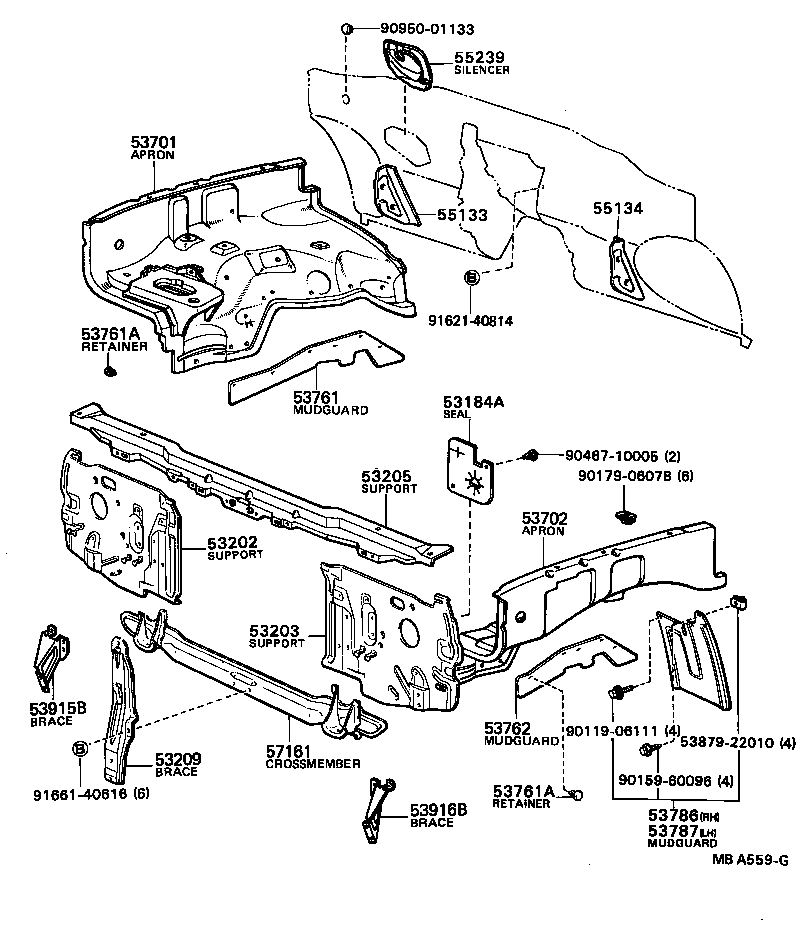

Figure MB8069K MB8069K 1978-08 → — Figure MBA559G MBA559G 1979-10 → 1983-10

Part groups

PNCDescription
53184A Seal, Headlamp Cover, LH
53202 Support Sub-assy, Radiator, RH
53203 Support Sub-assy, Radiator, LH
53205 Support Sub-assy, Radiator, Upper
53209 Brace Sub-assy, Hood Lock
53465 Bracket,Washer Tank
53701 Apron Sub-assy, Front Fender, RH
53702 Apron Sub-assy, Front Fender, LH
53761 Mudguard, RH
53761A Retainer(FOR MUDGUARD)
53762 Mudguard, LH
53915B Brace, Valance Panel TO Radiator Support, RH
53916B Brace, Valance Panel TO Radiator Support, LH
55133 Plate, Front Fender Apron Set, Lower RH
55134 Plate, Front Fender Apron Set, Lower LH
55239 Silencer, Steering Column Hole Cover
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
