Toyota Hilux

1978-08 → 1988-09 · chassis RN3#,4#,LN3#,4# · catalogue 671130 · Japan

Discontinued model Data version 1989-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Seat Belt

9 part groups · 2 illustrations

Illustrations

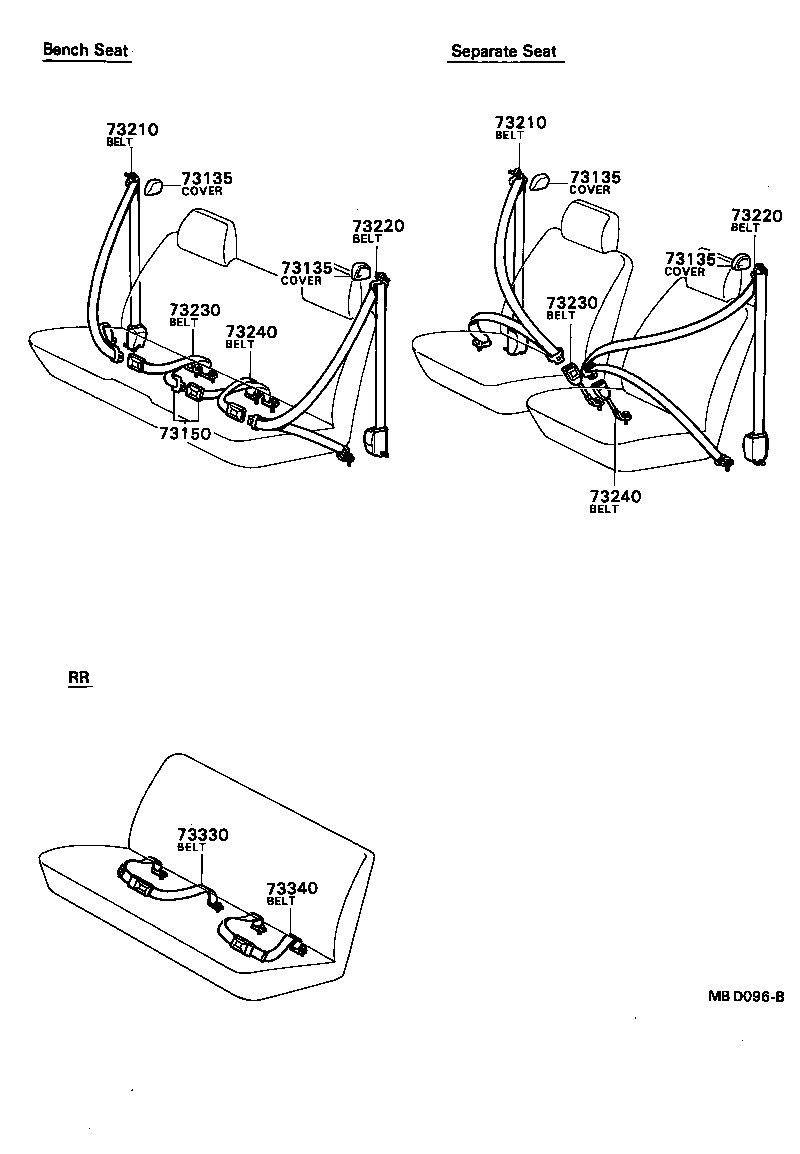

Figure MB8121E MB8121E 1978-08 → 1981-10 Figure MBD096B MBD096B 1981-10 → —

Part groups

PNCDescription
73135 Cover, Shoulder Belt Anchorage Plate
73150 Belt Assy, Front Seat Lap Type, Center
73210 Belt Assy, Front Seat Outer, RH
73210B Cap (FOR FRONT SEAT OUTER BELT)
73220 Belt Assy, Front Seat Outer, LH
73230 Belt Assy, Front Seat Inner, RH
73240 Belt Assy, Front Seat Inner, LH
73330 Belt Assy, Rear Seat Lap Type, RH
73340 Belt Assy, Rear Seat Lap Type, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
