Toyota Hilux
1978-08 → 1988-09 · chassis RN3#,4#,LN3#,4# · catalogue 671130 · Japan
Discontinued model
Data version 1989-01

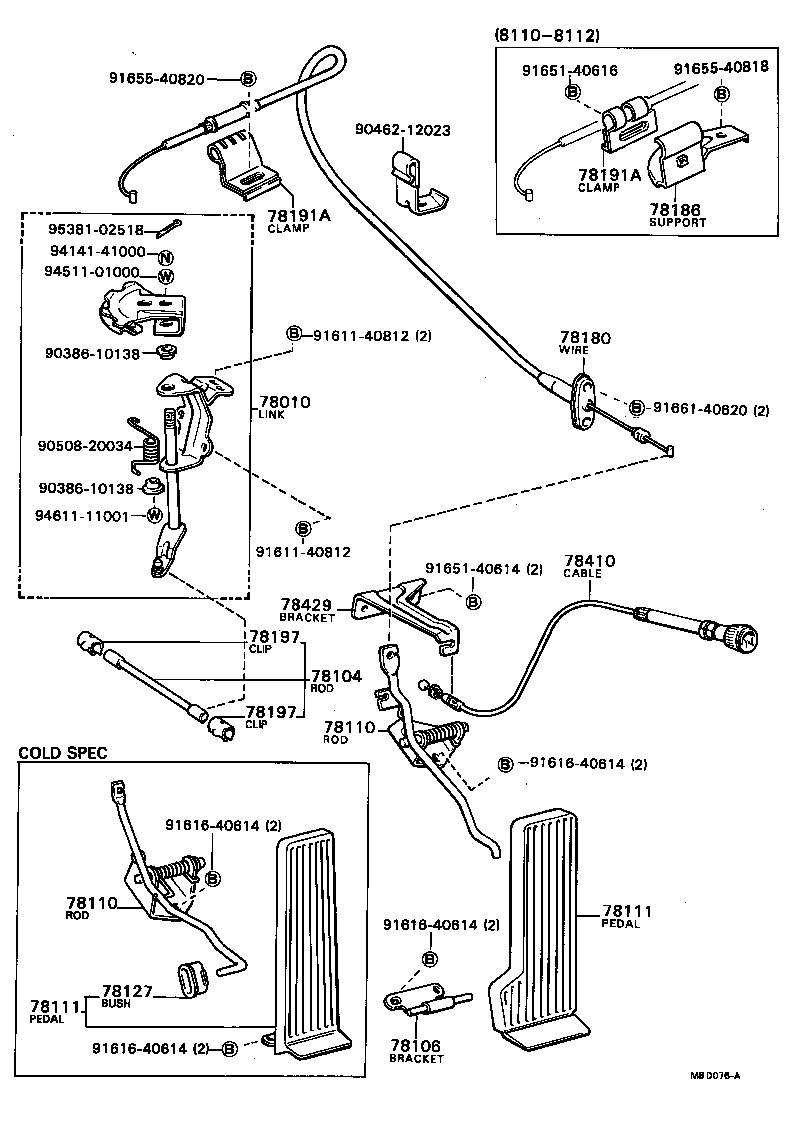

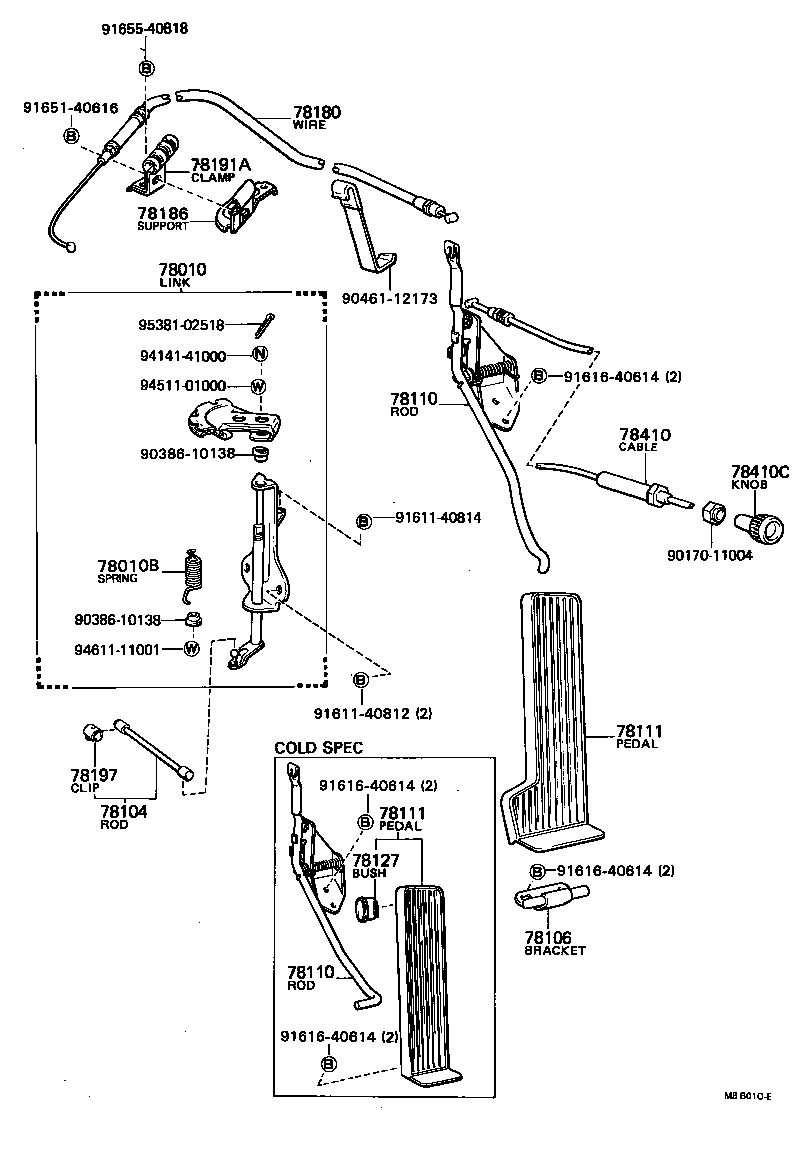

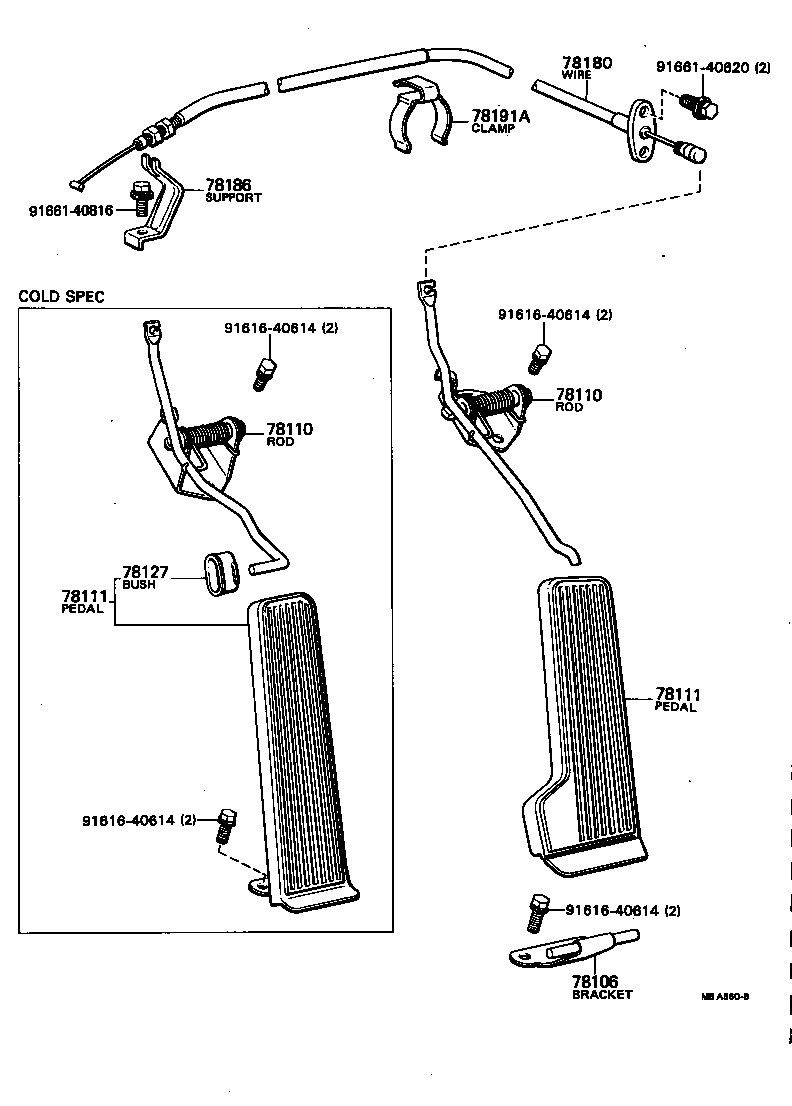

Accelerator Link
19 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 78010 | Link, Accelerator |
| 78010B | Spring, Torsion (FOR ACCELERATOR LINK) |
| 78104 | Rod Sub-assy, Accelerator Connecting, NO.2 |
| 78106 | Bracket Sub-assy, Accelerator Pedal Support |
| 78110 | Rod Assy, Accelerator Pedal |
| 78111 | Pedal, Accelerator |
| 78127 | Bush, Accelerator Pedal, NO.2 |
| 78130 | Bellcrank Assy, Accelerator |
| 78180 | Wire Assy, Accelerator |
| 78186 | Support, Accelerator Control Cable, NO.1 |
| 78191A | Clamp (FOR ACCELERATOR WIRE SET) |
| 78197 | Clip, Accelerator Joint Ball |
| 78310 | Cable Assy, Choke |
| 78310A | Grommet, Choke Cable |
| 78310B | Clamp, Choke Cable |
| 78311 | Knob, Choke Control Cable |
| 78410 | Cable Assy, Throttle Control |
| 78410C | Knob, Throttle Cable |
| 78429 | Bracket, Throttle Rod |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
