Toyota Hilux
1978-08 → 1988-09 · chassis RN3#,4#,LN3#,4# · catalogue 671130 · Japan
Discontinued model
Data version 1989-01
Wiring & Clamp
21 part groups · 5 illustrations
Part groups
| PNC | Description |
|---|---|
| 82001 | Cable, Bond, NO.1 |
| 82031 | Wire Sub-assy, Ignition Coil |
| 82050 | Wire Assy, Engine |
| 82124 | Wire, Engine, NO.4 |
| 82131 | Wire, Cowl |
| 82141 | Wire, Instrument Panel |

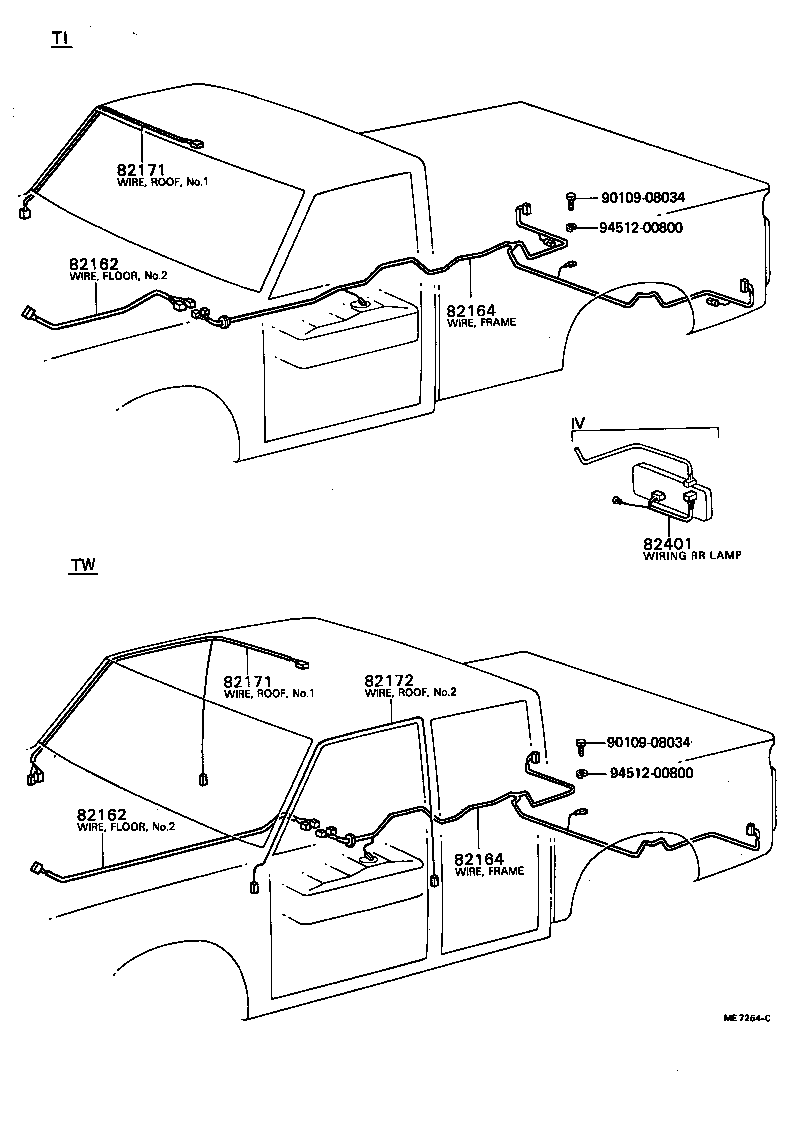

| 82162 | Wire, Floor, NO.2 |
| 82164 | Wire, Frame |
| 82171 | Wire, Roof, NO.1 |
| 82172 | Wire, Roof, NO.2 |
| 82210C | Fusible Link |
| 82210D | Fusible Link |
| 82210E | Fusible Link |
| 82219 | Wire, Thermo Sensor |
| 82259 | Wire, Distributor |
| 82272 | Wire, Ammeter |
| 82272A | Wire, Voltmeter |
| 82310 | Wiring Assy, TO Back UP Lamp Switch |
| 82371 | Wire, Wiper Relay |
| 82401 | Wiring, Rear Combination Lamp |
| 82823 | Cap, Terminal, NO.1 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
