Toyota Hilux

1978-08 → 1988-09 · chassis RN3#,4#,LN3#,4# · catalogue 671130 · Japan

Discontinued model Data version 1989-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Compressor

16 part groups · 3 illustrations

Illustrations

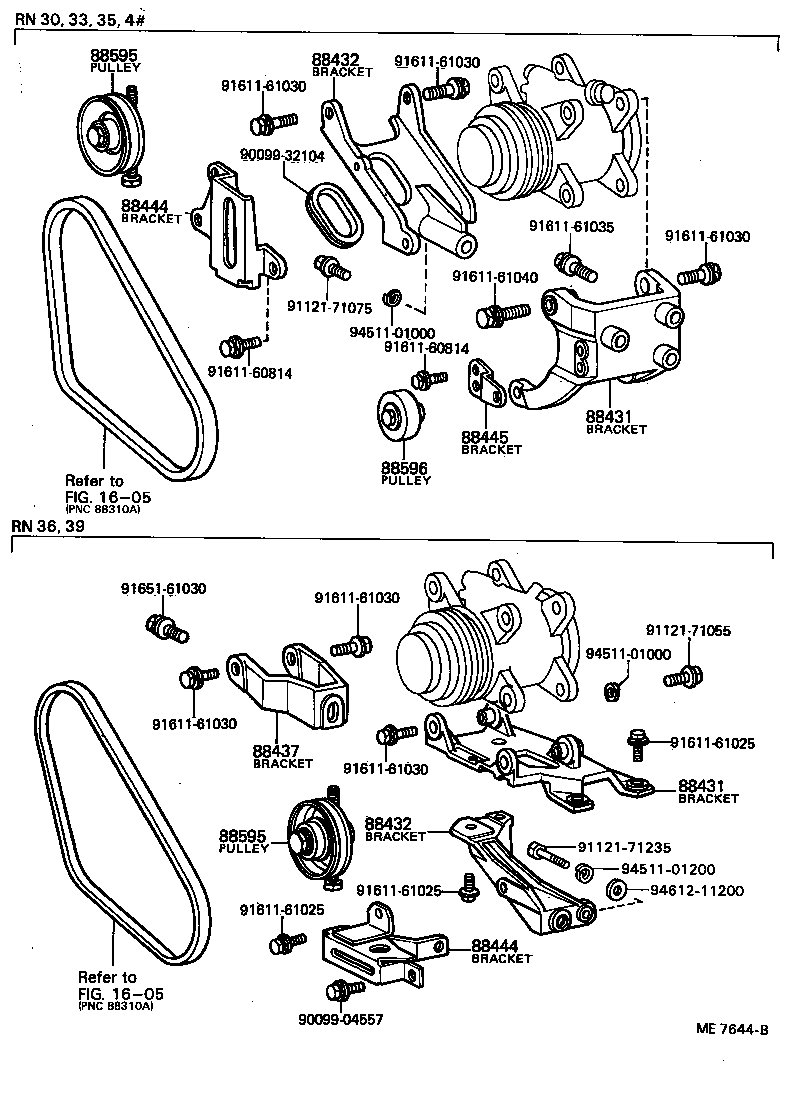

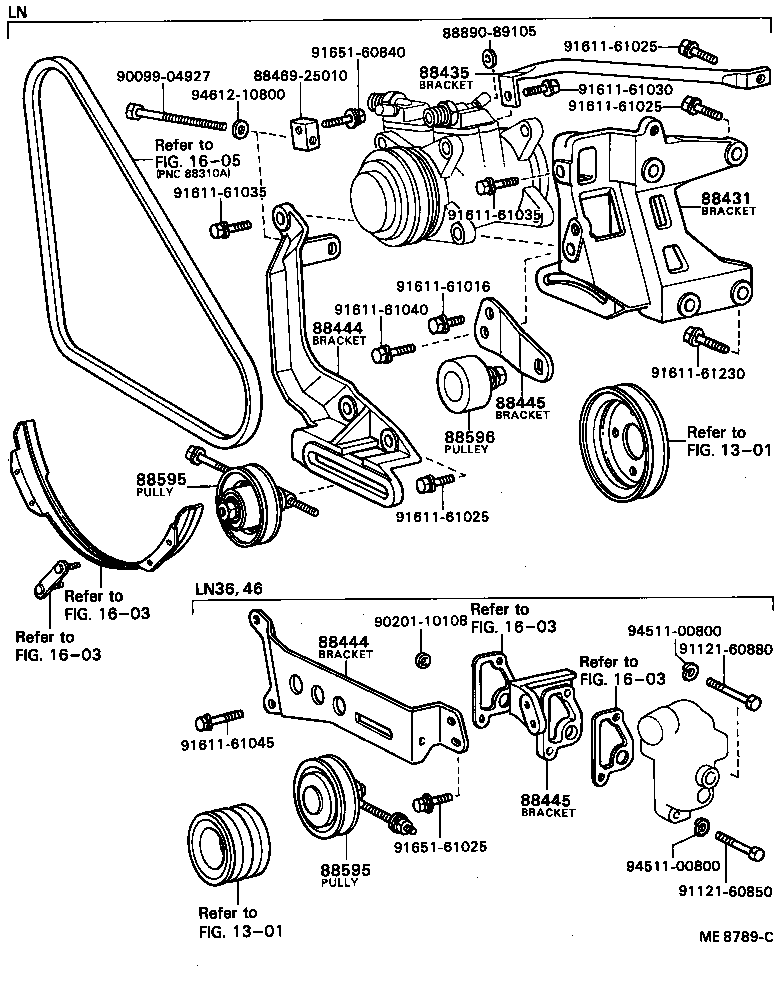

Figure ME7634A ME7634A 1978-08 → — Figure ME7644B ME7644B 1979-10 → — Figure ME8789C ME8789C 1979-12 → —

Part groups

PNCDescription
88301 Rotor Sub-assy, Magnet Clutch
88302 Stator Sub-assy, Magnet Clutch
88320 Compressor Assy, Cooler
88330 Clutch Assy, Magnet
88330B Bearing, Magnet Clutch
88330C Ring, Snap (FOR MAGNET CLUTCH)
88403 Hub Sub-assy, Magnet Clutch
88431 Bracket, Compressor Mounting, NO.1
88432 Bracket, Compressor Mounting, NO.2
88435 Bracket, Compressor Mounting, NO.5
88437 Bracket, Compressor Mounting, NO.7
88444 Bracket, Idle Pulley
88445 Bracket, Idle Pulley
88595 Pulley, Cooler Compressor Idle
88596 Pulley Assy, Idle, NO.2
88648F Wire, Magnet Clutch
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
