Toyota Hilux
1983-11 → 1989-03 · chassis YN5#,6#,LN5#,6# · catalogue 671140 · Japan
Discontinued model
Data version 1989-06
Manifold Air Injection System

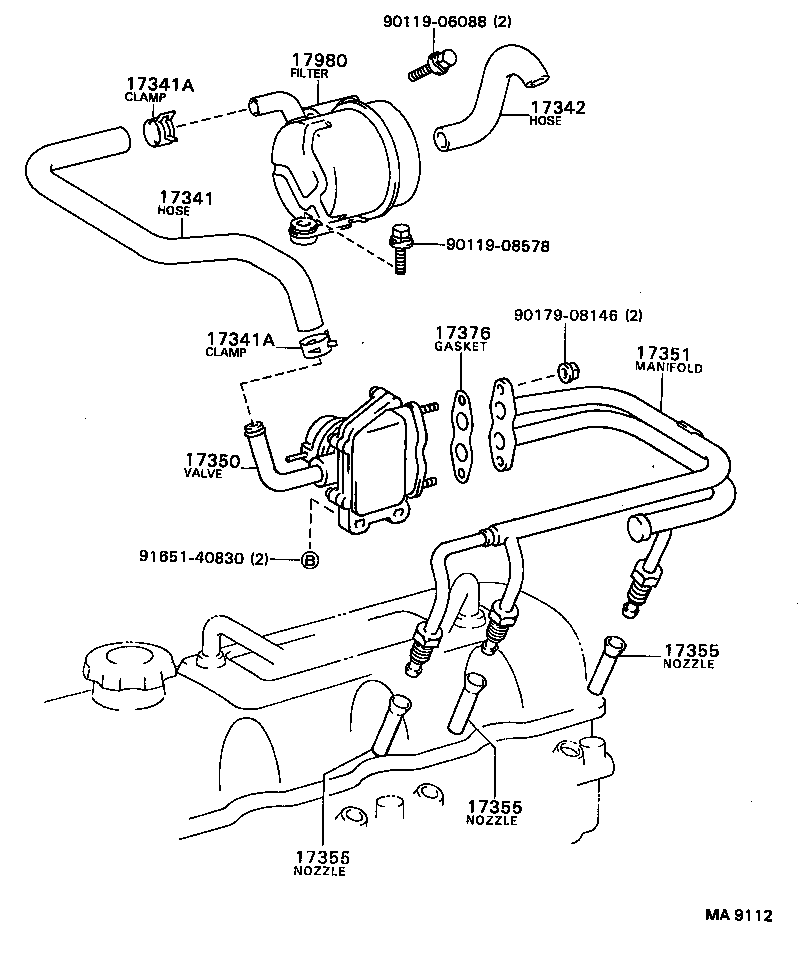

8 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 17341 | Hose, NO.1(FOR AIR INJECTION SYSTEM) |
| 17341A | Clamp OR Clip, NO.1(FOR AIR INJECTION SYSTEM HOSE, NO.1) |
| 17342 | Hose, NO.2(FOR AIR INJECTION SYSTEM) |
| 17350 | Valve Assy, Reed |
| 17351 | Manifold, Air Injection |
| 17355 | Nozzle, Air Injection |
| 17376 | Gasket, Air Tube, NO.1 |
| 17980 | Filter Assy, Air Suction |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
