Vacuum Piping

20 part groups · 8 illustrations

Illustrations

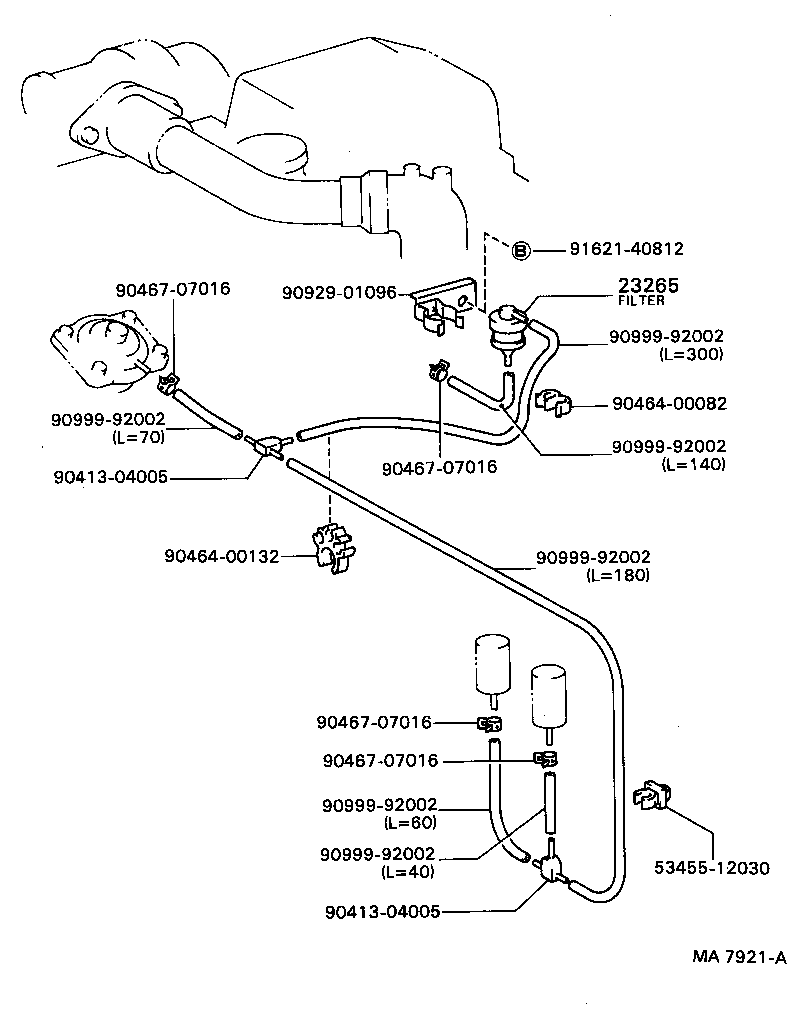

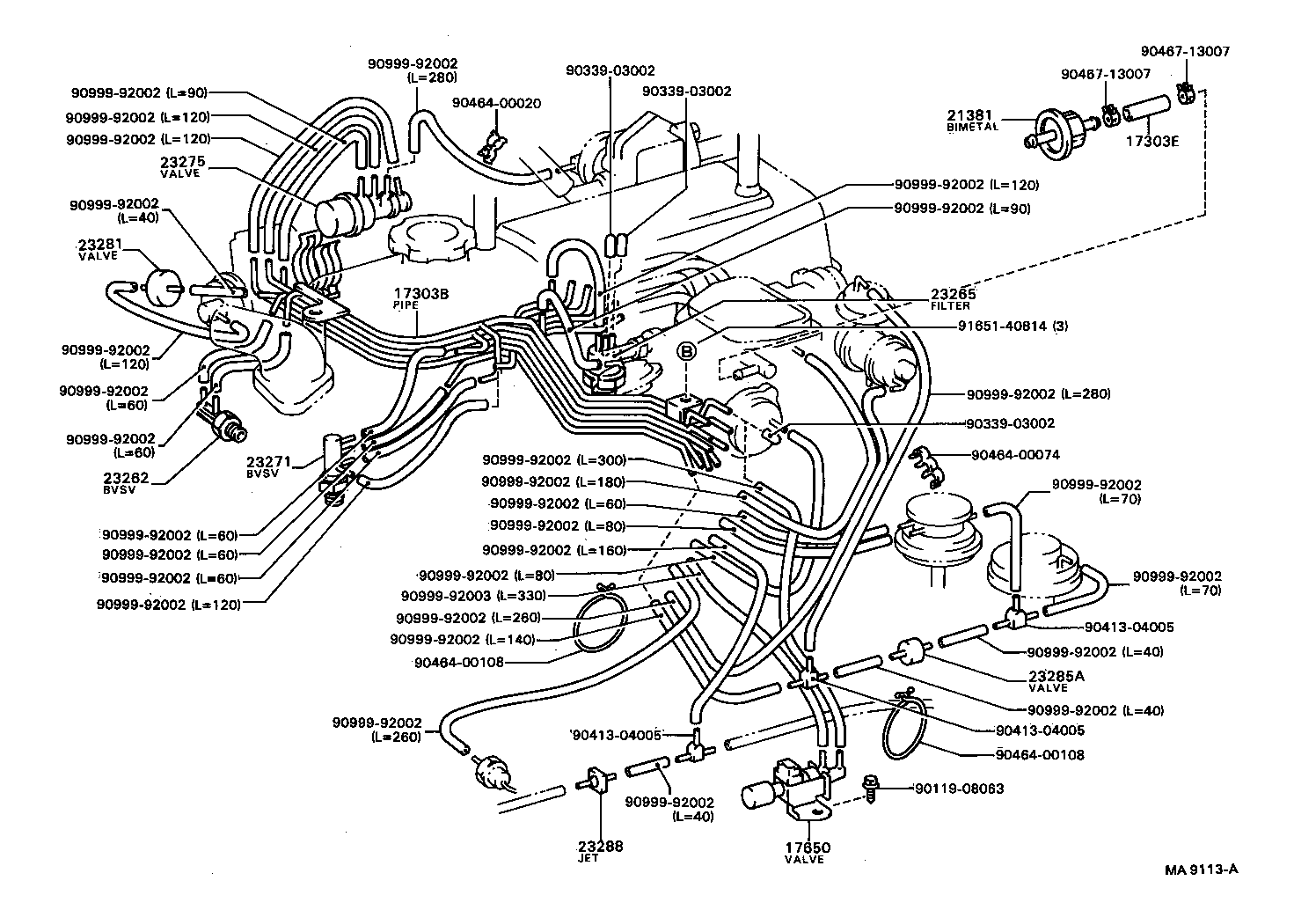

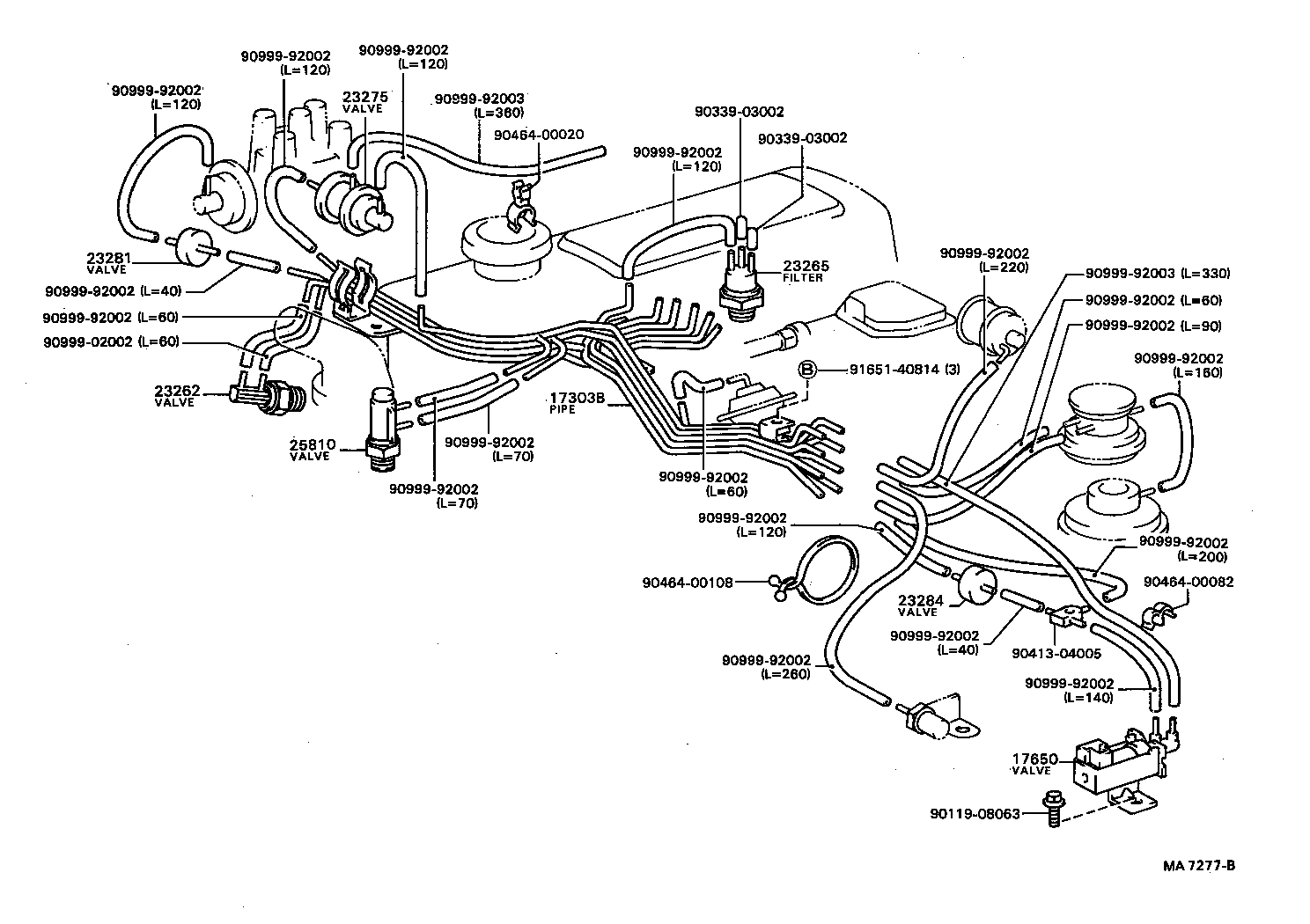

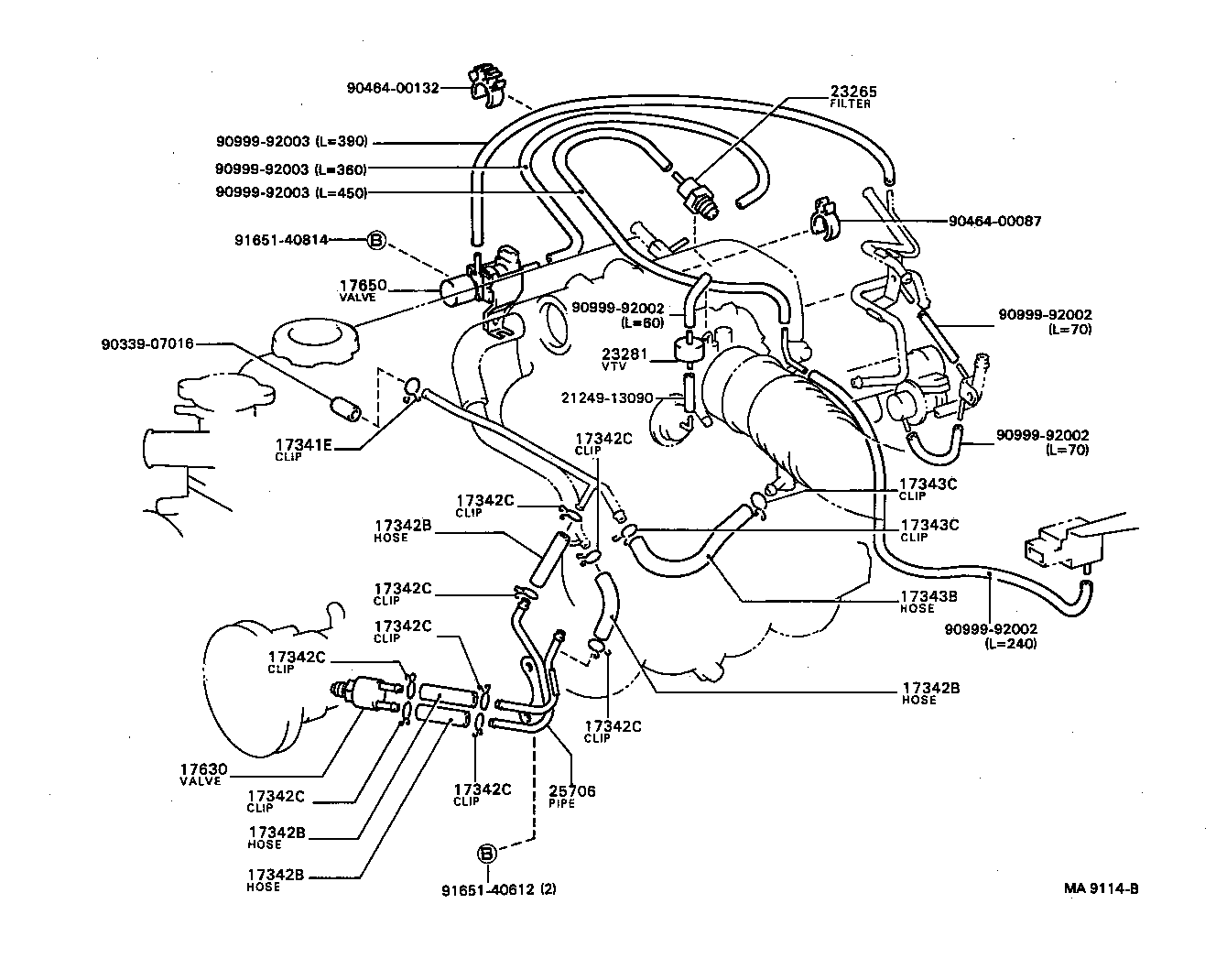

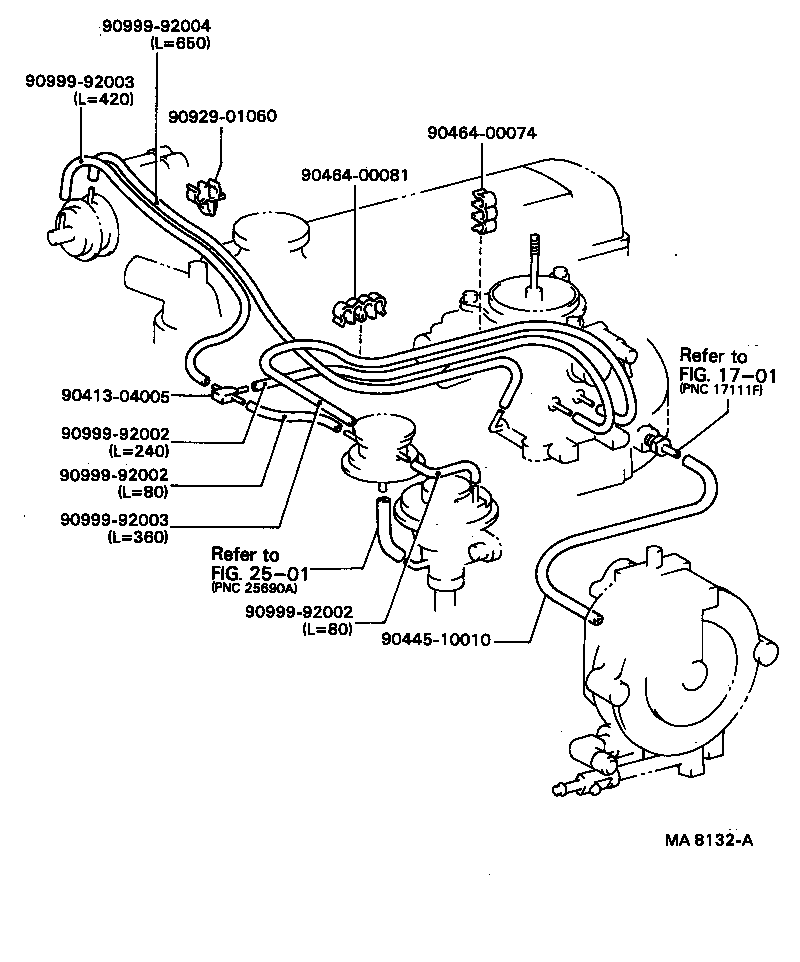

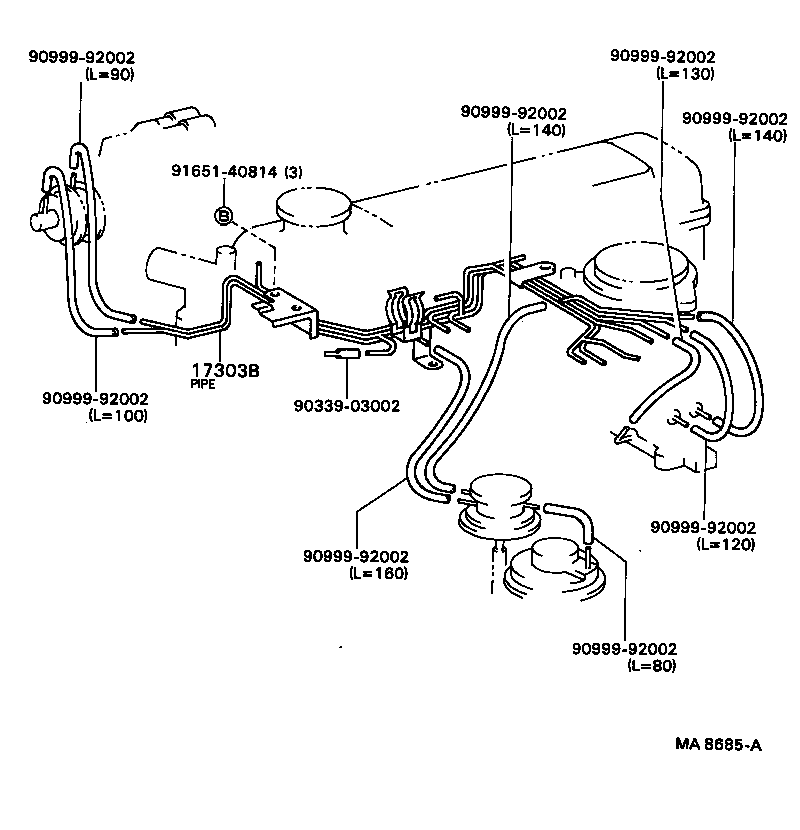

Figure MA9503A MA9503A 1983-11 → — Figure MA7921A MA7921A 1984-11 → — Figure MA9503A MA9503A 1983-11 → — Figure MA7277B MA7277B 1983-11 → 1986-08 Figure MA9113A MA9113A 1986-08 → — Figure MA9114B MA9114B 1986-08 → — Figure MA8132A MA8132A 1984-11 → 1985-02 Figure MA8685A MA8685A 1985-02 → 1988-08

Part groups

PNCDescription
17303B Pipe Sub-assy, Air, NO.1
17303E Hose, NO.1(FOR AIR PIPE)
17341E Clip, NO.1(FOR IDLE-UP HOSE)
17342B Hose, NO.2(FOR IDLE-UP)
17342C Clip, NO.2(FOR IDLE-UP HOSE)
17343B Hose, NO.3(FOR IDLE-UP)
17343C Clip, NO.3(FOR IDLE-UP HOSE)
17630 Valve Assy, Air Control
17650 Valve Assy, Vacuum Switching
21381 Bimetal, Thermostatic
23262 Valve, Bimetal Vacuum Switching, NO.1
23265 Filter, Gas, NO.1
23271 Valve, Thermostatic Vacuum Switching, NO.1
23275 Valve, Vacuum Control, NO.1
23281 Valve, Vacuum Transmitting, NO.1
23284 Valve, Vacuum Transmitting, NO.4
23285A Valve, Check, NO.1
23288 Jet, NO.1
25706 Pipe Sub-assy, Vacuum Transmitting, NO.1
25810 Valve Assy, Bimetal
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
