Toyota Hilux
1983-11 → 1989-03 · chassis YN5#,6#,LN5#,6# · catalogue 671140 · Japan
Discontinued model
Data version 1989-06

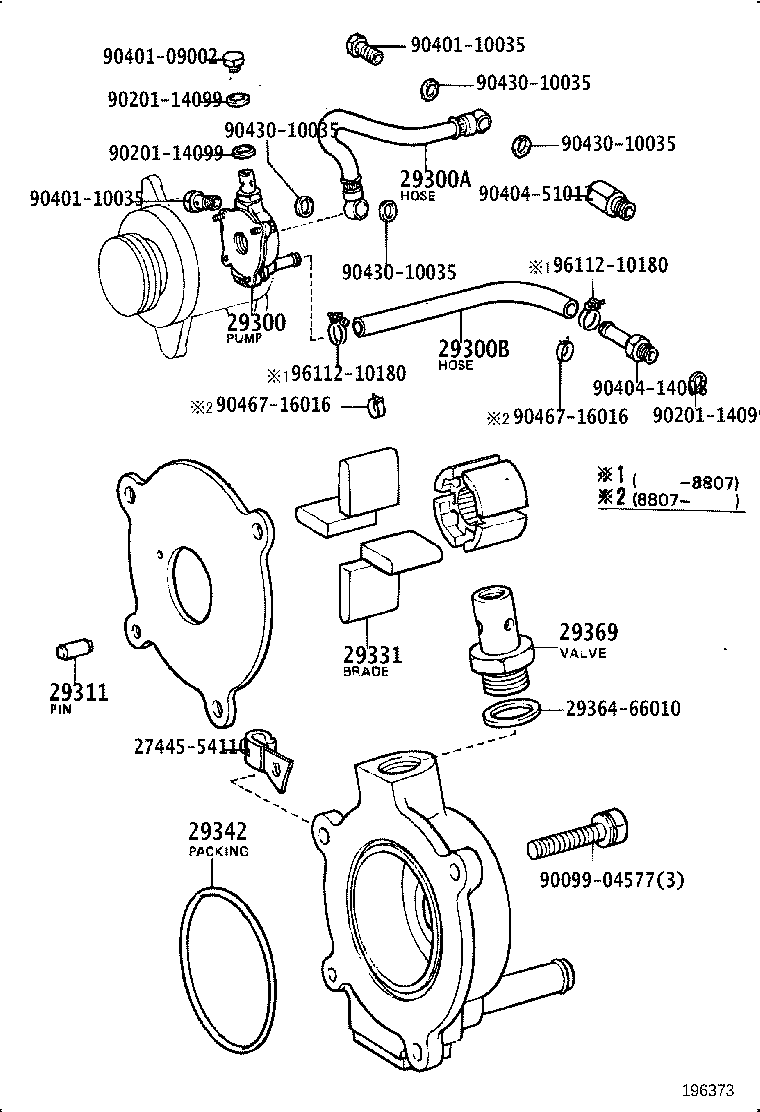

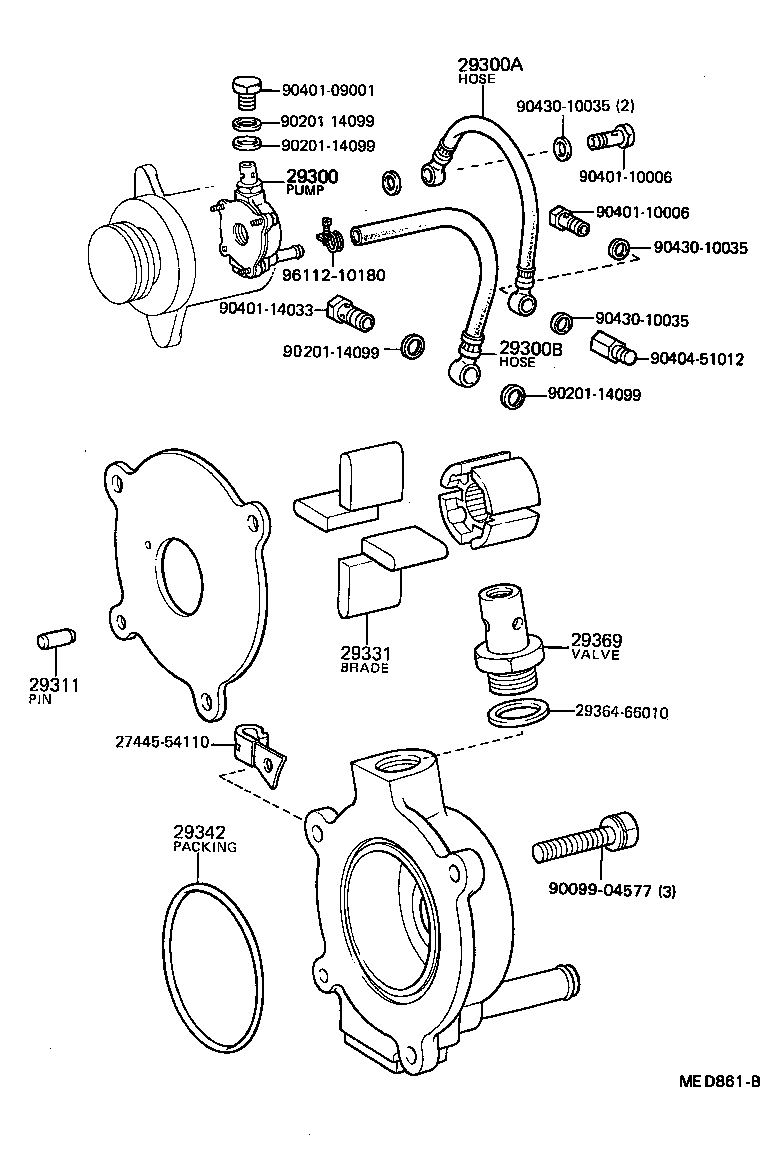

Vacuum Pump
8 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 29300 | Pump Assy, Vacuum |
| 29300A | Hose, Vacuum Pump Oil Inlet |
| 29300B | Hose, Vacuum Pump Oil Outlet |
| 29311 | Pin, Vacuum Pump Dowel, NO.1 |
| 29322A | Seal, Vacuum Pump Oil |
| 29331 | Blade, Vacuum Pump, A |
| 29342 | Packing, Vacuum Pump |
| 29369 | Valve Sub-assy, Check |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
