Factory parts data · Europe

Toyota Hilux

1983-11 → 1989-03 · chassis YN5#,6#,LN5#,6# · catalogue 671140 · Japan

Discontinued model Data version 1989-06

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Radiator Grille

4 part groups · 2 illustrations

Illustrations

Figure MBF975C

MBF975C 1983-11 → 1986-08

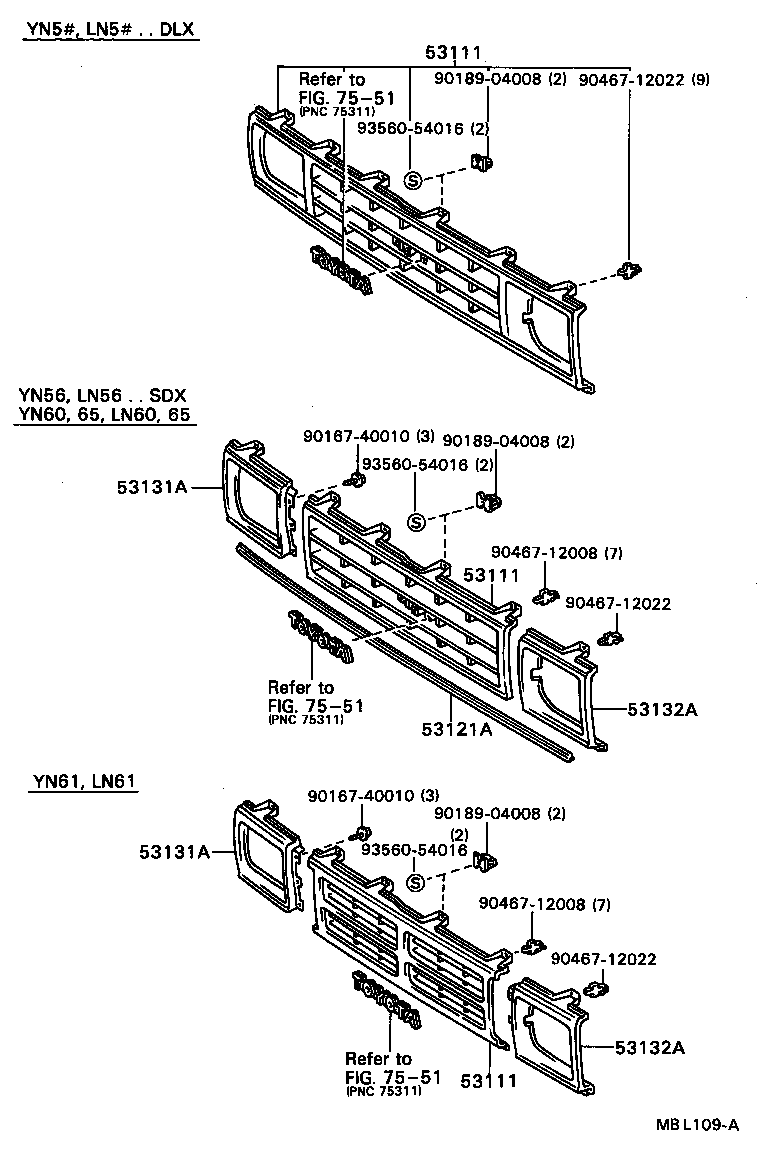

Figure MBL109A

MBL109A 1986-08 → —

Part groups

PNC	Description
53111	Grille, Radiator
53121A	Moulding, Radiator Grille
53131A	Door, Headlamp, RH
53132A	Door, Headlamp, LH

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
